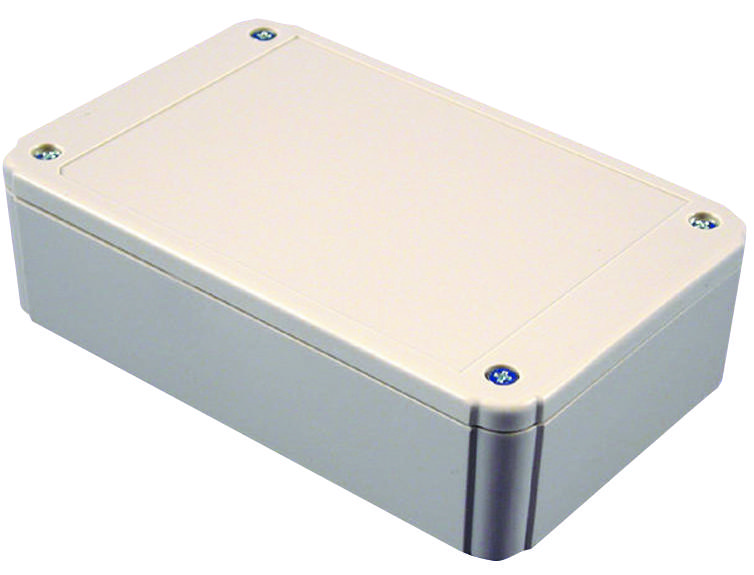

Hammond Manufacturing RL6435 Electronic Enclosure
The RL Series hand-held and wall-mount electronic instrument enclosures offer durable, light grey ABS plastic housing with IP54 and IP65 ratings, designed to protect printed circuit boards from dust, water, and mechanical impact. The two-piece clam shell construction includes molded-in standoffs and recessed areas for membranes or labels, with interchangeable front and rear panels for customization. Suitable for easy assembly, disassembly, and modifications, these enclosures cater to applications requiring reliable protection and ergonomic design for user comfort.
Hammond Manufacturing RL6435 Electronic Enclosure Specifications:
- Material: general purpose ABS plastic with UL94 HB flammability rating
- Colors available: Light grey, off white (polycarbonate version)
- Construction: Two-part clam shell with tongue and groove design
- Protection Rating: IP54 for hand-held models, IP65 for DIN rail models
- Includes molded-in P.C. board standoffs for easy assembly
- Hardware: M3 or M4 self-tapping or machine screws, stainless steel bushings included
- Recessed areas for membranes, labels, or silkscreen
- Dimensions vary per model, typical width/height approx. 25-70 mm
- Gasketed lid for water and dust resistance, field-installed gasket
- Internal mounting options include DIN rail tabs and P.C. board guides
- Design suitable for mounting printed circuit boards and DIN rail components
- UL flammability rating: UL94 HB
- Field install gasket for sealed units, ensuring compliance with IP65 and IP54 standards
- Versatile for electronic instrumentation with ergonomic, compact housing
Buy the Hammond Series RM: Electronic Enclosure for PC Boards: RL6435
Order the Hammond RL6435 electronic enclosure online today for optimal PCB protection, IP65 water resistance, and ergonomic design. Crafted from durable ABS or polycarbonate, these housings feature easy-to-access panels, molded-in standoffs, and gasketed lids for dust and water resistance. Perfect for mounting printed circuit boards or DIN rail components, they ensure reliable performance in various environments. With quick assembly, customizable options, and high-quality stainless steel hardware, these enclosures deliver both versatility and long-lasting durability for your electronic projects.
Get Hammond RL6435 today—crafted for reliable electronic protection and easy assembly in demanding applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RL6435?
You can click on the BUY or RFQ button to purchase RL6435 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RL6435?
You can download the RL6435 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RL6435?
Hammond Manufacturing
