Hammond Manufacturing RMCV190313BK1 Rack Enclosure
The RMCV190313BK1 is an economy rack chassis crafted from lightweight aluminum, specifically type 5050 H32, allowing for easy modifications. This RMC-series rack chassis features all machine screw and PEM nut construction, making it ideal for applications requiring frequent assembly and disassembly. It provides easy internal access by removing only four screws from any of the six panels. The design is knockdown, shipped unassembled for convenient handling and shipping protection. Ventilated top or bottom options are available, suitable for industrial and electronics enclosure use.
Hammond Manufacturing RMCV190313BK1 Rack Enclosure Specifications:
- Material: Aluminum type 5050 H32
- Panel Thickness: Side panels 0.125" (3.2 mm), front & rear panels 0.064" (1.6 mm), top & bottom panels 0.062" (1.6 mm)
- Construction: Machine screw & PEM nut construction
- Design: Knockdown, shipped unassembled
- Access: Internal panels secured with only four screws for quick access
- Finish: Rugged satin texture black powder paint
- Ventilation: Vented top/bottom versions available
- Dimensions: Overall width 17.00", height varies with rack unit options from 3U to 6U, depth approximately 13.00", mounting dimensions compatible with standard rack sizes
- Weight: Lightweight design for easy handling

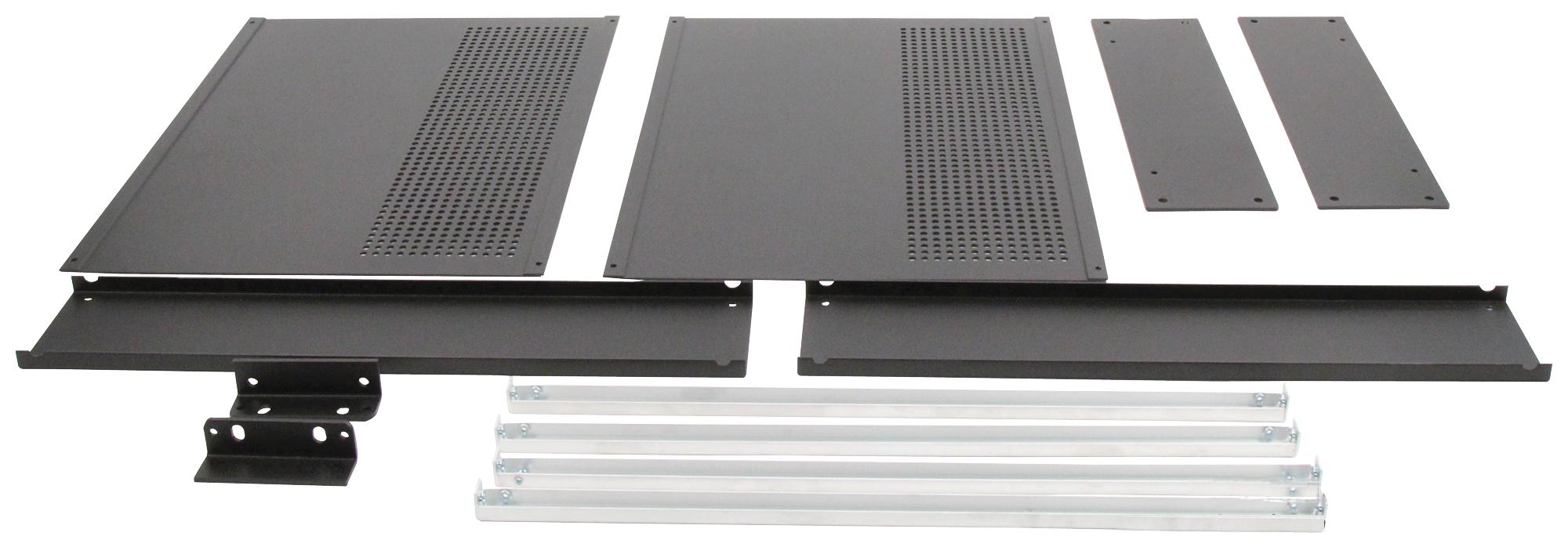

Buy the Hammond Series RMC Rack-Mounted Enclosure: RMCV190313BK1
Order the Hammond Rack Enclosure today for reliable industrial and electronic applications. Crafted from lightweight aluminum, it features easy screw assembly, removable panels, and vented options. Its knockdown design ensures simple shipping and handling, making it ideal for environments requiring frequent access or modifications. Suitable for 3U to 6U rack units, with durable black powder coat finish, this enclosure offers robust protection and versatility. Purchase online now for quick, secure delivery designed to meet demanding professional standards and enhance your equipment setup.
Get Hammond RMCV190313BK1 today—designed for durable industrial use with easy assembly and versatile mounting options.
