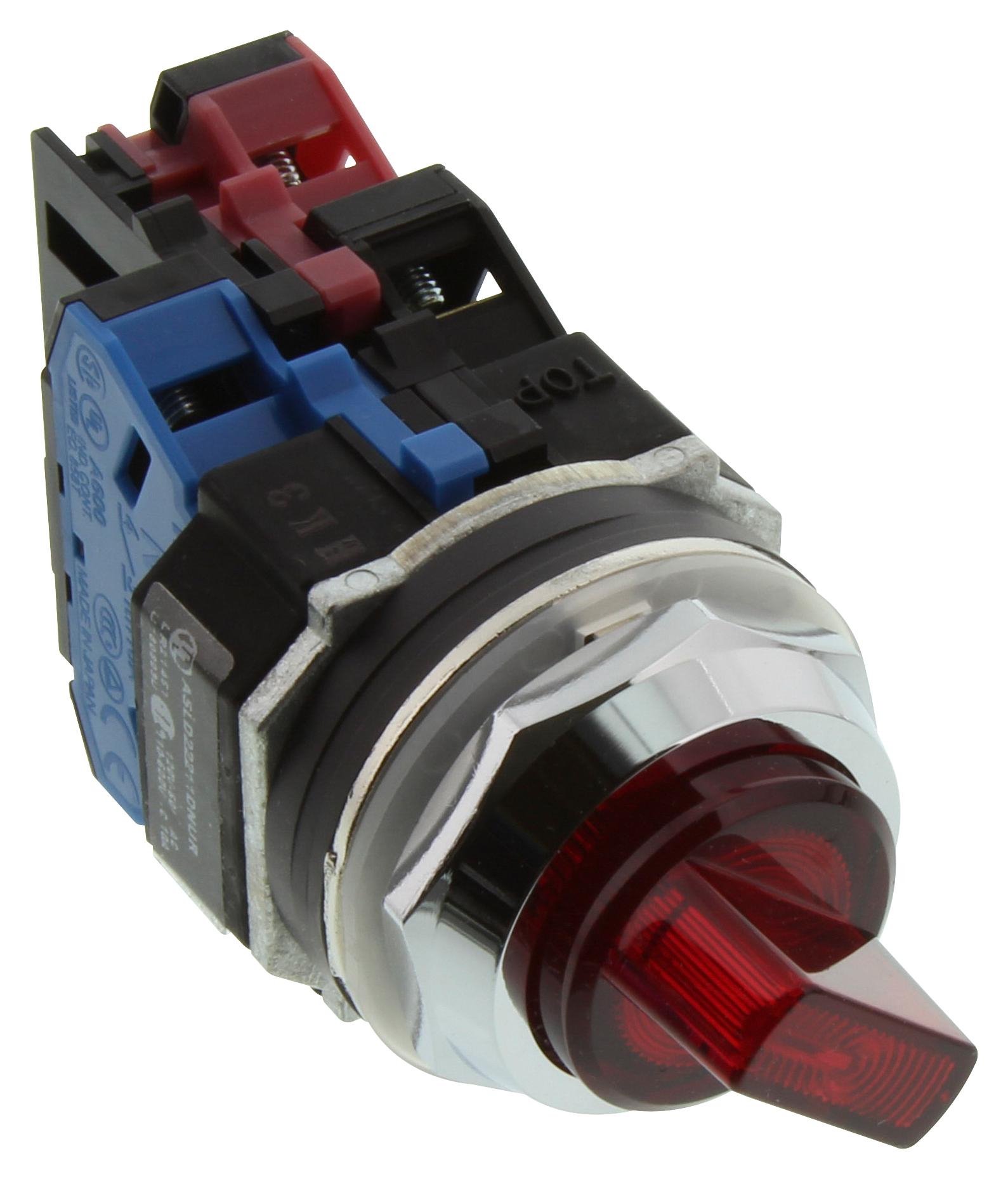

IDEC Corporation ASLD22211DNUR Full Size Industrial Switch
The illuminated switch features a rugged design with full voltage and transformer models, offering LED illumination, various contact configurations, and IP65 watertight construction. Made with chrome-plated zinc, self-cleaning contacts, and die-cast zinc mounting threads, it is ideal for industrial applications requiring durability and flexibility. The switch includes options for different button sizes up to 2 9/16” (65mm), chrome locking rings, and modular construction for customized setups. Certifications include UL Type 4X, 13, IP65, suitable for diverse environments.
IDEC Corporation ASLD22211DNUR Full Size Industrial Switch Specifications:
- Series: TWND
- Button Sizes: Up to 2 9/16 inches (65mm)
- Construction: Chrome-plated zinc, die-cast zinc, steel anti-rotation rings
- Contacts: Self-cleaning, slow make, double break wiping contacts
- Illumination: LED in full voltage and transformer models
- Protection: UL Type 4X, 13, IP65 watertight/oiltight panel
- Operating Temperature: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Vibration Resistance: IEC60068-2-6, 10g, 5-55Hz
- Shock Resistance: IEC80068-2-27, 100g/980m/sec
- Electrical Ratings: Rated thermal current 10A, dielectric strength 25kV AC, 1 min
- Ingress Protection: UL Type 4X, 13, IP65
- Standards Compliance: EN60947-5-1, ULE08, CSA C22-2 No.14
- Mounting: Panel mounting with die-cast zinc threads, anti-rotation rings
Buy the Buy IDEC Full Size Industrial Switch Part Number ASLD22211DNUR Online
Discover the high-performance IDEC full size industrial switch, featuring IP65 protection, LED illumination, and robust construction with chrome-plated zinc and self-cleaning contacts. Its modular design allows flexible configurations with various button sizes up to 2 9/16 inches (65mm) and optional chrome locking rings for secure mounting. Certified UL Type 4X, 13, and IP65, it ensures dependable operation in harsh environments. Ideal for industrial automation, process control, and manufacturing applications needing durable, customizable, and waterproof control components.
Buy IDEC ASLD22211DNUR now and experience unmatched durability and reliable industrial control performance.
Frequently Asked Questions
Where can I buy IDEC Corporation ASLD22211DNUR?
You can click on the BUY or RFQ button to purchase ASLD22211DNUR from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part ASLD22211DNUR?
You can download the ASLD22211DNUR datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of ASLD22211DNUR?
IDEC Corporation
