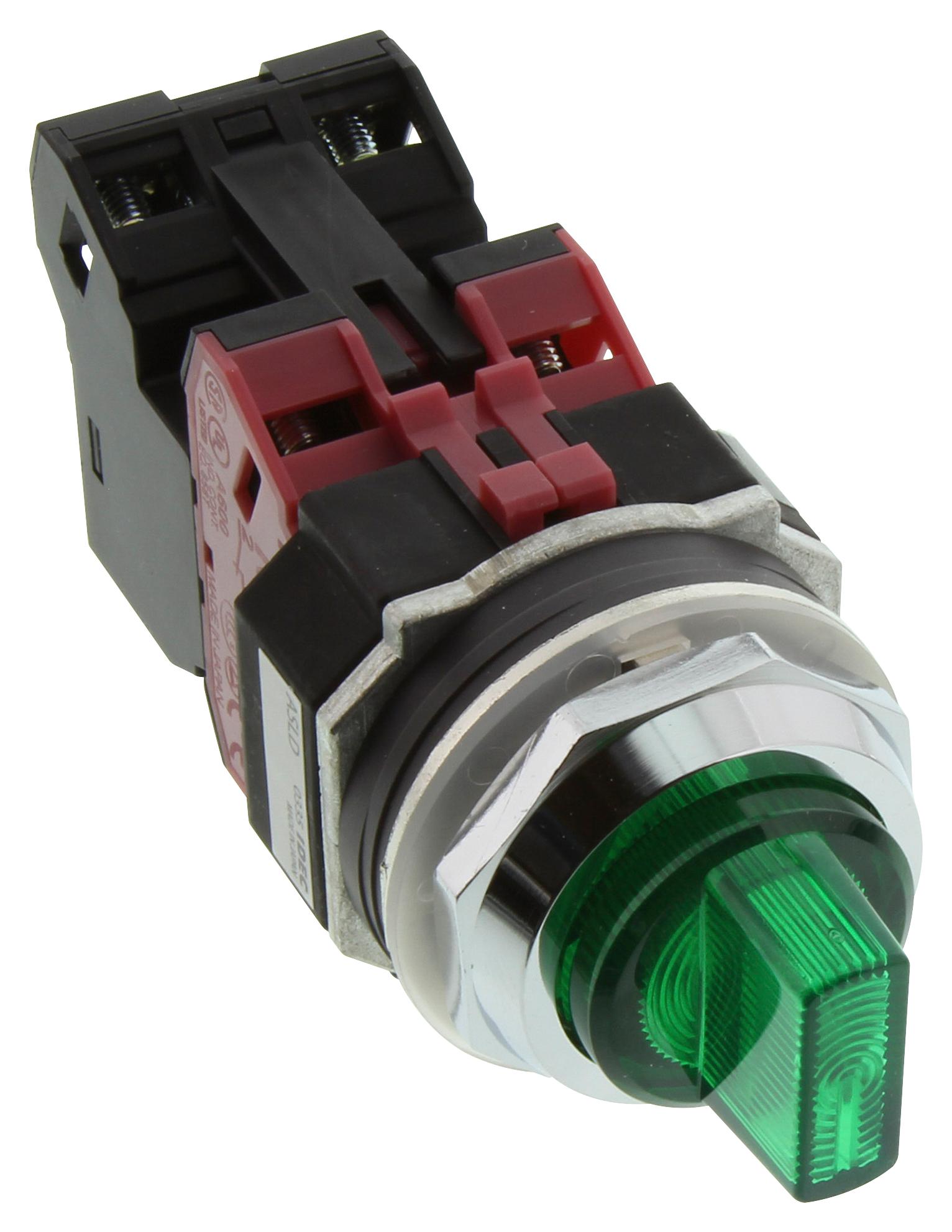

IDEC Corporation ASLD3313602DNUG Illuminated Selector Switch
The product is a 3-Position Illuminated Selector Switch with maintained and spring return options, featuring a full voltage LED illumination circuit, IP65 watertight protection, and an aesthetic chrome-plated zinc bezel. Designed for industrial control applications, it offers a durable cast zinc housing, multi-contact configurations, and compatibility with various voltage and transformer options. Suitable for control panels requiring reliable switching with visual indication, this switch supports customization with different lens and button colors, and includes accessories such as mounting rings, keycaps, and nameplates for tailored setup and enhanced safety.
IDEC Corporation ASLD3313602DNUG Illuminated Selector Switch Specifications:
- Series: TWND
- Button Size: 40mm Mushroom
- Color Options: Amber, Green, Red, Blue, White, Yellow
- Illumination: Full Voltage LED Circult (120V, 240V, 480V, appropriate transformers included)
- Protection Class: IP65, NEMA IP65 watertight/oiltight
- Material: Die cast zinc bezel, zinc housing, chrome-plated zinc locking ring
- Electrical Ratings: AC-12 control up to 1A resistive, AC-16 control up to 7A resistive, 10Ω thermal current
- Contact Resistance: 50mΩ or less initial
- Dielectric Strength: 25kV AC for 1 min
- Operating Temperature: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Vibration Resistance: IEC 60068-2-6 compliant, 98m/sec² at 5–55Hz
- Shock Resistance: IEC 60068-2-27 compliant, 980m/sec² (100g)
- Degree of Protection: IP65 panel mounting, UL Type 4X
- Electrical Life: 5,000,000 operations (momentary), 500,000 (others)
- Contact Operation: Slow break, NC or NO, with adjustable contact force
Buy the IDEC Series TWND Illuminated Selector Switch: ASLD3313602DNUG
Order the IDEC TWND Series Illuminated Selector Switch ASLD3313602DNUG online today and equip your control panel with industry-leading durability. Featuring a 40mm mushroom button, a chrome-plated zinc bezel, and IP65 protection, this switch ensures reliable operation in harsh environments. Its full voltage LED illumination offers excellent visibility, and its versatile contact configurations support various control schemes. With options for customized colors and accessories like nameplates and mounting rings, enhance your panel setup and ensure optimal safety and function through easy online purchase.
Buy IDEC TWND Series ASLD3313602DNUG now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation ASLD3313602DNUG?
You can click on the BUY or RFQ button to purchase ASLD3313602DNUG from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part ASLD3313602DNUG?
You can download the ASLD3313602DNUG datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of ASLD3313602DNUG?
IDEC Corporation
