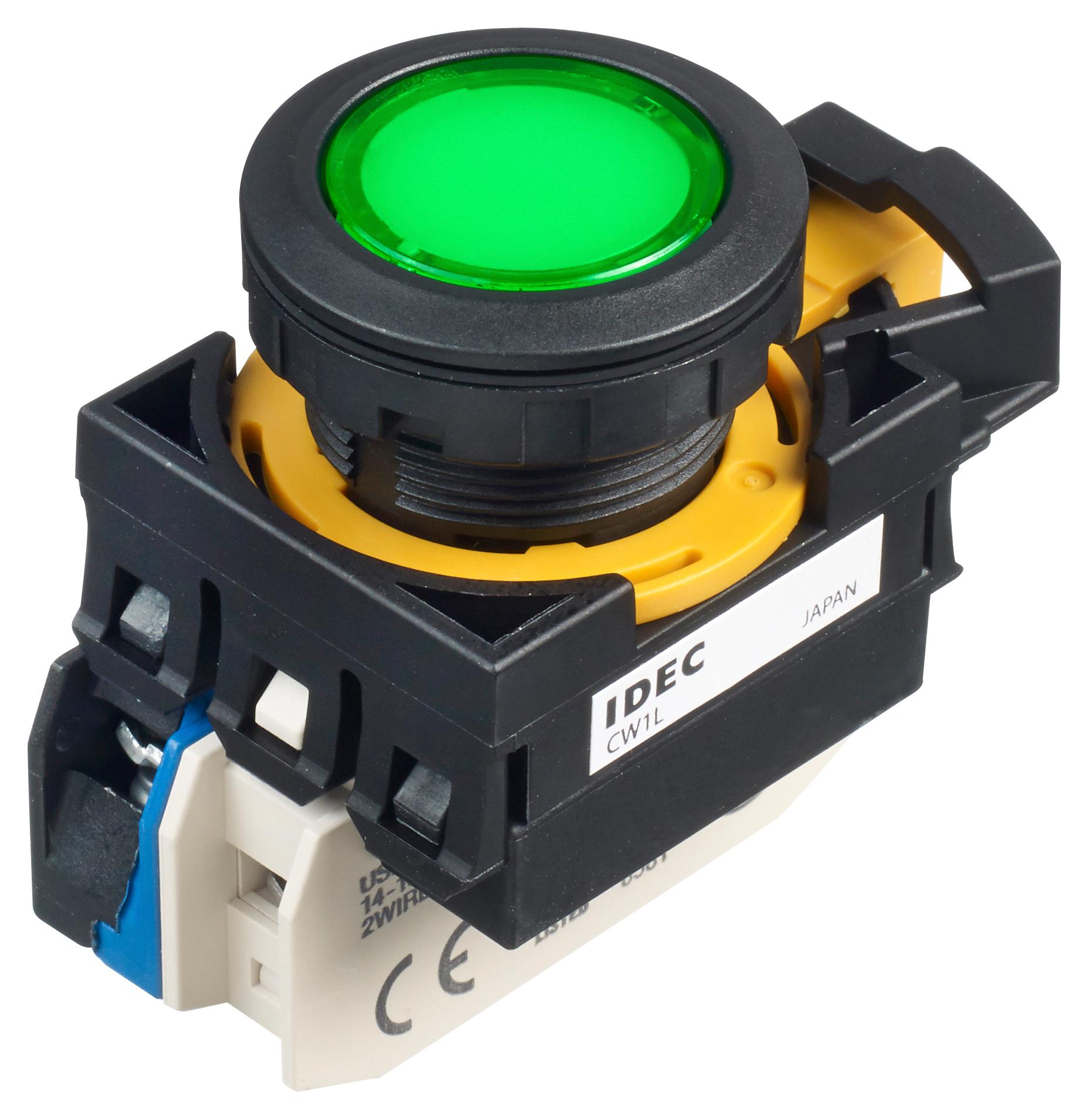

IDEC Corporation CW1LA1E10Q4G Control Switch
The CW series offers sleek, stylish switches and pilot lights with a 2.5mm-thick bezel, providing a safe, dust-resistant surface with minimal protrusions. These control units feature third-generation safety construction with a finger-safe IP20 terminal and a lockable locking lever with a guard for secure operation. The design includes a compact profile with only 2.5mm projection from the panel front and a maximum depth of 39.9mm behind the panel, compatible with IEC 60947-5-1 standards. Suitable for industrial and control panel applications, they support multiple contact configurations, including illuminated options, and are built to UL and CE standards.
IDEC Corporation CW1LA1E10Q4G Control Switch Specifications:
- Bezel Thickness: 2.5 mm
- Panel Mounting Hole: 22.3 mm IEC 60947-5-1 compliant
- Depth Behind Panel: 39.9 mm (single contact, momentary)
- Contact Rating: 10A at 120V AC
- Contact Configuration: Multiple options including 1NO, 2NO, 2NC, 1NO-1NC, 2NO-2NC, 3NO, 3NC, 2NO-1NC, 2NC-1NO for pushbuttons, selector, and key switches
- Contact Resistance: Max. 50 mΩ
- Operating Temperature: -25°C to +60°C (non-illuminated), -25°C to +55°C (illuminated)
- Degree of Protection: IP20 finger-safe, IP66/67/UL Type 4X front
- Vibration Resistance: 30 Hz to 50,000 cycles, amplitude 1.5 mm
- Shock Resistance: Up to 1000 m/s²
- Standards: UL508, CSA 622.2, CE EN60947-5-1
- Wiring: IP20 finger-safe screw terminals, maximum wire size 14 AWG (2.0 mm² stranded, 1.6 mm² solid)
- Operating Voltage Range: 6V to 240V AC/DC depending on module
- LED Module Life: Approximately 30,000 hours
- Features: Locking lever with guard, direct opening NC contacts, compatible with various accessories
- Mounting: Panel thickness 0.8 to 3.2 mm, optional locking rings, waterproof gasket available
Buy the Buy IDEC CW series Control Switch Part Number CW1LA1E10Q4G Online
Purchase the IDEC CW series Control Switch online today for reliable, stylish, and safe operation in automation and industrial control panels. These switches feature a sleek 2.5mm bezel, compact design with only 39.9mm depth behind the panel, and support multiple contact configurations including illuminated options. Designed to meet UL, CE, and IEC standards, they provide durable finger-safe screw terminals, IP66/67 protection, and a lockable locking lever for enhanced safety. Ideal for industrial automation, machinery, and control panels, ensuring safety, durability, and easy maintenance.
Get IDEC CW1LA1E10Q4G today—built for precision and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy IDEC Corporation CW1LA1E10Q4G?
You can click on the BUY or RFQ button to purchase CW1LA1E10Q4G from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part CW1LA1E10Q4G?
You can download the CW1LA1E10Q4G datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of CW1LA1E10Q4G?
IDEC Corporation
