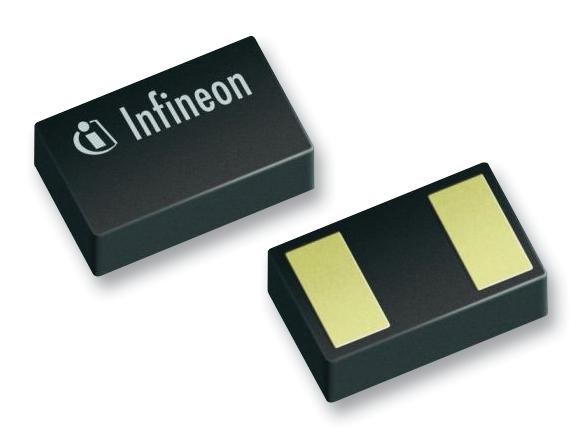

INFINEON BAR9002ELSE6327XTSA1 RF Switch Diode
The BAR90-02ELS is a silicon deep trench PIN diode optimized for low bias current antenna switches in handheld applications. It features very low capacitance at zero volt reverse bias, high-frequency performance above 1GHz, low forward resistance of approximately 1.3Ω at 3mA, and a Pb-free, RoHS-compliant package. Suitable for RF switching and high-speed RF circuits, this diode offers excellent harmonic balance, low distortion, and reliable operation across a temperature range of -55°C to 125°C, making it ideal for demanding wireless communication systems.
INFINEON BAR9002ELSE6327XTSA1 RF Switch Diode Specifications:
- Diode reverse voltage VR 80 V
- Forward current Ie 100 mA
- Total power dissipation Prot 150 mW
- Junction temperature 150 °C
- Operating temperature range Top -55 ... 125°C
- Storage temperature Tstg -55 ... 150°C
- Junction-soldering resistance Rirus <90 K/W
- Diode capacitance Vr=1V, f=1MHz 0.35 pF
- Diode capacitance Vr=0V, f=1GHz 0.19 pF
- Reverse parallel resistance Vr=0V, f=1GHz 5 kΩ
- Forward resistance Ie=3mA, f=100MHz 1.3 Ω
- Charge carrier lifetime Ter approximately 750 ns
- Insertion loss at 1.8 GHz 0.11 dB
- Isolation at 1.8 GHz 13.5 dB
- Package configuration Leadless, TSSLP-2-3 model
- Marking indicates type and orientation
- Dimensions vary by package, suitable for surface-mount installation
Buy the Cinfineon BAR9002ELSE6327XTSA1 – Reliable RF Switch Diode for Industrial Applications
Purchase the Cinfineon RF Switch Diode today to ensure top-tier performance in wireless communication, military, and aerospace applications. Designed for high-frequency RF switching, this diode features extremely low capacitance, high reliability, and RoHS compliance, making it ideal for demanding industrial environments. Its robust construction and efficient power handling optimize signal integrity and minimize distortion. Perfect for surface-mount technology, it offers consistent performance across a broad temperature range. Secure your order online and benefit from fast delivery and expert support for your electronic projects.
Get Cinfineon BAR9002ELSE6327XTSA1 today—built for precision and long-lasting durability in RF switching and high-frequency circuits.
Frequently Asked Questions
Where can I buy INFINEON BAR9002ELSE6327XTSA1?
You can click on the BUY or RFQ button to purchase BAR9002ELSE6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BAR9002ELSE6327XTSA1?
You can download the BAR9002ELSE6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BAR9002ELSE6327XTSA1?
INFINEON
