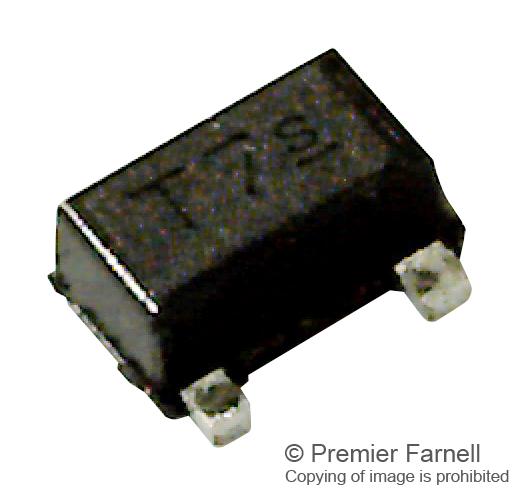

INFINEON BFP843FH6327XTSA1 RF Transistor
The BFP843F is a low noise broadband NPN bipolar RF transistor optimized for mobile and wireless applications. It features an integrated feedback network that provides broadband pre-matching to 50 Ω at input and output, enhancing stability against parasitic oscillations. Built on Infineon’s high-volume SiGe:C technology, it supports collector voltages up to 2.25 V and collector currents up to 55 mA. Its robust design ensures high RF performance, low noise figure, and suitability for LNAs, WLAN, LTE, GPS, and satellite systems, combined with a compact, easy-to-handle plastic package for efficient circuit integration.
INFINEON BFP843FH6327XTSA1 RF Transistor Specifications:
- Package: TSFP-4-1
- Collector-Emitter Voltage: 2.25 V
- Collector Current: 55 mA
- RF Input Power: 20 dBm maximum
- ESD Hardness: 1.5 KV HBM
- Gain at 2.4 GHz: 21.5 dB
- Gain at 5.5 GHz: 16.5 dB
- Minimum Noise Figure at 2.4 GHz: 0.95 dB
- Minimum Noise Figure at 5.5 GHz: 1.1 dB
- OIP3 at 2.4 GHz: 22.5 dBm
- OIP3 at 5.5 GHz: 20 dBm
- Maximum RF Power Dissipation: 125 mW
- Junction Temperature: 150°C
- Operating Voltage: 1.2 V to 3.6 V
- Package dimensions include visible leads, thin flat plastic housing for easy mounting
Buy the Infineon Series RF Transistor: BFP843F
Discover the high-performance Infineon BFP843F RF transistor, designed for low noise broadband applications. Ideal for wireless communications, GPS, LTE, and satellite systems, it combines excellent gain, low noise figure, and high RF power handling in a compact, easy-to-integrate package. Its integrated feedback ensures broadband pre-matching and stability, simplifying design efforts while supporting voltages up to 2.25 V and currents to 55 mA. Perfect for mobile and broadband applications seeking reliable, high RF performance with low power consumption. Order online today for fast delivery.
Get Infineon BFP843F today—built for low noise, high RF performance, and robust stability suited for wireless and satellite systems.
Frequently Asked Questions
Where can I buy INFINEON BFP843FH6327XTSA1?
You can click on the BUY or RFQ button to purchase BFP843FH6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BFP843FH6327XTSA1?
You can download the BFP843FH6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BFP843FH6327XTSA1?
INFINEON
