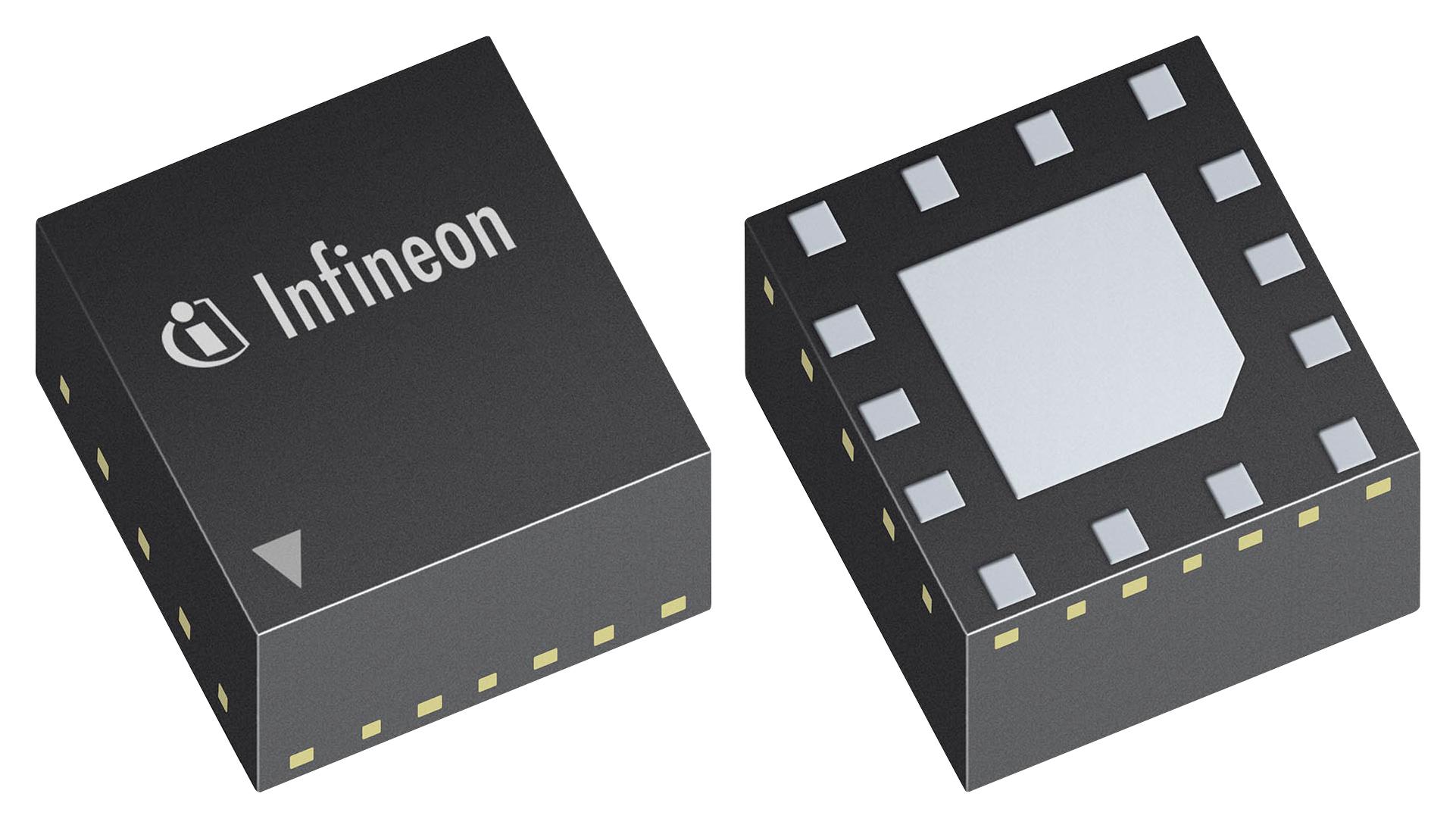

INFINEON BGS16MN14E6327XTSA1 Diversity Switch Module
The BGS16MN14 is a high-performance SP6T diversity antenna switch optimized for wireless applications up to 2.7 GHz. Featuring ultra-low insertion loss, high port-to-port isolation, and integrated MIPI RFFE interface support for 1.2 and 1.8 V bus voltages, it is ideal for multi-mode WCDMA, LTE, and EDGE mobile devices. Its small 2.0 mm x 2.0 mm compact package and wide supply voltage range from 2.5 V to 5.5 V allow versatile integration in compact, power-efficient, and high-linearity antenna switching solutions, eliminating external decoupling capacitors in typical setups.
INFINEON BGS16MN14E6327XTSA1 Diversity Switch Module Specifications:
- Frequency Range: 0.1 to 6.0 GHz
- Supply Voltage: 2.5 V to 5.5 V
- RF Input Power: CW up to 32 dBm
- Insertion Loss: 0.30 to 0.55 dB (depending on frequency)
- Port-to-Port Isolation: up to 42 dB (0.1 to 1.0 GHz)
- High Linearity; Harmonics: H2 85 dBc, H3 90 dBc
- ESD Protection: 1 kV HBM
- Package Size: 2.0 mm x 2.0 mm TSNP
- Operating Temperature: -55°C to 150°C
- Integrated MIPI RFFE interface supporting 1.2V and 1.8V bus voltages
- No external decoupling capacitors required if no DC applied on RF ports
- RoHS and WEEE compliant
- High port-to-port isolation and low harmonic generation make it suitable for mobile and wireless infrastructure applications
Buy the Infineon Series SP6T Diversity Switch: BGS16MN14
Purchase the Infineon Series SP6T Diversity Switch BGS16MN14 online today and enhance your wireless and mobile device designs with this compact, high-linearity antenna switch. Featuring support for 0.1-6.0 GHz, ultra-low insertion loss, high port isolation, and integrated MIPI RFFE interface, it simplifies antenna management for LTE, WCDMA, and EDGE applications. Its small form factor and wide supply voltage range allow flexible integration, eliminating external capacitors, and ensuring reliable performance in demanding conditions. Get efficient, reliable wireless switching solutions online now.
Order your Infineon Series SP6T Diversity Switch BGS16MN14 today and give your wireless projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy INFINEON BGS16MN14E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGS16MN14E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGS16MN14E6327XTSA1?
You can download the BGS16MN14E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGS16MN14E6327XTSA1?
INFINEON
