INFINEON BFR360FH6765XTSA1 RF Transistor Device

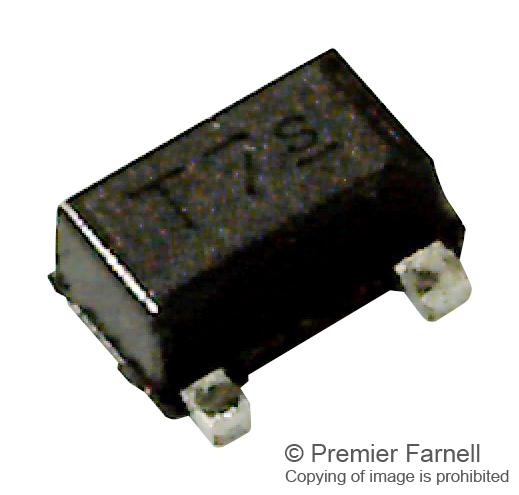

The BFR360F is a low noise silicon bipolar RF transistor designed for low current applications, supporting oscillators up to 3.5 GHz with a low noise figure of 1.0 dB at 1.8 GHz. It features a collector design compatible with a 5 V supply voltage, making it suitable for high-frequency amplification in RF communication systems. The device is Pb-free and halogen-free, housed in a small, flat package with visible leads, ensuring durability and ease of integration in compact electronic circuits. Suitable for low noise amplifier designs in modern RF modules.
INFINEON BFR360FH6765XTSA1 RF Transistor Device Specifications:
- Collector-emitter voltage: 6 V
- Collector-emitter voltage: 15 V
- Collector-base voltage: 15 V
- Emitter-base voltage: 2 V
- Collector current: 35 mA
- Base current: 4 mA
- Total power dissipation: 210 mW at Ts < 98°C
- Junction temperature: 150 °C
- Storage temperature: -55 to +150 °C
- Thermal Resistance (Junction to soldering point): 250 K/W
- Transition frequency: 11 GHz (f=1GHz), 14 GHz (f=1.8 GHz)
- Minimum noise figure: 1.0 dB at 1.8 GHz
- Power gain: 15.5 dB at 1.8 GHz, 11 dB at 3 GHz
- Third order intercept point: 24 dBm at 1.8 GHz
- Collector-base capacitance: 0.32 pF at 5 V, 1 MHz
- Emitter-base capacitance: 0.4 pF at 0.5 V, 1 MHz
- Package: TSFP-3 with footprint 0.4×0.4 mm
Buy the Infineon Series RF Transistor: BFR360F
Purchase the Infineon BFR360F today through our online store. This RF transistor is engineered for low noise applications supporting oscillators up to 3.5 GHz, featuring a low 1.0 dB noise figure at 1.8 GHz. Compact, Pb-free, halogen-free, and housed in a small flat package, it ensures reliable performance in RF modules and communication systems. Ideal for designing high-performance low noise amplifiers. Order now to enhance your RF project with this high-quality transistor designed for durability and precision.
Get Infineon BFR360F today—built for precision and long-lasting durability in RF low noise amplifier circuits.
Frequently Asked Questions
Where can I buy INFINEON BFR360FH6765XTSA1?
You can click on the BUY or RFQ button to purchase BFR360FH6765XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BFR360FH6765XTSA1?
You can download the BFR360FH6765XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BFR360FH6765XTSA1?
INFINEON
