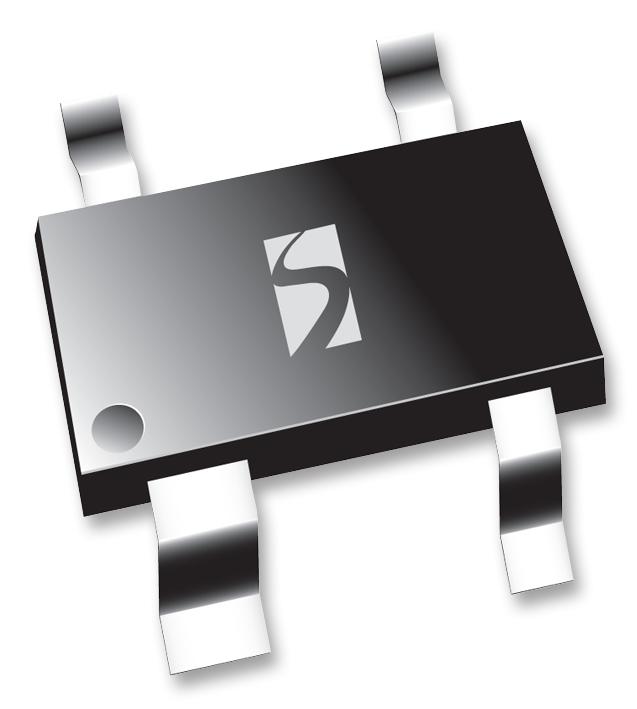

INFINEON BCR402RE6327HTSA1 Low Power LED Driver
The BCR402R is a compact, cost-efficient LED driver designed for low power LED applications such as channel letters, decorative lighting, and medical illumination. It delivers a constant current of 20mA with adjustable output up to 60mA via external resistor, supporting supply voltages up to 18V. Features include high current accuracy, low EMI, and thermal performance with negative thermal coefficient, enhancing LED lifetime. Its small SOT143R package simplifies assembly, reduces costs, and improves reliability, making it ideal for retrofit, signage, and general lighting solutions. It also supports external dimming with digital transistors.
INFINEON BCR402RE6327HTSA1 Low Power LED Driver Specifications:
- Supply Voltage: up to 18V
- Output Current: 20mA adjustable to 60mA with external resistor
- Output Voltage: 16V maximum
- Power Dissipation: 330mW at Tg < 75°C
- Maximum Junction Temperature: 150°C
- Thermal Resistance: 225 K/W (junction to soldering point)
- Pin Configuration: GND, Vout, Vs, Adjustable
- RoHS compliant
- Package: SOT143R
- Reverse Voltage: 0.5V between terminals
- Collector-Emitter Breakdown Voltage: 18V
- Typical Operating Current: 20mA
- Temperature Range: -65°C to 150°C
- Efficiency: Supports parallel operation for higher current output
- Includes features for dimming control via external digital transistor
Buy the Infineon Series LED Driver: BCR402R: 20-60mA Constant Current LED Control
Upgrade your LED lighting setup with the Infineon BCR402R. This reliable LED driver provides adjustable current from 20mA to 60mA, supporting supply voltages up to 18V. Its compact SOT143R package ensures easy installation, reduces costs, and enhances durability. Perfect for signage, decorative lighting, and medical illumination, it guarantees uniform light output, longer LED lifespan, and simplified setup. Ensure optimal performance for your LED projects by choosing this high-quality, cost-effective driver. Buy online today for seamless delivery.
Buy Infineon BCR402R LED driver now and experience reliable, efficient current regulation ideal for signage, decorative and medical lighting applications.
