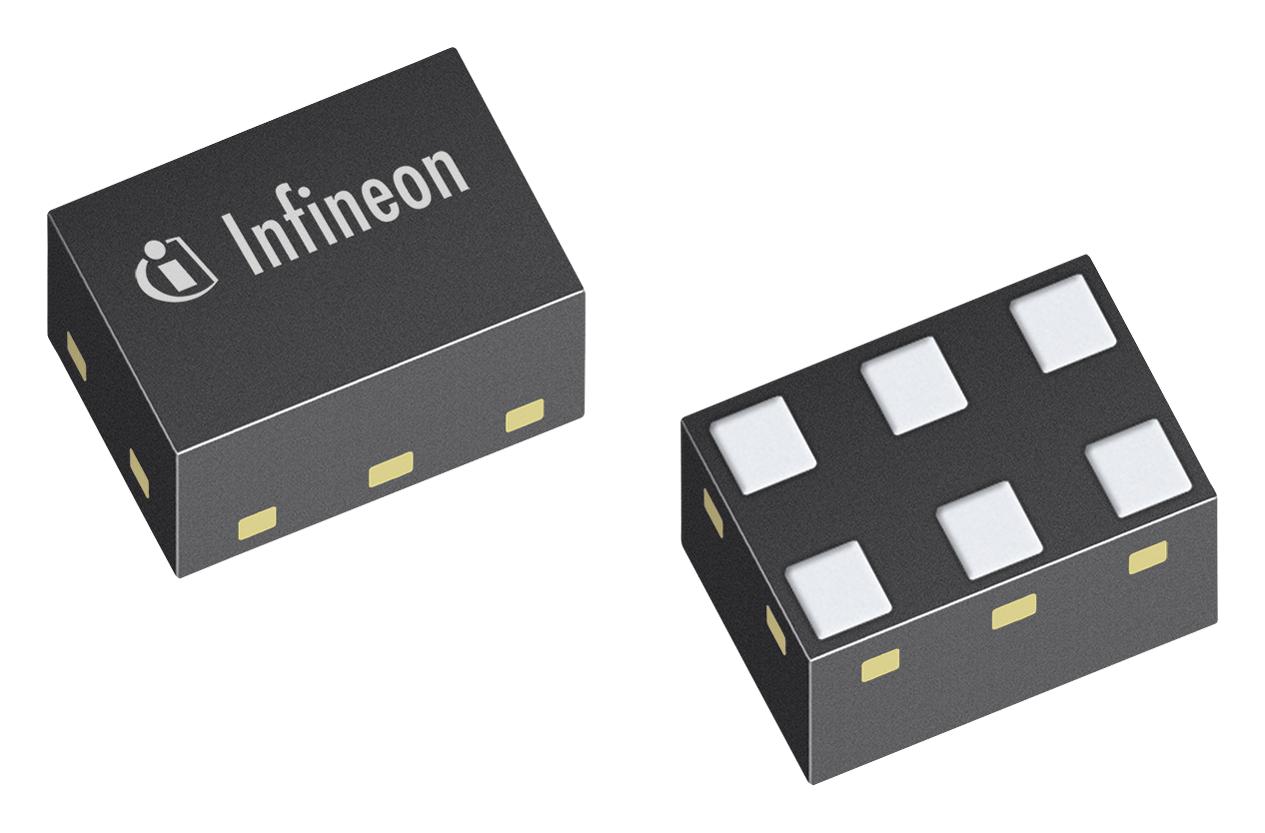

INFINEON BGA855N6E6327XTSA1 GNSS Low Noise Amplifier
The BGA855N6 is a high-performance low noise amplifier designed for lower L-band GNSS applications, covering GPS L2/L5, Galileo E5/E6, Glonass G2/G3, and Beidou B2/B3 bands. Featuring 17.8 dB gain, a noise figure of 0.60 dB, and ultra-small TSNP-6-10 package, it offers high linearity with IIP3 of 0 dBm, low current consumption of 4.8 mA, and internal 50 Ohm RF output matching. It supports voltages from 1.1V to 3.3V, ideal for high accuracy GNSS and 4G/5G signals, with minimal external components needed.
INFINEON BGA855N6E6327XTSA1 GNSS Low Noise Amplifier Specifications:
- Operating frequency range: 1164 - 1300 MHz
- Gain: 17.8 dB
- Noise figure: 0.60 dB
- IIP3: 0 dBm
- Supply voltage: 1.1V to 3.3V
- Supply current: 4.8 mA at 1.8V, 5.4 mA at 2.8V, 5.8 mA at 3.3V
- Output impedance: internally matched to 50 Ohm
- Package: TSNP-6-10 leadless, footprint: 0.7 x 1.1 mm
- ESD protection: 2 kV HBM
- Operation temperature range: -40°C to 85°C
- RoHS compliant and Pb-free
Buy the Buy Infineon BGA855N6 Part Number BGA855N6E6327XTSA1 Online
Purchase the Infineon BGA855N6 GNSS Low Noise Amplifier online and benefit from its high gain, low noise figure, and ultra-compact TSNP-6-10 package. Designed for precise GPS L2/L5, Galileo, Glonass, and Beidou signals, it ensures high sensitivity and linearity, supporting critical navigation and positioning systems. Its low current consumption and minimal external components simplify integration, making it ideal for high-accuracy applications in aerospace, defense, and communication infrastructures. Get reliable, efficient signal amplification today.
Buy Infineon BGA855N6 now and experience unmatched reliability and performance in GNSS signal amplification with ultra-small size and high linearity.
Frequently Asked Questions
Where can I buy INFINEON BGA855N6E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGA855N6E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGA855N6E6327XTSA1?
You can download the BGA855N6E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGA855N6E6327XTSA1?
INFINEON
