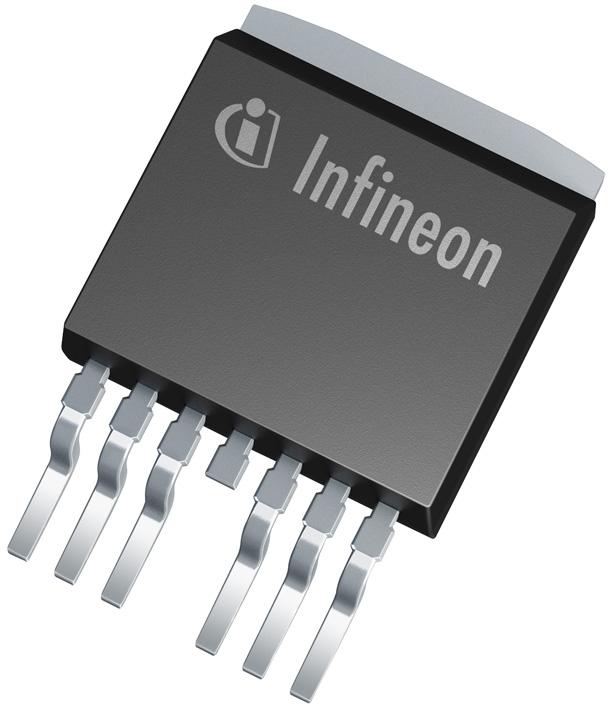

INFINEON IRLS4030TRL7PP High-Speed Power MOSFET
The IRLS4030-7PPbF is a HEXFET® Power MOSFET optimized for high-speed switching, synchronous rectification, and motor drive applications. It features very low on-resistance, superior avalanche capabilities, and is designed for high efficiency and ruggedness in power conversion circuits. Suitable for uninterruptible power supplies, high-frequency circuits, and hard-switched systems, it offers enhanced gate, avalanche, and dynamic dV/dt capabilities. Fully characterized for capacitance and SOA, it supports rugged performance in demanding industrial applications with lead-free construction and precise thermal management.
INFINEON IRLS4030TRL7PP High-Speed Power MOSFET Specifications:
- Drain-to-Source Breakdown Voltage: 100 V
- Drain-to-Source On-Resistance: 3.2 mΩ (Vgs=4.5V) to 3.9 mΩ (Vgs=10V)
- Continuous Drain Current: 190 A (at 25°C), 130 A (at 100°C)
- Pulsed Drain Current: 750 A
- Maximum Power Dissipation: 370 W
- Operating Junction Temperature: -65°C to +175°C
- Gate Threshold Voltage: 1.0 V to 2.5 V
- Gate-to-Source Threshold Voltage: 1.0 V typical
- Gate Resistance: 20Ω
- Gate Charge (Qg): 93 nC (at 110A)
- Output Capacitance: 680 pF
- Reverse Transfer Capacitance: 300 pF
- Body Diode Forward Voltage: 13 V at 110A
- Avalanche Energy: 320 mJ (single pulse)
- Junction-to-Case Thermal Resistance: 0.40°C/W
- Junction-to-Ambient Thermal Resistance: 40°C/W
- Soldering Temperature: 300°C (10 sec)
- Repetitive Avalanche Energy: Variable, tested for ruggedness and reliability
Buy the Buy International HEXFET Power MOSFET Part Number IRLS4030-7PPbF Online
Order the International HEXFET Power MOSFET IRLS4030-7PPbF online today for high-efficiency power management and reliable switching performance. Designed for motor drives, SMPS, and high-frequency circuits, this rugged, lead-free MOSFET delivers low on-resistance, superior avalanche capabilities, and excellent thermal stability. Its advanced design ensures durability in demanding industrial environments while supporting precise thermal and electrical performance. Purchase now to improve your power conversion systems with this proven high-speed power switching component optimized for rugged applications and optimized for enhanced gate and avalanche characteristics.
Get International HEXFET Power MOSFET IRLS4030-7PPbF today—built for high-speed switching, low Rds(on), and reliable industrial performance.
Frequently Asked Questions
Where can I buy INFINEON IRLS4030TRL7PP?
You can click on the BUY or RFQ button to purchase IRLS4030TRL7PP from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IRLS4030TRL7PP?
You can download the IRLS4030TRL7PP datasheet or visit the INFINEON website for support.
Who is the manufacturer of IRLS4030TRL7PP?
INFINEON
