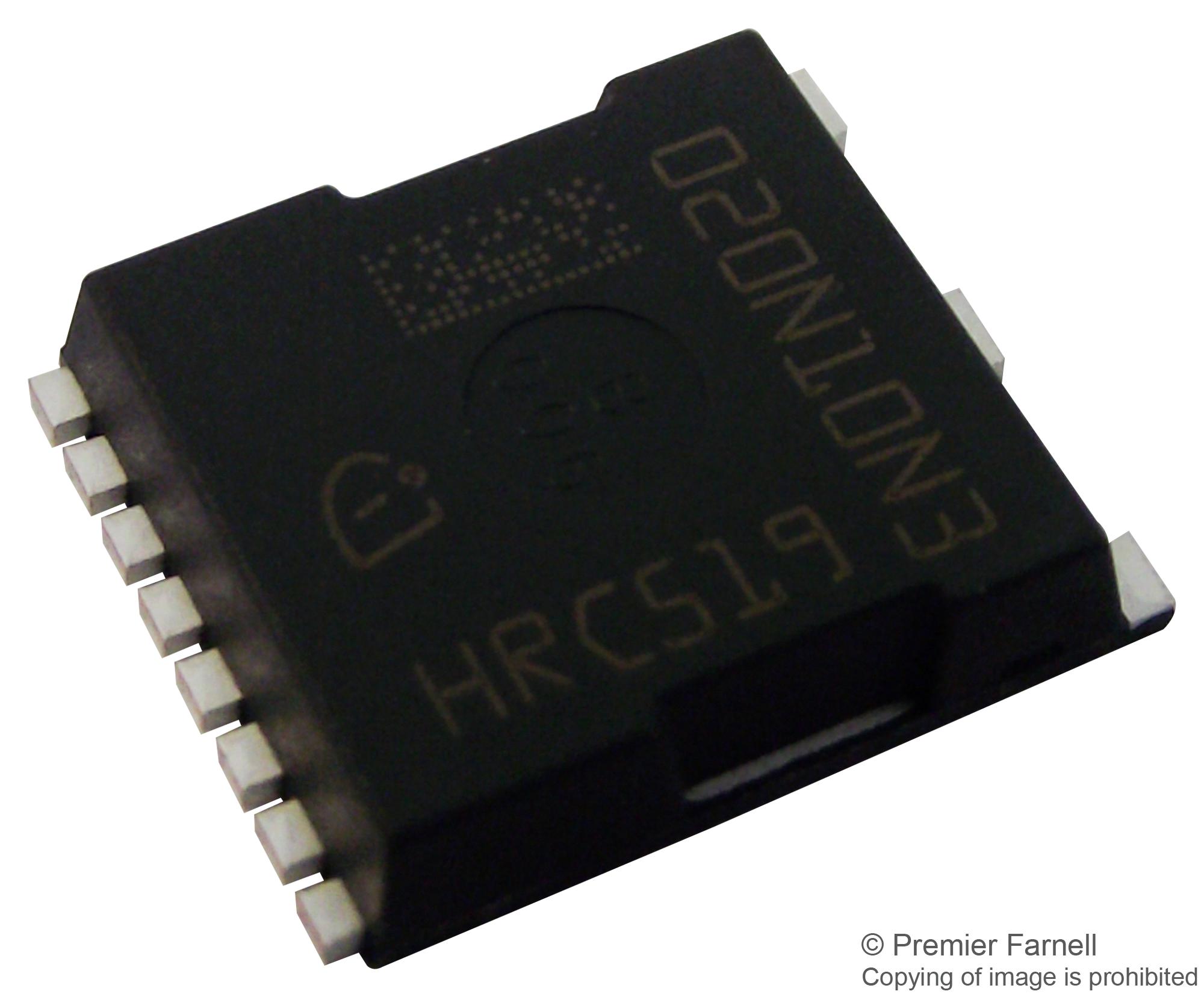

INFINEON IPT60R150G7XTMA1 Power Transistor
The IPT60R150G7 is a high-performance 600V CoolMOS™ G7 power transistor designed for efficient switching in PFC and high-performance LLC circuits. Featuring the innovative TOLL package with Kelvin Source configuration and low parasitic inductance, this device offers superior switching speeds, reduced energy loss, and improved thermal management. Its rugged design enables use in demanding industrial applications such as SMPS, solar inverters, telecom power supplies, and UPS systems. With a low on-resistance and optimized switching characteristics, it enhances overall system efficiency and reliability in high power settings.
INFINEON IPT60R150G7XTMA1 Power Transistor Specifications:
- Maximum drain-source voltage: 600V
- Pulsed drain current: 45A
- Continuous drain current: 23A
- Maximum avalanche energy: 53mJ (single pulse)
- Body diode reverse recovery charge: 2.2μC
- Gate charge total: 23nC
- Gate threshold voltage: 3V to 4V
- Rds(on): 0.323Ω at Vgs=10V, Tj=150°C
- Thermal resistance, junction-ambient: 62°C/W on PCB
- Operating junction temperature range: -55°C to 150°C
- Power dissipation: 106W at 25°C
- DV/dt ruggedness: 120V/ns
- Soldering temperature (reflow): up to 260°C
- Package: PG-HSOF-8 (TOLL package) with Kelvin Source and low inductance features
Buy the Infineon Series G7 IPT60R150G7: 600V CoolMOS™ Power Transistor
Enhance your power management systems with the Infineon Series G7 IPT60R150G7 power transistor, offering 600V voltage rating, low Rds(on), and excellent switching capabilities. Its innovative TOLL package with Kelvin Source configuration ensures minimal parasitic inductance, leading to higher efficiency and faster switching speeds. Ideal for PFC, solar inverters, telecom power supplies, and UPS applications, this device provides superior thermal performance and ruggedness for demanding industrial environments. Purchase online now to improve your system’s reliability and energy efficiency with this advanced power transistor.
Order your Infineon Series G7 IPT60R150G7 high-voltage power transistor today and optimize your switching performance with low energy loss and advanced thermal management.
Frequently Asked Questions
Where can I buy INFINEON IPT60R150G7XTMA1?
You can click on the BUY or RFQ button to purchase IPT60R150G7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPT60R150G7XTMA1?
You can download the IPT60R150G7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPT60R150G7XTMA1?
INFINEON
