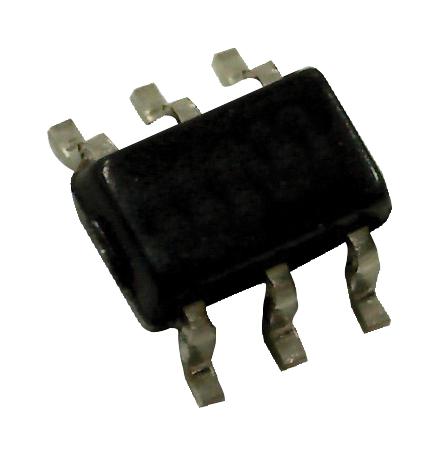

INFINEON CDM10VXTSA1 LED Dimming Interface
The CDM10V is a compact, fully integrated 0-10 V dimming interface IC designed for LED drivers and lighting control applications. Featuring a simple, space-saving SOT-23-6 package, it converts analog dimming signals into a programmable PWM current output, supporting a wide input voltage range of 11 to 25V. The IC offers flexible configuration options, including minimum duty cycle, PWM frequency, and dim-to-off features, making it ideal for industrial and commercial lighting such as luminaires, downlights, and signage. Its embedded digital processing ensures minimal device variation and reliable performance.
INFINEON CDM10VXTSA1 LED Dimming Interface Specifications:
- Input Voltage Range: 11V to 25V
- Package: SOT-23-6
- PWM Output Current: 5 mA
- PWM Frequency: Programmable 200Hz, 500Hz, 1kHz, 2kHz
- Minimum Duty Cycle: 1%, 2%, 5%, 10%
- Dimmer Bias Current: 200A, 501A, 1kA, 500A (programmable)
- Dim-to-Off Feature: Enabled/Disabled
- Operating Temperature: -40°C to +105°C
- Power Dissipation: 130-160 mW depending on duty cycle
- Switching Times: T_r, T_s dependent on load resistance
- Maximum Input Voltage: 25V
- ESD Protection: 1500V (HBM), 500V (CDM)
- Serial Communication Baudrate: 9600 Bd
- Configuration: One-time programmable via serial interface
- Optocoupler Compatibility: Typical devices include VO617A-2, FOD817A, HCPL-817
- External Components: Reduced, thanks to integrated design
- Applications: LED luminaires, Troffers, Downlights, Signage, Dimming controllers
