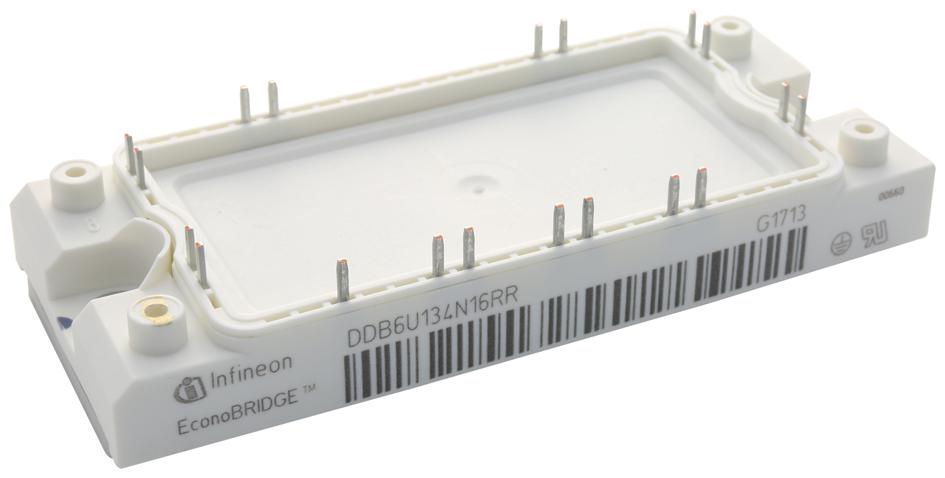

INFINEON DDB6U134N16RRBOSA1 Diode Module with Chopper-IGBT
This is a diode module equipped with a chopper-controlled IGBT for efficient power switching applications. Designed for reliable performance in electronic systems requiring high-speed switching and switching regulation.
INFINEON DDB6U134N16RRBOSA1 Diode Module with Chopper-IGBT Specifications:
- Peak repetitive reverse voltage: 1600 V
- RMS forward current per element: 80 A
- Output current: 134 A
- Surge forward current: 650 A
- Collector-emitter voltage: 1200 V
- DC collector current: 70 A
- Total power dissipation: 500 W
- Gate-emitter peak voltage: +20 V
- Rectifier diode forward voltage: 1.38 V (typical)
- Threshold voltage: 0.75 V
- Forward slope resistance: 6.3 Ω
- Reverse current: 5 mA
- Isolation test voltage: 25 kV
- Maximum junction temperature: 150°C
- Operating temperature range: -40°C to 150°C
- Storage temperature range: -40°C to 150°C
- Inner insulation: Yes
- Thermal resistance junction to case: max 0.25°C/W
- Case: insulated housing
- Dimensions: length approximately 80 mm, weight approx 185 g
Buy the Eupec Series DD B6U 134 N 16 RR: Diode Module with Chopper-IGBT DDB6U134N16RRBOSA1
Purchase the Eupec DDB6U134N16RRBOSA1 diode module with integrated chopper-IGBT today and enhance your power switching and regulation capabilities. This high-performance module provides reliable operation with high voltage and current ratings, making it ideal for demanding electronic systems. Its robust construction ensures long-term durability and exceptional switching speed, minimizing losses and improving overall system efficiency. Easily order online now to benefit from quick delivery and comprehensive support, ensuring your projects stay on schedule with top-quality components.
Buy Eupec DDB6U134N16RRBOSA1 now and experience unmatched reliability and high-speed switching efficiency for your electronic power applications.
Frequently Asked Questions
Where can I buy INFINEON DDB6U134N16RRBOSA1?
You can click on the BUY or RFQ button to purchase DDB6U134N16RRBOSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part DDB6U134N16RRBOSA1?
You can download the DDB6U134N16RRBOSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of DDB6U134N16RRBOSA1?
INFINEON
