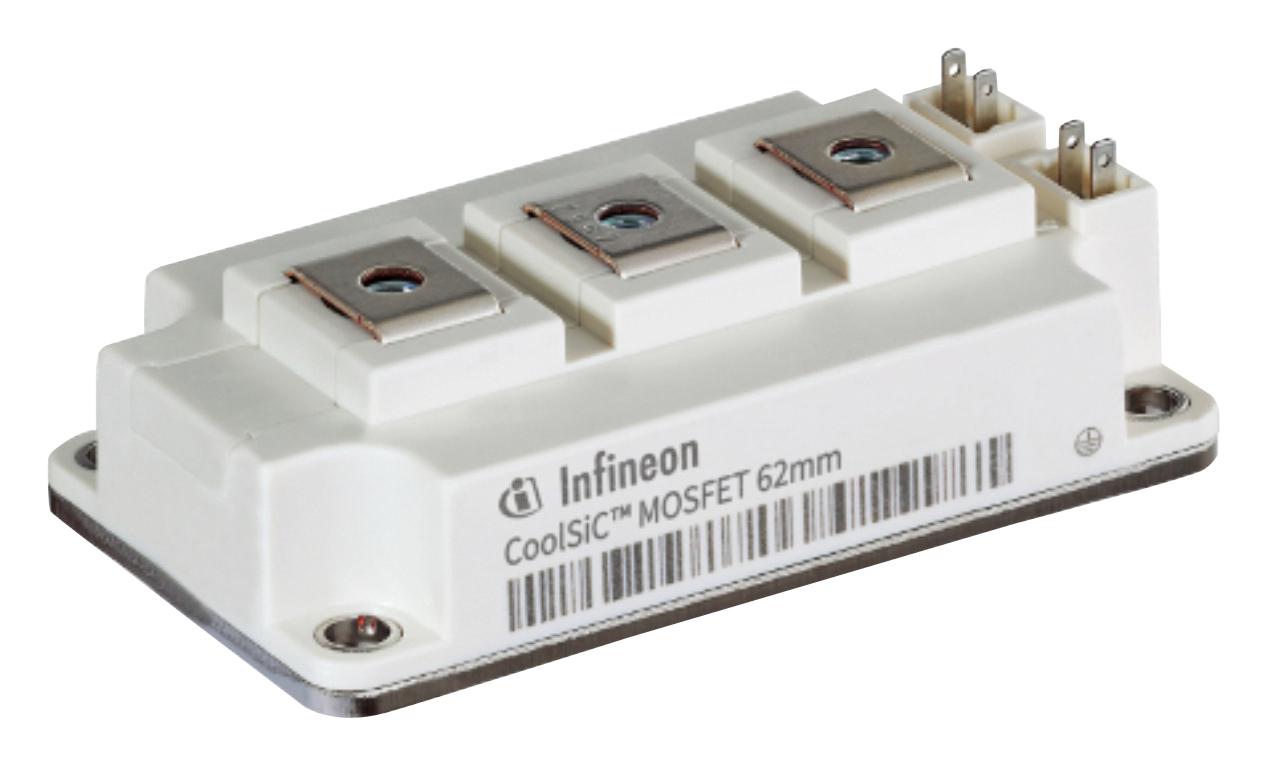

INFINEON FF6MR12KM1BOSA1 high-voltage power module
This high-performance 1200V trench MOSFET module is designed for high-frequency switching applications, solar inverters, DC/DC converters, and UPS systems. Featuring high current density, low switching losses, and robust electrical characteristics, it ensures efficient power management. The module's design incorporates advanced isolation, thermal management, and reliable connection features, making it suitable for demanding industrial environments. Its compact structure, low on-resistance, and excellent thermal properties optimize performance and reliability in power electronic systems. Ideal for renewable energy, industrial automation, and high-power applications.
INFINEON FF6MR12KM1BOSA1 high-voltage power module Specifications:
- Drain-Source Voltage: 1200 V
- Continuous Drain Current: 250 A at 25°C
- Pulsed Drain Current: 1500 A
- Gate-Source Voltage: ±20 V
- Threshold Voltage: 3.45 - 5.15 V
- On Resistance (Rds(on)): 7.56 - 8.50 mΩ at Ty = 125°C & 150°C
- Gate Charge (Qg): 0.496 μC
- Switching Delay Times: On delay 664 ns, Off delay 134 ns
- Thermal Resistance, Junction to Case: 0.444 K/W
- Thermal Resistance, Case to Heatsink: 0.49 K/W
- Isolation Voltage (RMS): 4.0 kV
- Module Material: Copper baseplate, Class 1 insulation
- Tracking Index (CTL): > 400
- Storage Temperature Range: -40°C to 125°C
- Mounting Torque for M6 screw: 6.00 N·m
- Weight: 340 g
Buy the Infineon Series TRENCH MOSFET: FF6MR12KM1
Purchase the high-voltage power module today to enhance your industrial automation or renewable energy projects. Designed for high-frequency applications, solar inverters, and UPS systems, this module offers low switching losses, excellent thermal management, and high current capacity. Its robust construction, advanced insulation, and compact design guarantee reliable operation in demanding environments. Whether you're upgrading existing systems or planning new installations, order online now to secure fast delivery and enjoy the dependable performance Infineon is known for. Optimize your power electronics with this premium module.
Order your Infineon Series TRENCH MOSFET FF6MR12KM1 today and ensure your projects benefit from reliable, high-voltage power switching technology.
Frequently Asked Questions
Where can I buy INFINEON FF6MR12KM1BOSA1?
You can click on the BUY or RFQ button to purchase FF6MR12KM1BOSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part FF6MR12KM1BOSA1?
You can download the FF6MR12KM1BOSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of FF6MR12KM1BOSA1?
INFINEON
