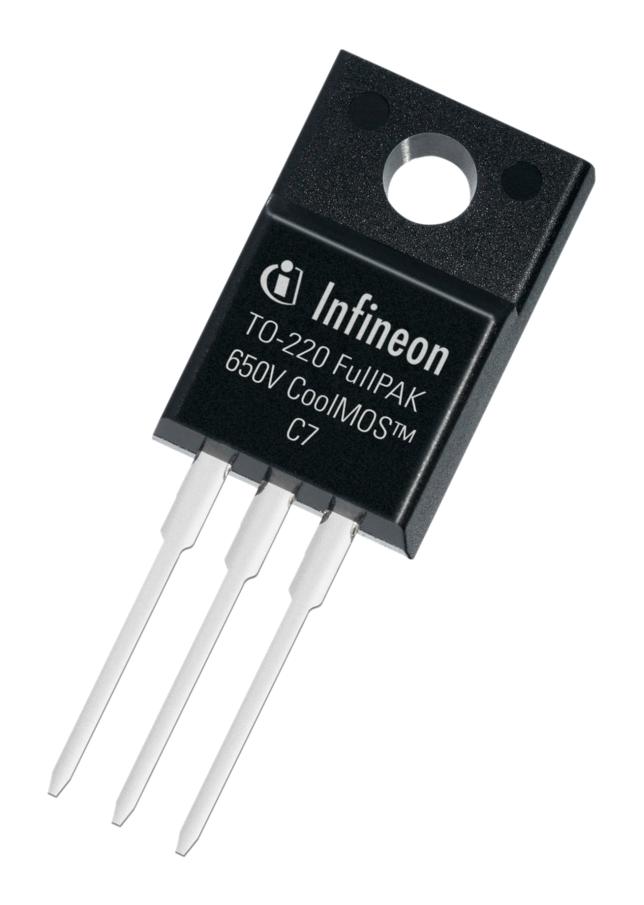

INFINEON IPA65R045C7XKSA1 Power Transistor
The 650V CoolMOS C7 Power Transistor from Infineon features superjunction technology that provides high efficiency, low gate charge, and excellent reliability for high-voltage applications. Designed for PFC and hard switching PWM stages, this MOSFET offers high system performance, increased power density, and lower cooling requirements. Its rugged dv/dt resistance and low on-state resistance ensure system stability and improved thermal management, suitable for computing, telecom, UPS, and solar systems, enabling higher frequency operation and system cost savings.
INFINEON IPA65R045C7XKSA1 Power Transistor Specifications:
- Drain-source breakdown voltage: 650 V
- Continuous drain current: 8 A
- Pulsed drain current: 212 A
- Avalanche energy (single pulse): 249 mJ
- Gate threshold voltage: 3 – 4 V
- Gate-source leakage current: 100 nA
- On-state resistance: 0.096 Ω
- Power dissipation: 35 W
- Operating junction temperature: -55°C to 150°C
- Storage temperature: -55°C to 150°C
- Thermal resistance junction-case: 3.6 °C/W
- Insulation withstand voltage: 2500 V
- Gate charge: total 93 nC
- Diode forward voltage: 0.9 V
- Reverse recovery time: 725 ns
- Switching times delay: 20-82 ns
- Mounting torque: up to 50 N·cm
Buy the Infineon Series CoolMOS C7: IPA65R045C7 Power Transistor
Discover the high-performance Infineon Power Transistor designed for demanding high-voltage switching. Perfect for industrial, telecom, UPS, and solar applications, it offers excellent efficiency, thermal stability, and rugged dv/dt resistance. The Easy-to-drive gate and low on-resistance make for straightforward implementation, reducing cooling needs and system costs. Suitable for high-frequency operations, this transistor enhances system reliability, lowers operating temperatures, and ensures long-term stability. Purchase online today and upgrade your power management system with confidence.
Buy Infineon CoolMOS C7 power transistor now and experience unmatched efficiency, reliability, and high-frequency performance for your power management needs.
Frequently Asked Questions
Where can I buy INFINEON IPA65R045C7XKSA1?
You can click on the BUY or RFQ button to purchase IPA65R045C7XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPA65R045C7XKSA1?
You can download the IPA65R045C7XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPA65R045C7XKSA1?
INFINEON
