INFINEON FS500R17OE4DB81BPSA1 Power Module

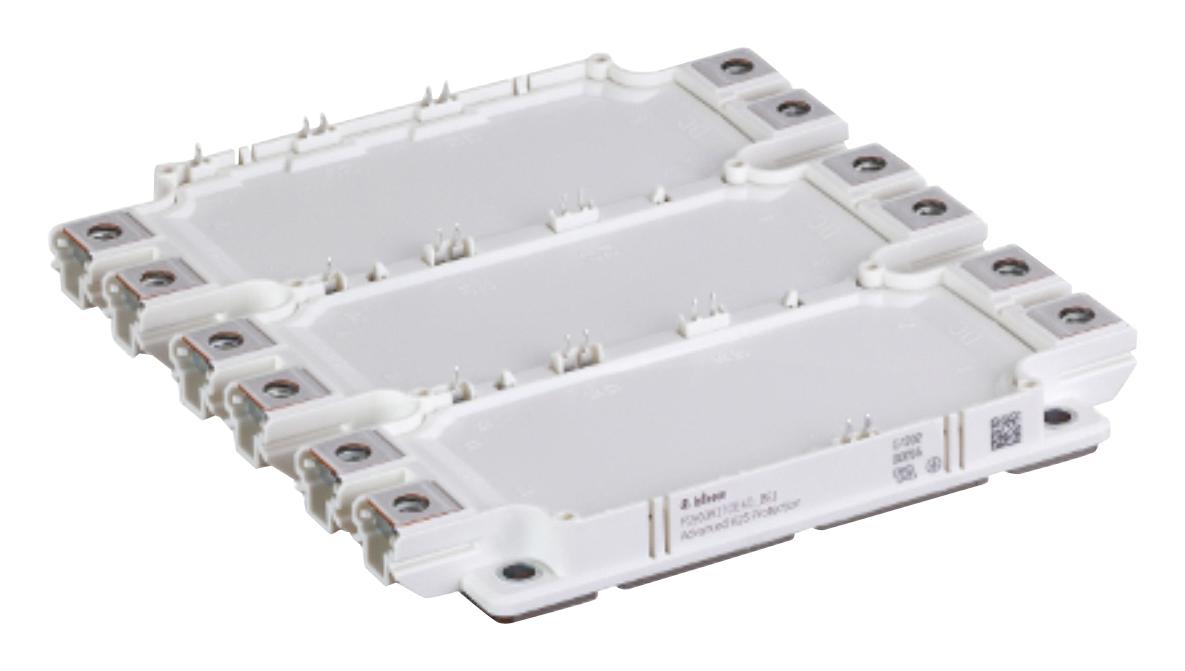

The FS500R170E4D module is a high-performance power module designed for industrial applications such as high power converters, motor drives, and wind turbines. Featuring Trench/Fieldstop IGBT4 technology with an integrated NTC temperature sensor and PressFIT connection, it offers high short-circuit capacity, surge capability, and robust mechanical and thermal characteristics. The module complies with RoHS standards and provides reliable insulation and creepage distances suitable for demanding environments. Its rugged construction ensures durability under high operational stresses with excellent thermal management for efficient performance.
INFINEON FS500R17OE4DB81BPSA1 Power Module Specifications:
- Collector-Emitter Voltage: 1700 V
- DC Collector Current: 500 A at 95°C, 1000 A peak
- Gate-Emitter Peak Voltage: +20 V
- Shunt-Inductance: 20 nH
- Thermal Resistance, Junction to Case: 0.0500 KW
- Material: Cu baseplate, RoHS compliant
- Isolation Voltage: 3.4 kV RMS, 50Hz, 1 min
- Storage Temperature: -40°C to 125°C
- Mounting Torque for M5 Screw: 6.00 Nm
- Weight: 924 g
Buy the Infineon FS500R170E4D – Reliable Power Module for Industrial Applications
Enhance your industrial power systems with the Infineon FS500R170E4D module. Featuring advanced IGBT4 technology, an integrated NTC sensor, and PressFIT connection, this module ensures high short-circuit robustness and excellent thermal management. Suitable for high power converters, motor drives, and wind turbines, it offers durability and reliability in demanding environments. Order online today to get fast delivery and incorporate this rugged, RoHS-compliant power module into your projects, boosting performance and efficiency with trusted quality.
Order your Infineon FS500R170E4D power module today and upgrade your industrial converters, motor drives, or wind turbines with reliable high-voltage performance.
