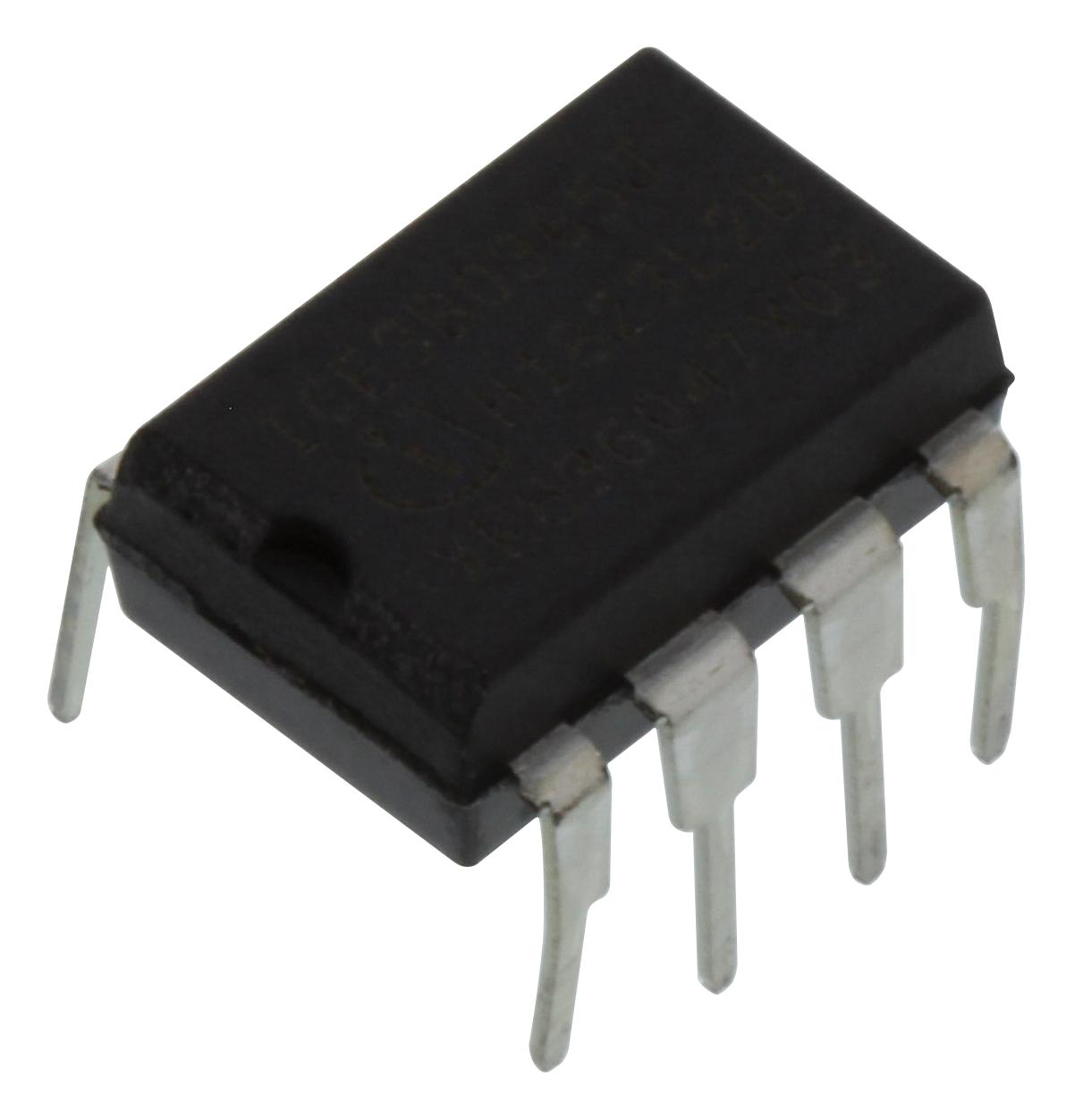

INFINEON ICE3B0365JFKLA1 Power Supply Controller
The ICE3B0365JFKLA1 is an advanced off-line switch-mode power supply controller with integrated 650V CoolMOS® and startup cell, designed for low standby power applications. Featuring active burst mode for ultra-low power consumption, frequency jittering for reduced EMI, and multiple auto restart protection modes including overtemperature, overvoltage, overload, and VCC undervoltage, it ensures system robustness. The device supports high efficiency, fast load response, and minimal external component requirements, ideal for off-line battery adapters and low-cost SMPS with minimal thermal management.
INFINEON ICE3B0365JFKLA1 Power Supply Controller Specifications:
- Package: PG-DIP-8
- Maximum Drain Source Voltage: 650 V
- Fixed Switching Frequency: 67 kHz
- Duty Cycle Limit: 75%
- VCC Operating Range: 10.3V to 26V
- Startup Cell Current: approx. 1.05mA
- Power Dissipation: Max power at 25°C
- Junction Temperature Range: -25°C to 150°C
- Thermal Resistance Junction-Ambient: 90 K/W
- Peak Current Limitation: 1.06A typical
- Output Capacitance: 11.63 pF
- Protection Modes: Overtemperature, Overvoltage, Overload, VCC Undervoltage
- Frequency Jitter Range: ±2.7 kHz
- Dimensions: As per PG-DIP-8 outline, typical length 7.49-8.26 mm
- Mounting: Through-hole, Pb-free lead plating
- ESD Capabilities: 2 kV Human Body Model
Buy the Infineon Series F3 Low Power Controller: ICE3B0365JFKLA1
Purchase the Infineon ICE3B0365JFKLA1 online today and unlock superior low standby power performance, fast load response, and robust protection features. Designed for off-line SMPS applications, this controller utilizes active burst mode, frequency jittering for EMI reduction, and multiple auto restart protection modes. Its integrated 650V CoolMOS® and startup cell simplify design, reduce external parts, and enhance efficiency. Ideal for battery adapters and compact power supplies, this device guarantees dependable operation, minimal external component count, and high system robustness, making it the perfect choice for your low-power switching power supply needs.
Buy Infineon ICE3B0365JFKLA1 now and experience unmatched reliability, low standby power, and efficient load response for your off-line power designs.
