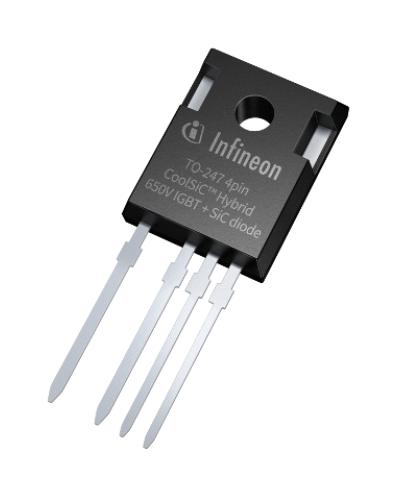

INFINEON IKZA40N65RH5XKSA1 Hybrid IGBT Module
The IKZA40N65RH5XKSA1 is a high-performance hybrid IGBT module featuring CoolSiC™ technology, optimized for industrial power supply, energy generation, and infrastructure applications. It offers ultra-low switching losses, benchmark efficiency, and simplified PCB design, supporting maximum junction temperatures of 175°C. Qualified according to JEDEC standards, it ensures reliable operation in demanding environments. Its compact four-pin package includes Kelvin emitter, gate, collector, and backside collector pins, with Pb-free lead plating and RoHS compliance, making it ideal for energy storage, solar inverters, and industrial UPS.
INFINEON IKZA40N65RH5XKSA1 Hybrid IGBT Module Specifications:
- Collector-emitter voltage: 650 V
- DC collector current: 74.0 A at 25°C, 46.0 A at 100°C
- Pulsed collector current: 160.0 A
- Diode forward current: 27.5 A at 25°C, 18.5 A at 100°C
- Gate-emitter voltage: +20 V (max transient +30 V)
- Power dissipation: 250 W at 25°C, 125 W at 100°C
- Operating junction temperature: -40°C to +175°C
- Thermal resistance: junction-case 0.60 K/W, junction-ambient 40 K/W
- Soldering temperature: 260°C for 10s, wave soldering recommended from 1.6mm from case
- Mounting torque: maximum 0.6 Nm with M3 screw
- Package: PG-T0247-4-3, exposed die pad, halogen-free backside
- Peak switching energy: approx. 0.26 mJ (tag), 0.08 mJ (tag), at 150°C junction
- Switching times: turn-on delay 17 ns, rise time 7 ns, turn-off delay 165 ns, fall time 25 ns
Buy the Cinfineon IKZA40N65RH5XKSA1 – Reliable Hybrid IGBT for Industrial Applications
Purchase the Cinfineon Hybrid IGBT Module today online to benefit from advanced CoolSiC™ technology, ultra-low switching losses, and benchmark efficiency. This module is perfect for industrial power supplies, energy generation, and infrastructure applications. Easy to integrate with its optimized four-pin package featuring Kelvin emitter, gate, collector, and backside collector pins. Qualified under JEDEC standards, it guarantees reliable operation up to 175°C junction temperature. Improve your systems' performance and energy efficiency by ordering this reliable, RoHS-compliant product now.
Buy Cinfineon IKZA40N65RH5XKSA1 now and experience unmatched reliability and high efficiency in energy storage, solar inverters, and industrial power supplies.
Frequently Asked Questions
Where can I buy INFINEON IKZA40N65RH5XKSA1?
You can click on the BUY or RFQ button to purchase IKZA40N65RH5XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKZA40N65RH5XKSA1?
You can download the IKZA40N65RH5XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKZA40N65RH5XKSA1?
INFINEON
