INFINEON IPP028N08N3GXKSA1 High-Power N-Channel Transistor
The IPP028N08N3G is an N-channel power transistor designed for high-frequency switching and synchronous rectification applications. It features very low on-resistance, a maximum drain current of 100A at 25°C, and operates at temperatures up to 175°C. Its robust construction includes Pb-free, RoHS-compliant plating, and it conforms to JEDEC standards for reliable performance in demanding environments. Suitable for power supply circuits, motor controls, and inverter systems, this transistor provides excellent gate charge characteristics, high avalanche energy tolerance, and thermal stability, making it ideal for modern high-efficiency electronic power management.
INFINEON IPP028N08N3GXKSA1 High-Power N-Channel Transistor Specifications:
- Maximum drain current: 100 A at 25°C
- Pulsed drain current: 400 A
- Drain-source breakdown voltage: 80 V
- Gate threshold voltage: 2.8 V to 3.5 V
- On-resistance: 24 to 28 mΩ
- Operating temperature range: -55°C to 175°C
- Power dissipation: 300 W at 25°C
- Avalanche energy: 1430 mJ
- Gate charge: 155 to 206 nC
- Input capacitance: 10700 to 14200 pF
- Reverse recovery time: 113 ns
- Thermal resistance junction-case: 0.5 K/W
- Dimensions (for packages): PG-TO262-3, 4.3 mm x 6.9 mm, and PG-TO220-3, 18 mm x 15.95 mm
- RoHS compliant, JEDEC qualified

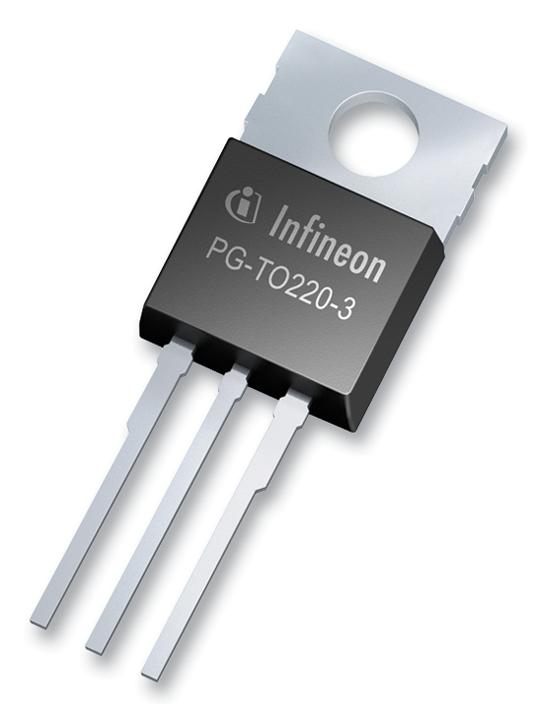

Buy the Infineon Series Power Transistor: IPP028N08N3 G
Enhance your electronic projects with the Infineon Power Transistor IPP028N08N3 G, engineered for high-frequency switching. This device offers low on-resistance, high current handling of up to 100A, and operates at temperatures up to 175°C, ensuring reliable performance in demanding environments. It features excellent gate charge characteristics, robust avalanche energy, and thermal stability, making it suitable for power supplies, motor controllers, and inverters. Purchase online today for superior quality and dependable operation in your high-power applications.
Order your Infineon Series Power Transistor IPP028N08N3 G today and give your projects the dependable quality they deserve for high-power applications.
Frequently Asked Questions
Where can I buy INFINEON IPP028N08N3GXKSA1?
You can click on the BUY or RFQ button to purchase IPP028N08N3GXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP028N08N3GXKSA1?
You can download the IPP028N08N3GXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP028N08N3GXKSA1?
INFINEON
