INFINEON IM231L6S1BALMA1 3-Phase Power Module
The IM231-L6S1B and IM231-L6T2B are 3-phase intelligent power modules designed for high-efficiency appliance motor drives such as air-conditioner fans and refrigerator compressors. Incorporating advanced TRENCHSTOP™ IGBT6 technology, these IPMs feature low Vce_sat, integrated gate drivers, bootstrap circuits, precise overcurrent protection, temperature feedback, and various fault reporting functions. Suitable for low power motor drives, they comply with industrial standards and provide reliable protection features, including temperature monitoring and shoot-through prevention, making them ideal for compact, efficient motor control applications.
INFINEON IM231L6S1BALMA1 3-Phase Power Module Specifications:
- Max. blocking voltage: 600V
- Output current: 6A (continuous), 9A (peak)
- Operating case temperature: -40°C to +125°C
- Operating junction temperature: -40°C to +150°C
- Isolation test voltage: 2000VRMS for 1 min
- Gate driver: integrated, with bootstrap circuit
- Control supply voltages: 13.5V to 16.5V (low side), up to 20V (high side)
- Switching times: turn-on delay approx. 641ns, turn-off delay approx. 895ns
- Package options: DIP 29x12, SOP 29x12
- Thermistor for temperature sensing, UL certified
- Thermal resistance: junction-to-case approx. 2.8°C/W
- Protection features: overcurrent, overtemperature, shoot-through prevention
- RoHS compliant, qualified to JEDEC standards
- Shock and vibration resistant with rugged design
- Control inputs compatible with 3.3V logic

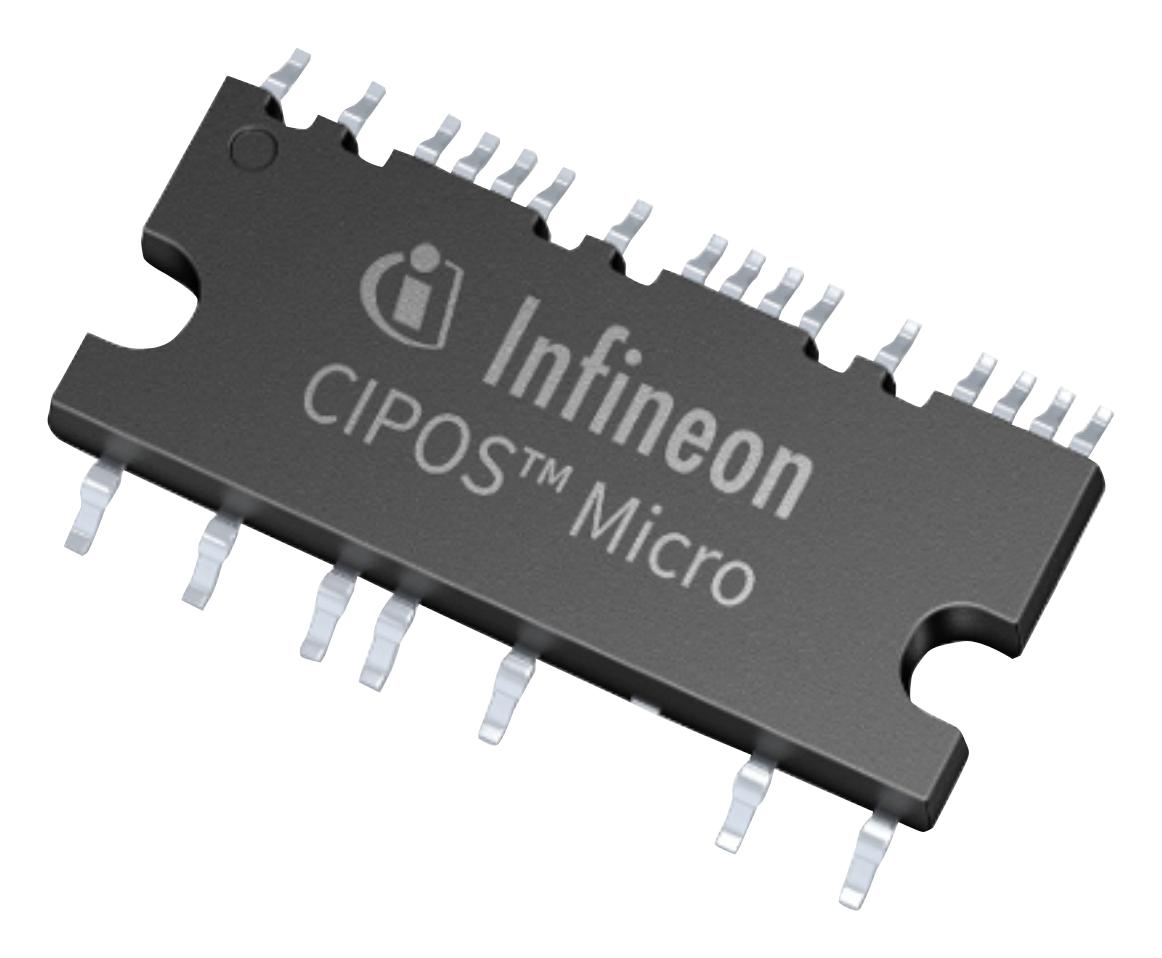

Buy the Buy Infineon IM231-L6S1B Part Number IM231-L6S1B Online
Secure your supply of the advanced IM231-L6S1B power module online today. This high-performance device with integrated gate drivers, protection features, and thermistor sensing ensures efficient motor control for air-conditioners, refrigerators, and low-power motor applications. Easy to integrate with 600V blocking voltage and low switching losses, this module guarantees durability and excellent thermal management. Perfect for industrial and commercial use, buy now to enhance your appliance design with proven reliability, robust protection, and simplified wiring for optimal performance.
Buy Infineon IM231-L6S1B now and experience unmatched reliability and performance for high-efficiency appliance motor drives.
Frequently Asked Questions
Where can I buy INFINEON IM231L6S1BALMA1?
You can click on the BUY or RFQ button to purchase IM231L6S1BALMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IM231L6S1BALMA1?
You can download the IM231L6S1BALMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IM231L6S1BALMA1?
INFINEON
