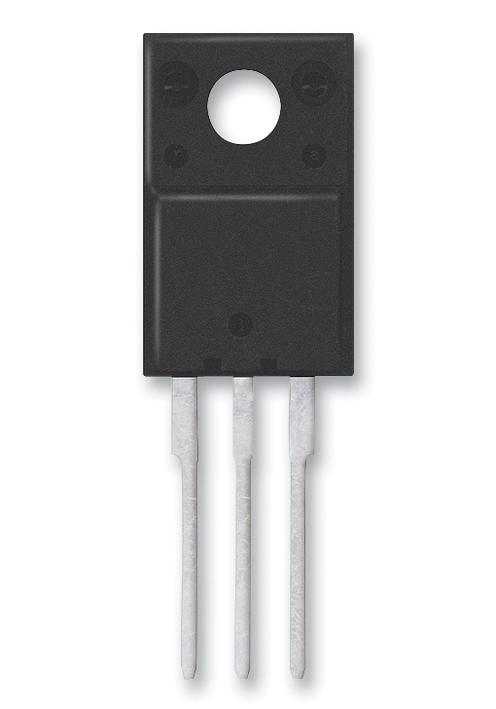

INFINEON IKA15N60TXKSA1 High Power IGBT Module
The IKA15N60T is a high-performance IGBT device from the TRENCHSTOP™ Series, designed for 600V applications such as inverters and air conditioning systems. Featuring low loss DuoPack technology with TRENCHSTOP™ and Fieldstop technology, it offers very high switching speeds, tight parameter distribution, and excellent ruggedness. Its soft, fast recovery anti-parallel Emitter Controlled HE diode ensures low EMI and reliable operation at junction temperatures up to 175°C. Qualified according to JEDEC standards, this device is suitable for demanding industrial power switching applications.
INFINEON IKA15N60TXKSA1 High Power IGBT Module Specifications:
- Collector-emitter voltage: 600 V
- DC collector current: 18.3 A at 25°C, 10.6 A at 100°C
- Pulsed collector current: 45 A
- Short circuit withstand time: 5 μs
- Gate-emitter voltage: +20 V
- Power dissipation: 35.7 W at 25°C
- Maximum junction temperature: 175°C
- Thermal resistance, junction — case: 4.2 K/W
- Diode forward voltage: 1.65–2.05 V at 25°C
- Switching energies: 0.57 mJ at 25°C, 0.81 mJ at 175°C
- Gate charge: 87 nC
- Isolation voltage: 2500 V
- Reverse recovery time: 34–140 ns depending on temperature
- Reverse recovery charge: 0.24–1.0 μC depending on temperature
Buy the Infineon Series TRENCHSTOP IGBT: IKA15N60T
Purchase the Infineon IKA15N60T from our online store today to ensure reliable and efficient power switching in your industrial and inverter applications. This high-performance IGBT offers fast switching speeds, low EMI, and high ruggedness, making it ideal for demanding environments. With a maximum junction temperature of 175°C and robust construction, it guarantees long-term durability and safety. Our online platform provides fast delivery, detailed specifications, and expert support to help you get the right component for your project effortlessly. Buy now for quality and efficiency.
Get Infineon IKA15N60T today—built for precision and long-lasting durability in high-power applications.
Frequently Asked Questions
Where can I buy INFINEON IKA15N60TXKSA1?
You can click on the BUY or RFQ button to purchase IKA15N60TXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKA15N60TXKSA1?
You can download the IKA15N60TXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKA15N60TXKSA1?
INFINEON
