INFINEON IPD60R1K5PFD7SAUMA1 High Voltage Power MOSFET
The 600V CoolIMOS PFD7 is an advanced superjunction MOSFET designed for high-voltage power switching with low conduction and switching losses. It features excellent thermal behavior, fast body diode, high efficiency, and ruggedness, making it suitable for high-density chargers, adapters, motor drives, and lighting applications. Qualified according to JEDEC standards, this device supports high power density and slim designs, enabling efficient and reliable performance in ZVS topologies and other high-frequency power circuits. Its optimized platform ensures easy part selection and design customization.
INFINEON IPD60R1K5PFD7SAUMA1 High Voltage Power MOSFET Specifications:
- Drain-source breakdown voltage: 600 V
- Maximum continuous drain current: 38 A
- Pulsed drain current: 6.0 A
- Avalanche energy, single pulse: 7 mJ
- Avalanche energy, repetitive: 0.04 mJ
- Gate threshold voltage: 3.5 to 4.5 V
- Gate-source leakage current: up to 1000 nA
- Drain-source on-state resistance: 2.89 Ω at 150°C
- Maximum junction temperature: 150°C
- Thermal resistance, junction to case: 5.62 °C/W
- Power dissipation: 22 W at 25°C
- Gate charge total: 46 nc
- Reverse recovery charge: 0.12 pC
- Diode forward voltage: 1.0 V at 0.7 A
- Switching times: ton 64 ns, toff 41.5 ns
- Maximum dv/dt ruggedness: 120 V/ns
- ESD class: HBM 2
- Package: PG-TO 252-3 (SMD)

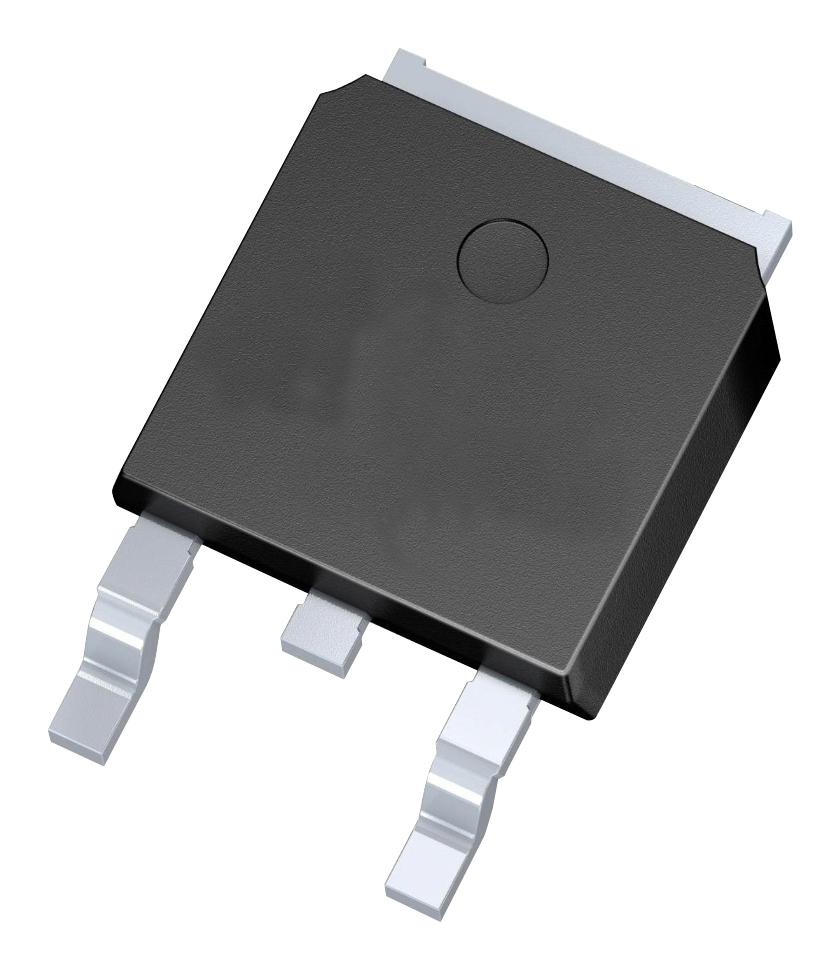

Buy the Buy Infineon CoolMOS PFD7 Part Number IPD60R1K5PFD7S Online
Purchase the Infineon CoolMOS PFD7 online now and benefit from its high efficiency, low conduction and switching losses, and rugged design. Perfect for high-density chargers, adapters, motor drives, and lighting systems, this superjunction MOSFET ensures reliable, high-performance operation. Its optimized platform simplifies part selection and design tuning, enabling advanced high-voltage switching in compact, slim form factors. With qualification according to JEDEC standards, it's the ideal choice for users requiring durable, efficient, and easy-to-integrate power devices for demanding applications.
Get Infineon CoolMOS PFD7 today—built for high-voltage power switching, featuring low losses, high efficiency, and rugged reliability.
Frequently Asked Questions
Where can I buy INFINEON IPD60R1K5PFD7SAUMA1?
You can click on the BUY or RFQ button to purchase IPD60R1K5PFD7SAUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPD60R1K5PFD7SAUMA1?
You can download the IPD60R1K5PFD7SAUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPD60R1K5PFD7SAUMA1?
INFINEON
