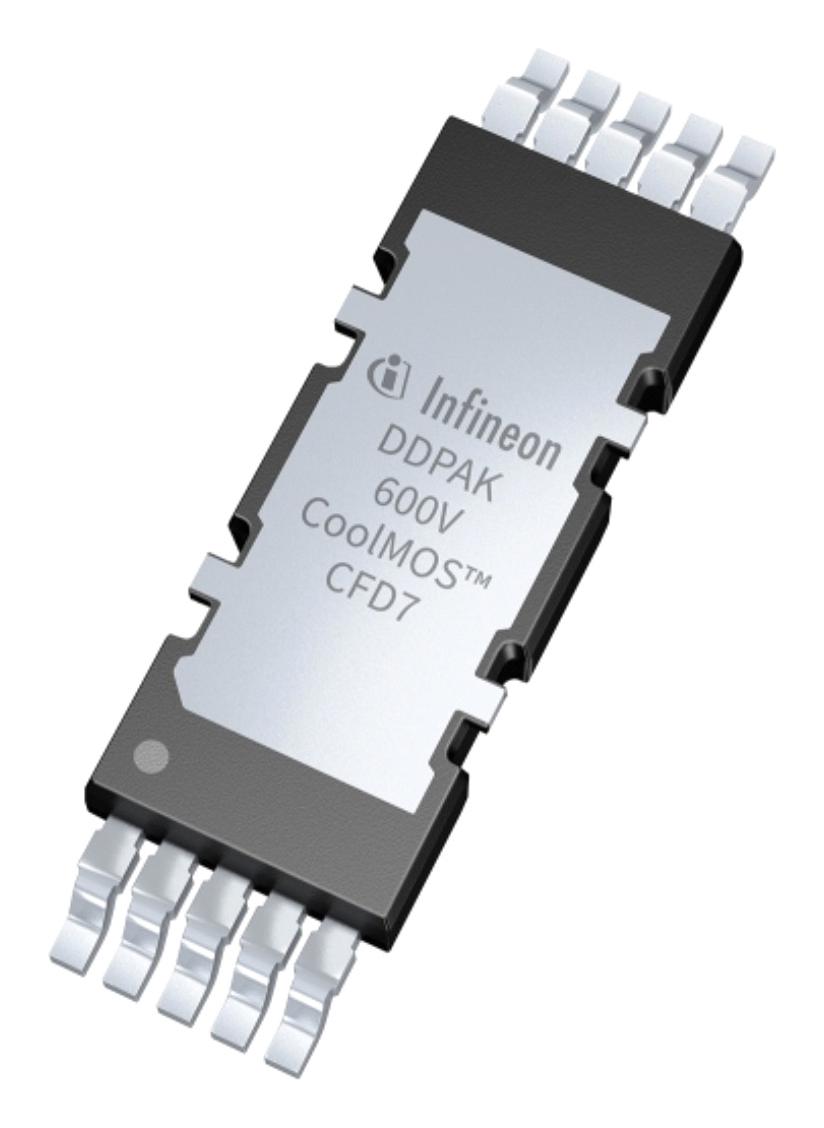

INFINEON IPDD60R145CFD7XTMA1 High Voltage Power Transistor
The CoolMOS CFD7 power transistor offers high voltage capability up to 600V, optimized for soft switching applications such as phase-shift full-bridge and LLC resonant topologies. Designed with superjunction technology, it features ultra-fast body diodes, low gate charge, and robust reverse recovery performance, making it ideal for server, telecom, and EV charging systems. Fully qualified per JEDEC standards, it provides excellent switching ruggedness, high efficiency, and increased power density for demanding industrial applications, ensuring reliable performance in resonant and hard switching environments.
INFINEON IPDD60R145CFD7XTMA1 High Voltage Power Transistor Specifications:
- Drain-source breakdown voltage: 600 V
- Continuous drain current: rated at 51 A pulsed at 51 A
- Avalanche energy: 60 mJ single pulse
- Avalanche current: 3.8 A single pulse
- Maximum diode recovery time: 138 ns
- Reverse recovery charge: 0.72 pC
- Gate threshold voltage: 3.5 - 4.5 V
- On-state resistance Rds(on): 0.259 Ω at 10 V gate
- Total gate charge Qg: 28 nc
- Gate resistance: 10.9 Ω
- Thermal resistance, junction to ambient: 62 °C/W
- Operating junction temperature: -55°C to 150°C
- Power dissipation: 160 W at 25°C
- Insulation withstand voltage: specified but not detailed
- Package: PG-HDSOP-10-1
Buy the Infineon Series CFD7 Power Transistor: IPDD60R145CFD7
Purchase the Infineon CFD7 power transistor online today to unlock superior efficiency and switching ruggedness. Designed for high voltage, resonant applications like server power supplies, telecom, and EV charging stations, this device ensures high reliability, fast switching, and increased power density. With full JEDEC qualification, it offers robust performance in harsh environments, enabling your industrial projects with enhanced operational safety and long-term durability. Order now to optimize your high power electronic systems effortlessly.
Buy Infineon CFD7 power transistor now and experience unmatched reliability and performance in high-voltage switching applications.
Frequently Asked Questions
Where can I buy INFINEON IPDD60R145CFD7XTMA1?
You can click on the BUY or RFQ button to purchase IPDD60R145CFD7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPDD60R145CFD7XTMA1?
You can download the IPDD60R145CFD7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPDD60R145CFD7XTMA1?
INFINEON
