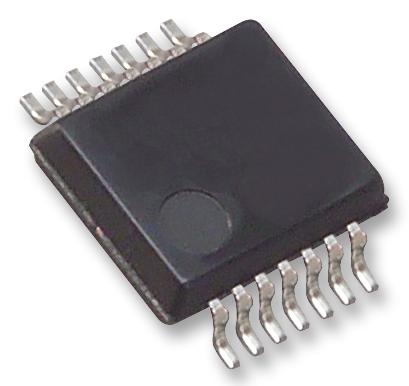

INFINEON TLE72732EV50XUMA1 Low Dropout Regulator
The TLE7273-2 is a monolithic low dropout voltage regulator designed for automotive microcontroller power supplies in harsh environments. It features adjustable output voltages of 5 V, 3.3 V, and 2.6 V with a tolerance of +2%, and delivers up to 180mA current. The device is characterized by ultra-low quiescent current below 36 pA, integrated reset with adjustable power-on delay, window watchdog, and overtemperature shutdown for overload protection. Its wide operation voltage range extends to 45 V, and it operates across temperatures from -40 °C to 150 °C, making it suitable for demanding automotive applications.
INFINEON TLE72732EV50XUMA1 Low Dropout Regulator Specifications:
- Output Voltage: 5 V, 3.3 V, or 2.6 V with +2% tolerance
- Maximum Output Current: 180 mA
- Quiescent Current: < 36 pA at low load
- Dropout Voltage: Very low, typically 250-500 mV at 180 mA
- Input Voltage Range: 5.5 V to 45 V
- Operating Temperature Range: -40 °C to 150 °C
- Package Types: PG-DSO-14 with exposed pad, PG-SSOP-14 exposed pad
- Thermal Resistance (Junction to case): 14 K/W
- Thermal Resistance (Junction to ambient): 53 K/W (PG-DSO-14), 47 K/W (PG-SSOP-14)
- Overtemperature Shutdown, Reset with adjustable delay, Window Watchdog
- RoHS compliant, Green product
Buy the Buy Infineon TLE7273-2GV50 Low Dropout Voltage Regulator Part Number TLE7273-2GV50 Online
Experience reliable power regulation with the Infineon TLE7273-2GV50. Designed for automotive and harsh environment applications, it offers adjustable output voltages, ultra-low quiescent current, and comprehensive protection features. Easily integrate this compact, RoHS-compliant device into your power management system for optimal performance and durability. Purchase online now to ensure your project benefits from high efficiency, robust overload protection, and extended temperature operation from -40 °C to 150 °C, guaranteeing they function flawlessly under demanding conditions.
Get Infineon TLE7273-2GV50 today—built for automotive precision, low dropout voltage, and long-lasting durability in harsh conditions.
Frequently Asked Questions
Where can I buy INFINEON TLE72732EV50XUMA1?
You can click on the BUY or RFQ button to purchase TLE72732EV50XUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE72732EV50XUMA1?
You can download the TLE72732EV50XUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE72732EV50XUMA1?
INFINEON
