INFINEON IPDD60R170CFD7XTMA1 High Voltage Power Transistor
The CoolMOS CFD7 power transistor offers high voltage switching capabilities up to 600V, optimized for soft switching topologies such as phase-shift full-bridge and LLC applications. Featuring an ultra-fast body diode, low gate charge, and excellent ruggedness, it ensures high efficiency and reliability in resonant topologies for server, telecom, and electric vehicle charging systems. Its advanced superjunction technology provides reduced losses, increased power density, and easy integration, making it ideal for demanding industrial and power management applications.
INFINEON IPDD60R170CFD7XTMA1 High Voltage Power Transistor Specifications:
- Maximum drain-source voltage: 600V
- Pulsed drain current: 42A
- Continuous drain current: 8A
- Avalanche energy (single pulse): 49mJ
- Avalanche energy (repetitive): 0.24mJ
- Gate threshold voltage: 3.5V to 4.5V
- Drain-source on-resistance: 0.0317Ω (typ.)
- Thermal resistance junction-case: 0.91°C/W
- Operating junction temperature: -55°C to 150°C
- Maximum storage temperature: -55°C to 150°C
- Reflow soldering temperature: 260°C
- Gate charge: 23nC total
- Switching times: turn-on 23ns, turn-off 82ns
- Body diode forward voltage: 1.0V at 4.9A
- Diode reverse recovery time: 88-132ns
- Package: PG-HDSOP-10

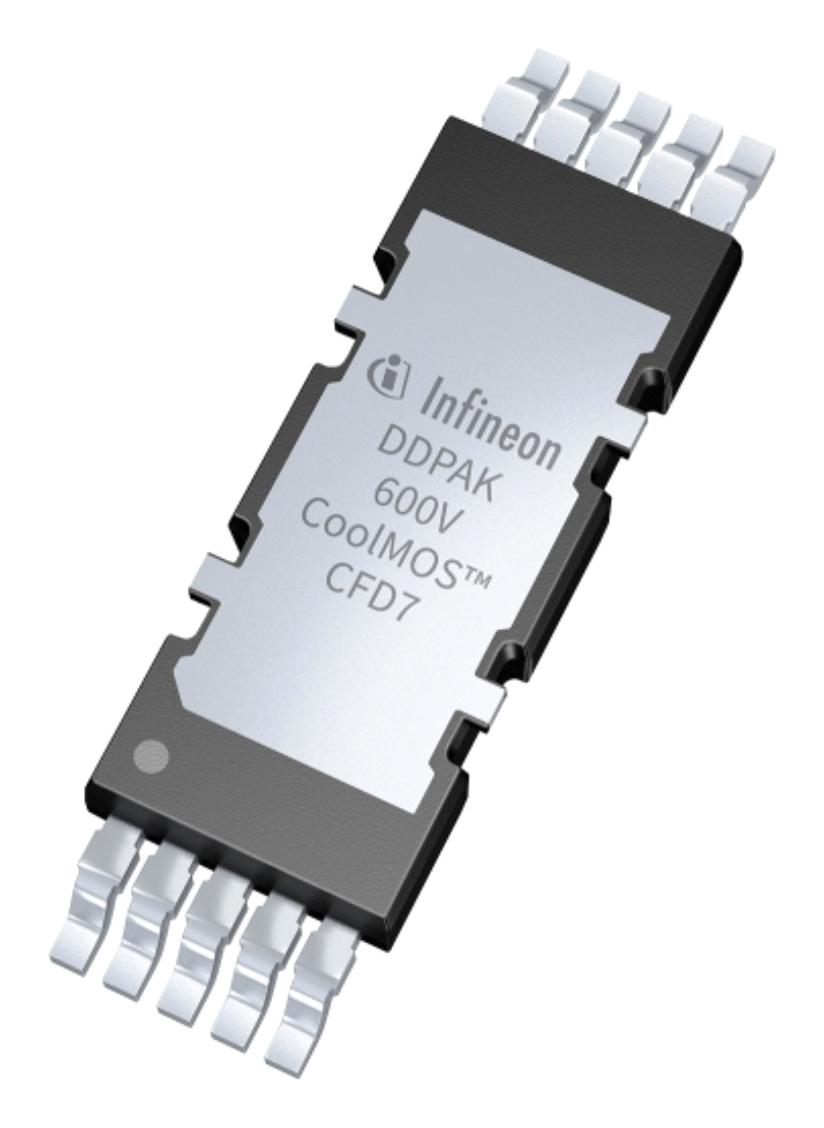

Buy the Buy Infineon CoolMOS CFD7 Power Transistor Part Number IPDD60R170CFD7 Online
Get the high voltage power transistor designed for efficiency and reliability in resonant topologies. The Infineon CFD7 series offers fast switching, low gate charge, and rugged performance ideal for industrial, telecom, and electric vehicle charging applications. With a maximum voltage of 600V, low Rds(on), and excellent thermal characteristics, it ensures high power density and superior system efficiency. Easy to implement and fully qualified, this transistor is perfect for demanding power switching and resonant topologies, boosting your project's performance and reliability.
Order your Infineon Series CFD7 600V Power Transistor today and elevate your power management solutions with reliable high-voltage switching performance.
Frequently Asked Questions
Where can I buy INFINEON IPDD60R170CFD7XTMA1?
You can click on the BUY or RFQ button to purchase IPDD60R170CFD7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPDD60R170CFD7XTMA1?
You can download the IPDD60R170CFD7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPDD60R170CFD7XTMA1?
INFINEON
