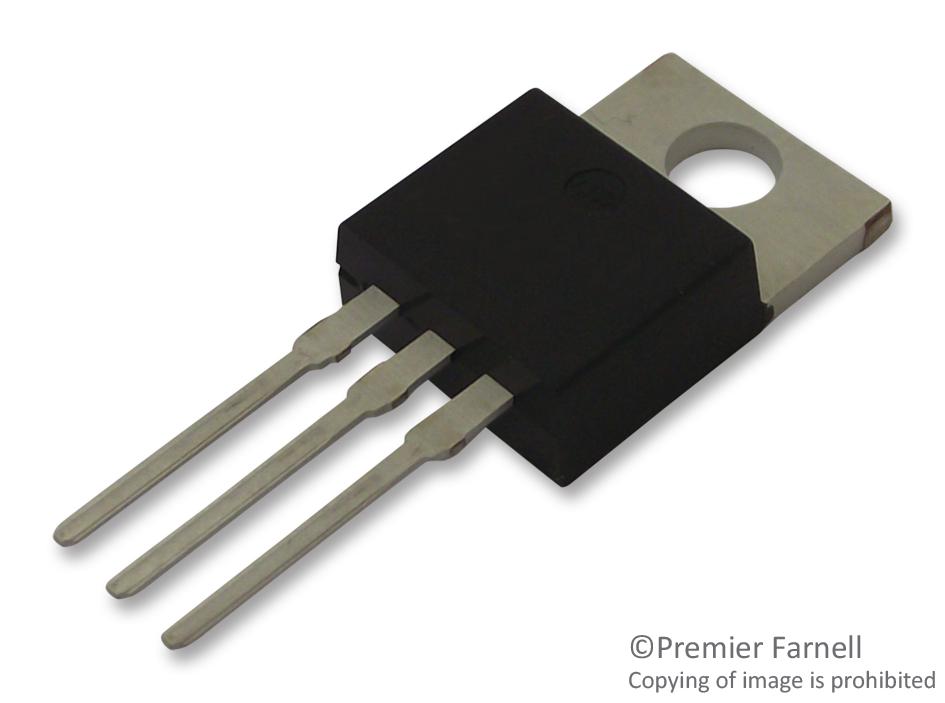

INFINEON IPP082N10NF2SAKMA1 Power MOSFET
The StrongIRFET™ 2 Power-Transistor is a high-performance N-channel MOSFET optimized for reliable switching applications. Fully qualified, 100% avalanche tested, and compliant with RoHS and halogen-free standards, it offers a maximum drain-source voltage of 100 V, a continuous drain current of 77 A, and a very low on-resistance of 8.2 mΩ. Ideal for industrial switching, power management, and automation, this transistor ensures robust operation in harsh environments with excellent thermal and electrical characteristics, making it suitable for complex electronic systems demanding high efficiency and durability.
INFINEON IPP082N10NF2SAKMA1 Power MOSFET Specifications:
- Maximum drain-source voltage: 100 V
- Continuous drain current: 77 A
- Pulsed drain current: 308 A
- Gate threshold voltage: 2.2 V to 3.8 V
- Gate-source voltage: -20 V to 20 V
- Drain-source on-resistance: 8.2 mΩ (max)
- Power dissipation: 38 W
- Operating and storage temperature range: -55°C to 175°C
- Thermal resistance junction-case: 1.5 °C/W
- Avalanche energy per pulse: 47 mJ
- Gate charge: 28 nC (total)
- Body material: RoHS compliant, halogen-free, Pb-free plating
- Package type: PG-TO220-3
- Device is qualified per JEDEC standards
Buy the Infineon IPP082N10NF2S – Reliable Power MOSFET for Industrial Applications
Enhance your electronic components with the high-quality Power MOSFET. The Infineon IPP082N10NF2S offers low Rds(on), high current capacity, and robust thermal performance, making it ideal for demanding industrial power switching, automation, and electronic applications. Its fully tested avalanche capability and RoHS compliance ensure safety, durability, and eco-friendliness. Easy to integrate into power management systems, this transistor guarantees efficient operation and long-term reliability, providing an excellent solution for your advanced electronic projects. Order online today for fast delivery and technical support.
Buy Infineon IPP082N10NF2S now and experience unmatched reliability and high-efficiency power switching for industrial systems.
Frequently Asked Questions
Where can I buy INFINEON IPP082N10NF2SAKMA1?
You can click on the BUY or RFQ button to purchase IPP082N10NF2SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP082N10NF2SAKMA1?
You can download the IPP082N10NF2SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP082N10NF2SAKMA1?
INFINEON
