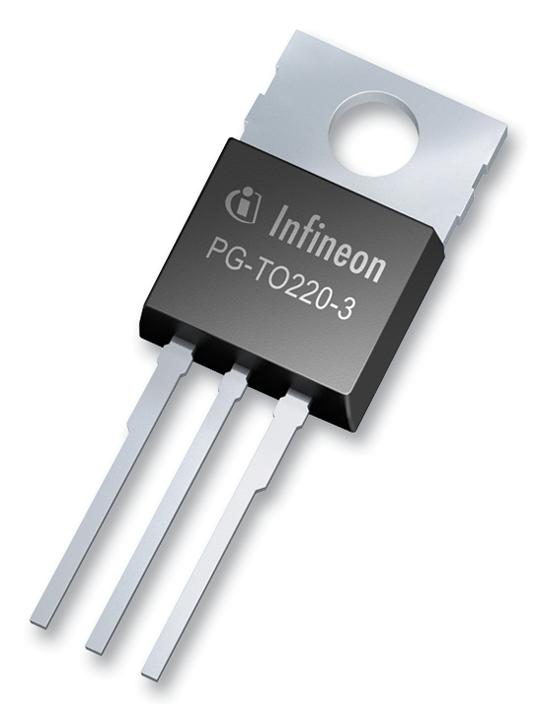

INFINEON IPP60R160P6XKSA1 High Voltage Power Transistor
The IPP60R160P6 is a 600V CoolMOS™ P6 power transistor designed with superjunction technology for high efficiency switching applications. It features extremely low conduction and switching losses, high ruggedness, and easy drive requirements. Suitable for PFC stages, PWM, and resonant switching in power supplies, lighting, and industrial automation, it offers high avalanche energy, low Rdson, and robust handling of high dv/dt levels, ensuring reliable performance in demanding environments.
INFINEON IPP60R160P6XKSA1 High Voltage Power Transistor Specifications:
- Voltage Rating: 600V
- Continuous Drain Current: 150A at Tj=25°C
- Pulsed Drain Current: 68A
- Avalanche Energy: 497 mJ (single pulse), 0.75 mJ (repetitive)
- Drain-source on-resistance: 0.374 Ω at Vgs=10V, Tj=150°C
- Gate threshold voltage: 3.5 V to 4.5 V
- Gate charge: 44 nc total
- Max. power dissipation: 176W (non FullPAK), 34W (FullPAK)
- Operating junction temperature: -55°C to 150°C
- Thermal resistance junction-case: 0.71 °C/W (TO-220), 3.67 °C/W (FullPAK)
- Switching times: Turn-on delay 125 ns, Rise time 76 ns, Turn-off delay 40 ns, Fall time 58 ns
Buy the Infineon IPP60R160P6 – Reliable MOSFET for Industrial Applications
Purchase the Infineon IPP60R160P6 power transistor online today and benefit from high efficiency, low conduction and switching losses, and robust performance. Ideal for power supplies, lighting, and industrial automation, this 600V MOSFET ensures reliable operation under demanding conditions. Its low Rdson, high avalanche energy, and easy drive features make it a versatile and essential component for advanced power management systems. Order now and enhance your project's efficiency, reliability, and thermal performance.
Buy Infineon IPP60R160P6 power transistor now and experience unmatched reliability and performance in your high-voltage switching designs.
Frequently Asked Questions
Where can I buy INFINEON IPP60R160P6XKSA1?
You can click on the BUY or RFQ button to purchase IPP60R160P6XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP60R160P6XKSA1?
You can download the IPP60R160P6XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP60R160P6XKSA1?
INFINEON
