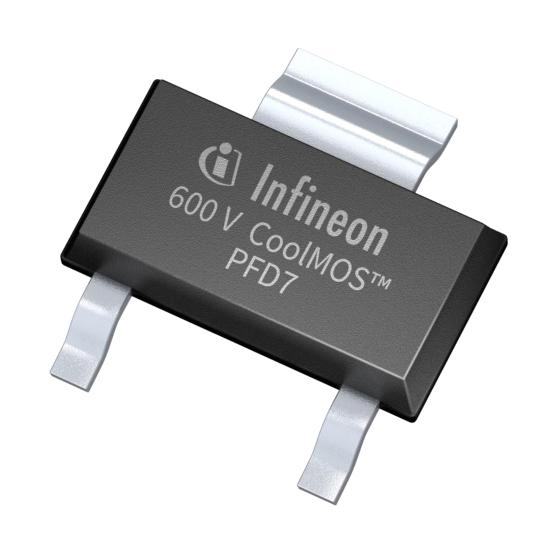

INFINEON IPS60R600PFD7SAKMA1 High-Voltage Power MOSFET
The Infineon CoolIMOS PFD7 SJ Power MOSFET is designed for high-voltage, low-loss switching applications. It combines the benefits of superjunction technology with an optimized platform for cost-sensitive markets, including chargers, adapters, lighting, and motor drives. The device offers extremely low conduction and switching losses, fast body diode recovery, high efficiency, and supports high power density designs for slim, high-performance systems. Qualified according to JEDEC standards, it provides robust electrical and thermal characteristics suitable for demanding power management applications.
INFINEON IPS60R600PFD7SAKMA1 High-Voltage Power MOSFET Specifications:
- Maximum drain-source breakdown voltage: 600V
- Maximum continuous drain current: Not specified externally, recommended for high power density designs
- Avalanche energy, single pulse: 17 mJ
- Avalanche energy, repetitive: 0.08 mJ
- Maximum power dissipation: 31 W
- Gate threshold voltage: 3.5V to 4.5V
- Drain-source on-resistance: 4.219Ω at 10V
- Maximum junction temperature: 150°C
- Thermal resistance, junction to ambient: Approx. 62°C/W
- Insulation withstand voltage: Not specified externally
- Gate charge: Total Qg approximately 8.5 nC
- Gate resistance: 11Ω
- ESD class: 2
- Maximum dv/dt: 130 V/ns
- Package: PG-TO 251-3
- Repetitive avalanche energy: 0.08 mJ
Buy the Infineon Series PFD7 Power MOSFET: IPS60R600PFD7S
Experience the advanced performance of the Infineon IPS60R600PFD7S power MOSFET, designed for high-voltage switching applications such as chargers, lighting, and motor drives. Its superjunction technology offers extremely low conduction and switching losses, ensuring superior efficiency and thermal performance. With a maximum voltage of 600V and robust avalanche energy ratings, this device supports high power density and compact designs. Qualified according to JEDEC standards, it is ideal for high-performance, cost-sensitive power management systems requiring reliable and efficient operation.
Get Infineon IPS60R600PFD7S today—built for high efficiency, low losses, and reliable high-voltage power switching.
Frequently Asked Questions
Where can I buy INFINEON IPS60R600PFD7SAKMA1?
You can click on the BUY or RFQ button to purchase IPS60R600PFD7SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPS60R600PFD7SAKMA1?
You can download the IPS60R600PFD7SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPS60R600PFD7SAKMA1?
INFINEON
