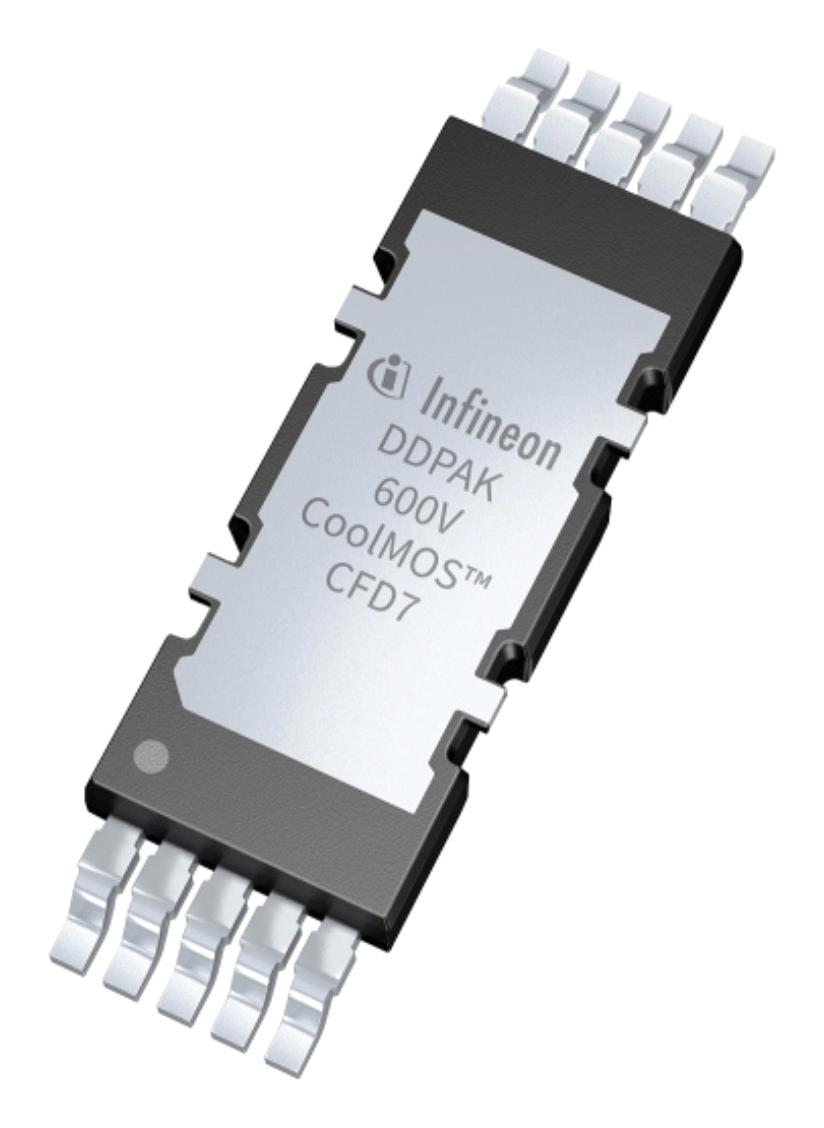

INFINEON IPDD60R055CFD7XTMA1 High-Voltage Power MOSFET
The CoolMOS CFD7 is a high-voltage power MOSFET based on Infineon's superjunction technology, offering ultra-fast body diode, low gate charge, and best-in-class reverse recovery. Designed for soft switching topologies such as phase-shift full-bridge (ZVS) and LLC, it features high efficiency, excellent ruggedness, and reliability in resonant applications, making it ideal for server, telecom, and EV charging systems. Fully qualified according to JEDEC, it ensures safe operation in demanding industrial environments with optimized performance and ease of implementation.
INFINEON IPDD60R055CFD7XTMA1 High-Voltage Power MOSFET Specifications:
- Drain-source voltage: 600V
- Continuous drain current: 52A
- Pulsed drain current: 129A
- Avalanche energy, single pulse: 151mJ
- Avalanche energy, repetitive: 0.76mJ
- Rds(on): 0.103Ω at Vgs=10V, Tj=150°C
- Gate threshold voltage: 3.5V to 4.5V
- Gate charge Qg: 67nC
- Reverse recovery charge Qr: 0.61pC
- Body diode recovery time: 422ns
- dv/dt ruggedness: 120V/ns
- Operating junction temperature: -55°C to 150°C
- Thermal resistance, junction to case: 0.38°C/W
- Storage temperature: -55°C to 150°C
- Reflow soldering temperature: 260°C
Buy the Buy Infineon CoolMOS CFD7 Power Transistor Part Number IPDD60R055CFD7 Online
Purchase the Infineon CoolMOS CFD7 Power Transistor IPDD60R055CFD7 online today and experience the latest in high-voltage MOSFET technology. Designed for soft switching topologies like ZVS and LLC, it offers ultra-fast body diode, low gate charge, and superior reverse recovery performance for maximum efficiency. With full JEDEC qualification, robust avalanche capability, and easy integration, this MOSFET is ideal for server, telecom, EV charging, and industrial automation solutions. Guarantee optimal performance and reliability by ordering now from authorized online sources.
Order your Infineon Series CFD7 600V High-Voltage Power Transistor IPDD60R055CFD7 today and enhance your resonant switching solutions with trusted efficiency and ruggedness.
