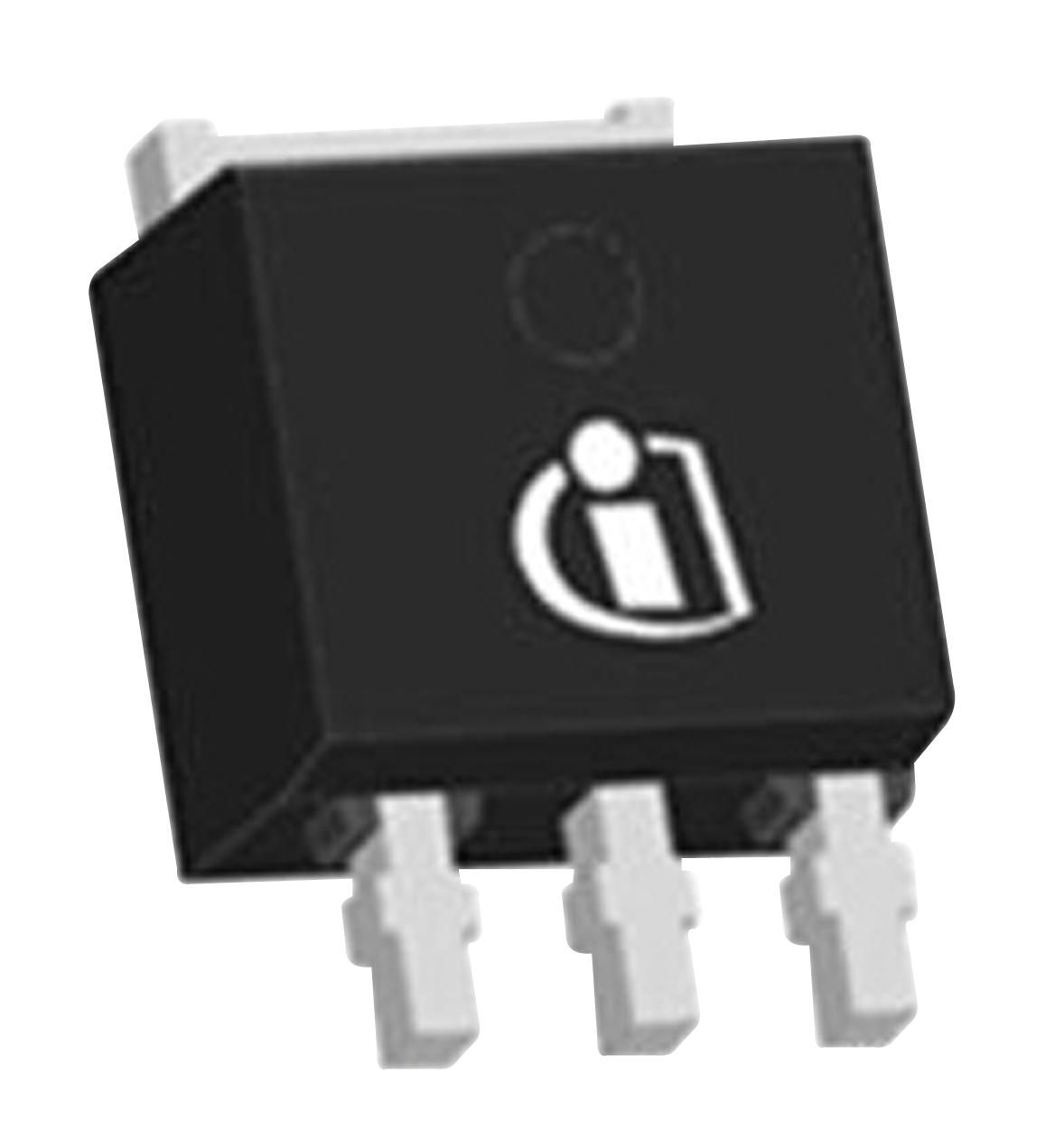

INFINEON IPSA70R1K2P7SAKMA1 High Voltage Power MOSFET
The CoolMOS™ P7 is a 700V superjunction power MOSFET designed for high efficiency and high power density applications. It features low switching losses, excellent thermal behavior, and high ESD ruggedness, making it ideal for consumer charger, adapter, lighting, and TV circuits. It supports high switching frequencies, enabling slim designs. Its optimized platform delivers cost-effective performance with reliable operation in flyback topologies, offering benefits such as low FOM Rosjon*Qg, Ros(on)*Eoss, and integrated ESD protection diode for enhanced durability and efficiency.
INFINEON IPSA70R1K2P7SAKMA1 High Voltage Power MOSFET Specifications:
- Maximum drain-source voltage: 700V
- Continuous drain current: 3.0A at Tj=100°C
- Pulsed drain current: 9.4A
- Ves (Gate threshold voltage): 3.5V typical
- Vdss (Drain-source breakdown voltage): 700V
- Rds(on): 224 milliohms at Vos=10V, Io=0.9A, Tj=150°C
- Gate source voltage: -30V to 30V
- Power dissipation: 25.0W at Tj=25°C
- Operating and storage temperature: -40°C to 150°C
- Control diode forward voltage: 0.9V typical, 1.1V max at Io=1.1A
- ESD class: HBM 1C
- Gate charge: Total 48nC, Qgs 0.8nC, Qua 1.9nC
- Switching times: Turn-on 12ns, Turn-off 60ns
- Thermal resistance junction-to-ambient: 62°C/W
- Isolation withstand voltage: rated for standard applications
- Body package: PG-TO 251 (70S1K2P7)
Buy the Infinion Series P7 High Voltage Power MOSFET: IPSA70R1K2P7S
Upgrade your high voltage switching applications with the Infinion Series P7 Power MOSFET. Designed for efficiency and durability in chargers, adapters, and lighting systems. Its low switching losses, high power density, and robust ESD protection ensure reliable operation and optimal performance. Ideal for slim and compact designs, this power transistor offers excellent thermal behavior and supports high-frequency switching, reducing energy waste and enhancing system reliability. Perfect for modern consumer electronics requiring high voltage handling with minimal losses and maximum durability.
Buy Infinion P7 series 700V power MOSFET now and experience unmatched reliability and performance for high-efficiency, slim consumer electronics designs.
Frequently Asked Questions
Where can I buy INFINEON IPSA70R1K2P7SAKMA1?
You can click on the BUY or RFQ button to purchase IPSA70R1K2P7SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPSA70R1K2P7SAKMA1?
You can download the IPSA70R1K2P7SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPSA70R1K2P7SAKMA1?
INFINEON
