INFINEON IPT65R105G7XTMA1 Power Transistor
The IPT65R105G7 is a 650V CoolMOS™ G7 power transistor designed for high-efficiency switching in PFC, server, telecom, UPS, and solar applications. It features lowest on-resistance, fast switching capability, and a TOLL package with Kelvin Source connection for improved thermal performance and reduced parasitic inductance. Suitable for industrial high-current topologies, this device offers enhanced thermal properties, RoHS compliance, and robust avalanche ruggedness. Ideal for efficient power conversion, it enables design of compact, reliable, and energy-efficient power supplies and inverter systems.
INFINEON IPT65R105G7XTMA1 Power Transistor Specifications:
- Voltage Rating: 650V
- Drain-source breakdown voltage: 650V
- On-resistance Rds(on): 0.228 Ohm
- Gate threshold voltage: 3 to 4 V
- Continuous drain current: 75 A
- Pulsed drain current: 75 A
- Avalanche energy: 89 mJ
- Storage temperature: -55°C to 150°C
- Operating junction temperature: -55°C to 150°C
- Package: PG-HSOF-8 TOLL surface-mount
- Thermal resistance, junction-ambient: 62°C/W on PCB
- Gate charge: Qg: 35 nc
- Reverse recovery charge: 3.7 pC
- Die attach process: Lead-free and qualified for industrial standards
- RoHS compliant, Pb-free during manufacturing
- Insulation withstand voltage: 1 min at specified conditions
- Soldering temperature (wave & reflow): up to 260°C

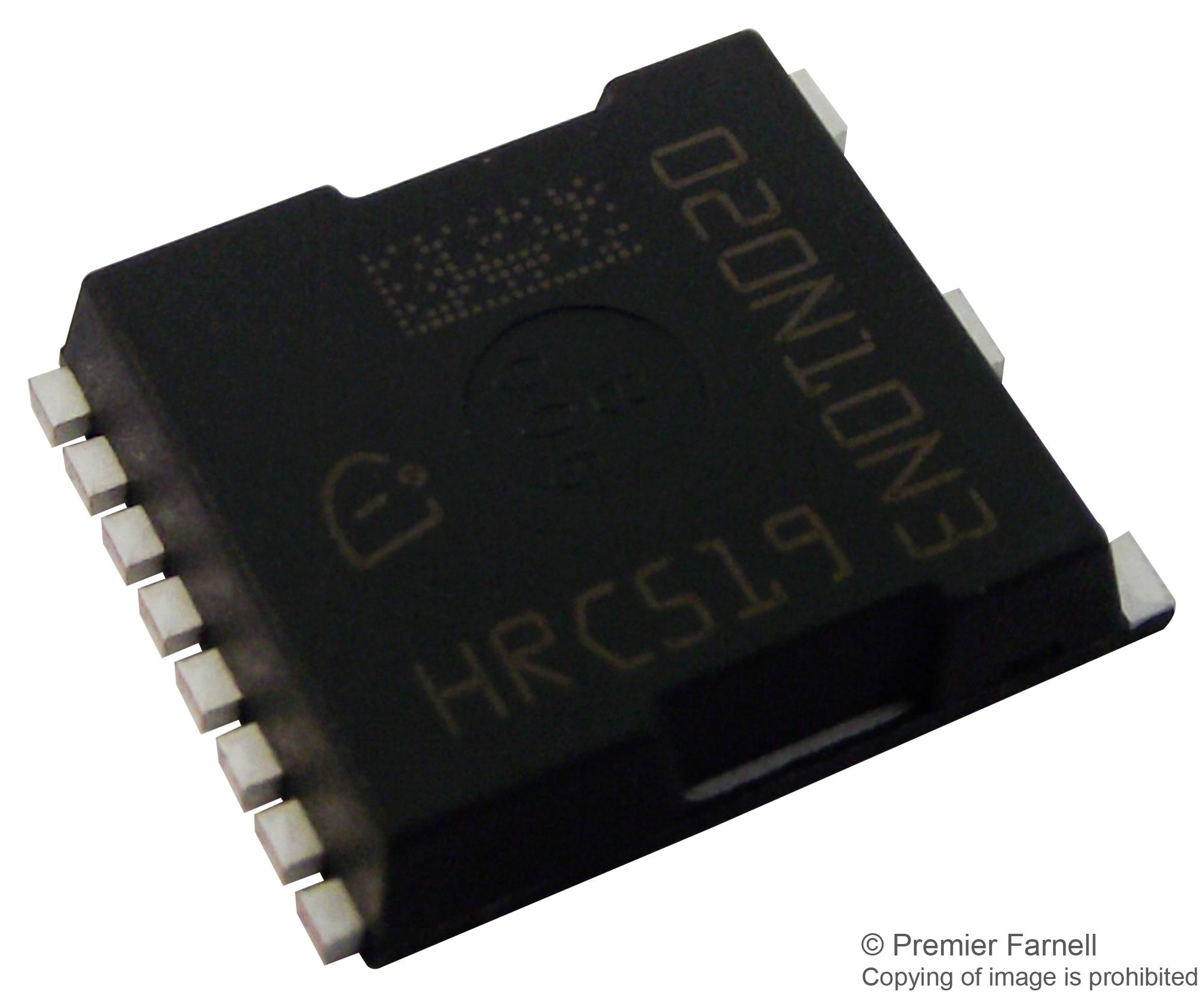

Buy the Buy Infineon IPT65R105G7 Power Transistor Part Number IPT65R105G7XTMA1 Online
Get your Infineon IPT65R105G7 high-voltage power transistor online today. Designed for high efficiency and fast switching, it features a robust TOLL packaging with Kelvin Source for enhanced thermal performance. Perfect for power supplies in computing, telecom, UPS, and solar systems, this device ensures reliable energy conversion, lower losses, and compact design. Purchase now to elevate your project’s power management capabilities with proven industrial-grade quality, RoHS compliance, and industry-standard specifications.
Order your Infineon Series IPT65R105G7 power transistor today and equip your power supply designs with energy-efficient, high-current switching modules.
Frequently Asked Questions
Where can I buy INFINEON IPT65R105G7XTMA1?
You can click on the BUY or RFQ button to purchase IPT65R105G7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPT65R105G7XTMA1?
You can download the IPT65R105G7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPT65R105G7XTMA1?
INFINEON
