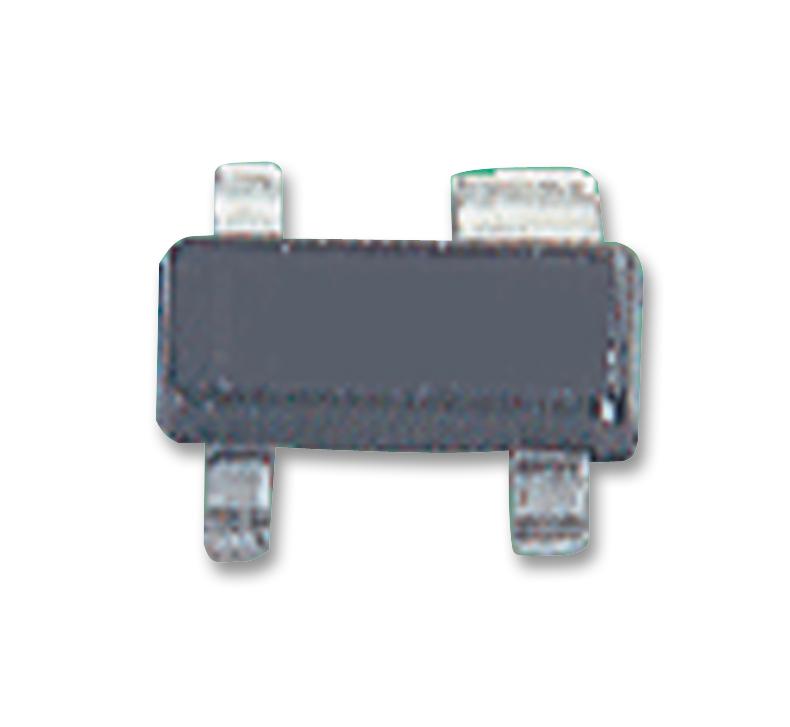

INFINEON BFP181E7764HTSA1 RF Transistor
The BFP181 is a low noise silicon bipolar RF transistor designed for broadband amplifiers requiring high gain and low noise figure at collector currents from 0.5 mA to 12 mA. It offers an RF frequency of 8 GHz with a minimum noise figure of 0.9 dB at 900 MHz, making it ideal for high-frequency applications. The device comes in a RoHS-compliant SOT143 package, is Pb-free, and is qualified according to AEC-Q101 standards. Its robust electrical and thermal characteristics ensure reliable performance in demanding RF and microwave circuits.
INFINEON BFP181E7764HTSA1 RF Transistor Specifications:
- Collector-emitter voltage VcEo 12 V
- Collector-base voltage VcBo 20 V
- Emitter-base voltage VeBo 2 V
- Collector current Io 20 mA
- Total power dissipation Prot 175 mW
- Junction temperature 150°C
- Thermal Resistance Rips 430 K/W
- Transition frequency fT 8 GHz
- Collector-base capacitance 0.4 pF
- Noise figure NFmin 0.9 dB at 900 MHz
- Maximum operating temperature 75°C Tj
- Storage temperature -55°C to 150°C Tst
- Package SOT143
- Pin configuration 1=cl2=e[3=B|4=e|-
- RoHS and Pb-free compliant
Buy the Buy Infineon BFP181 Part Number BFP181E7764HTSA1 Online
Purchase the Infineon BFP181 RF transistor online and enhance your high-frequency amplifier designs. This low noise, high-gain device operates at 8 GHz with a minimum noise figure of 0.9 dB at 900 MHz, making it perfect for broadband RF electronics. Its RoHS-compliant SOT143 package ensures easy integration into your circuits. With excellent thermal and electrical characteristics, this transistor supports reliable, high-performance operation in demanding environments. Order now to improve your RF system performance with this premium component.
Get Infineon BFP181 today—optimized for low noise broadband RF amplification and high gain in microwave applications.
Frequently Asked Questions
Where can I buy INFINEON BFP181E7764HTSA1?
You can click on the BUY or RFQ button to purchase BFP181E7764HTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BFP181E7764HTSA1?
You can download the BFP181E7764HTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BFP181E7764HTSA1?
INFINEON
