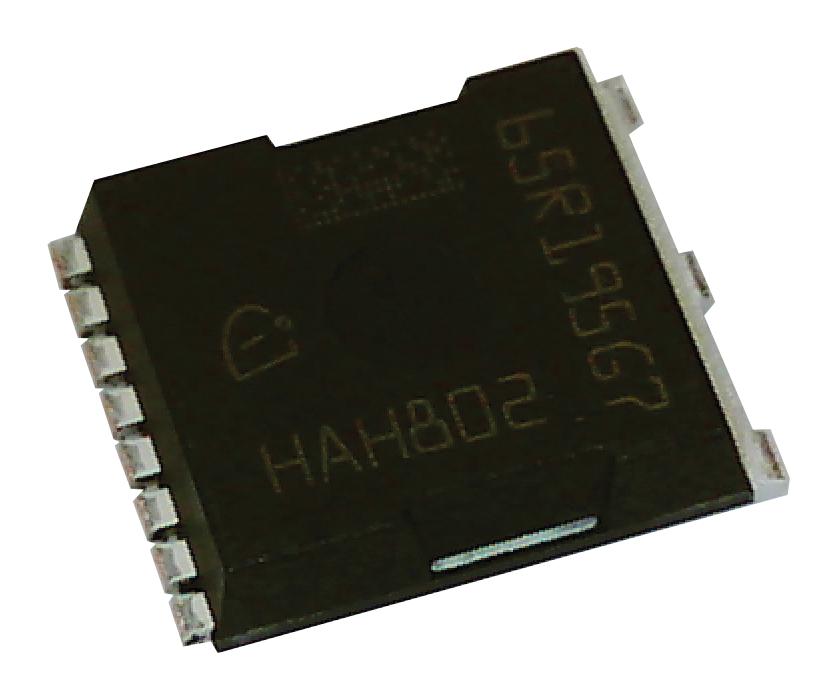

INFINEON IPT65R195G7XTMA1 Power Transistor
The IPT65R195G7 is a 650V CoolMOS™ G7 series power transistor featuring low on-resistance, fast switching capabilities, and high efficiency, suitable for high-current topologies such as PFC and PWM stages. Its TOLL package enables excellent thermal performance, Kelvin Source capability, and easy surface-mount installation, making it ideal for industrial, telecom, and power supply applications. This MOSFET offers improved FOM, reduced parasitic inductance, comprehensive RoHS compliance, and is qualified for demanding environments requiring reliable high-voltage switching.
INFINEON IPT65R195G7XTMA1 Power Transistor Specifications:
- Voltage Rating: 650 V
- Continuous Drain Current: Not specified (external datasheet detail)
- Pulsed Drain Current: 1 A at Tc=25°C
- Avalanche Energy: 48 mJ (single pulse)
- Gate Threshold Voltage: 3 - 4 V
- Rds(on) Max: 195 mΩ at Vgs=10 V
- Power Dissipation: 97 W at Tj=25°C
- Thermal Resistance, Junction to Ambient: 62 °C/W
- Gate Charge Qg: 20 nC
- Diode Forward Voltage Vso: 0.9 V
- Reverse Recovery Time: 500 ns
- Operating Junction Temperature Range: -55°C to +150°C
- Package: PG-HSOF-8 (TOLL surface-mount package)
- RoHS Compliant: Yes
- Body Diode Max Reverse Recovery Charge: 2.8 μC
- Avalanche Repetitive Energy: 0.24 mJ
Buy the Buy Infineon CoolMOS G7 Part Number IPT65R195G7 Online
Purchase the Infineon Power Transistor IPT65R195G7 online today to benefit from advanced 650V CoolMOS G7 technology, offering low Rds(on), fast switching, and high thermal efficiency. Perfect for high-current applications such as PFC and PWM stages in industrial, telecom, and power supply systems. Its TOLL package ensures easy surface-mount assembly, reduced parasitic inductance, and excellent thermal management. Get rapid delivery and solid technical support for your projects now. Experience superior performance with this high-quality, RoHS-compliant MOSFET designed for demanding environments.
Order your Infineon Series IPT65R195G7 power transistor today and enhance your high-current switching designs with reliable, efficient MOSFET performance.
Frequently Asked Questions
Where can I buy INFINEON IPT65R195G7XTMA1?
You can click on the BUY or RFQ button to purchase IPT65R195G7XTMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPT65R195G7XTMA1?
You can download the IPT65R195G7XTMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPT65R195G7XTMA1?
INFINEON
