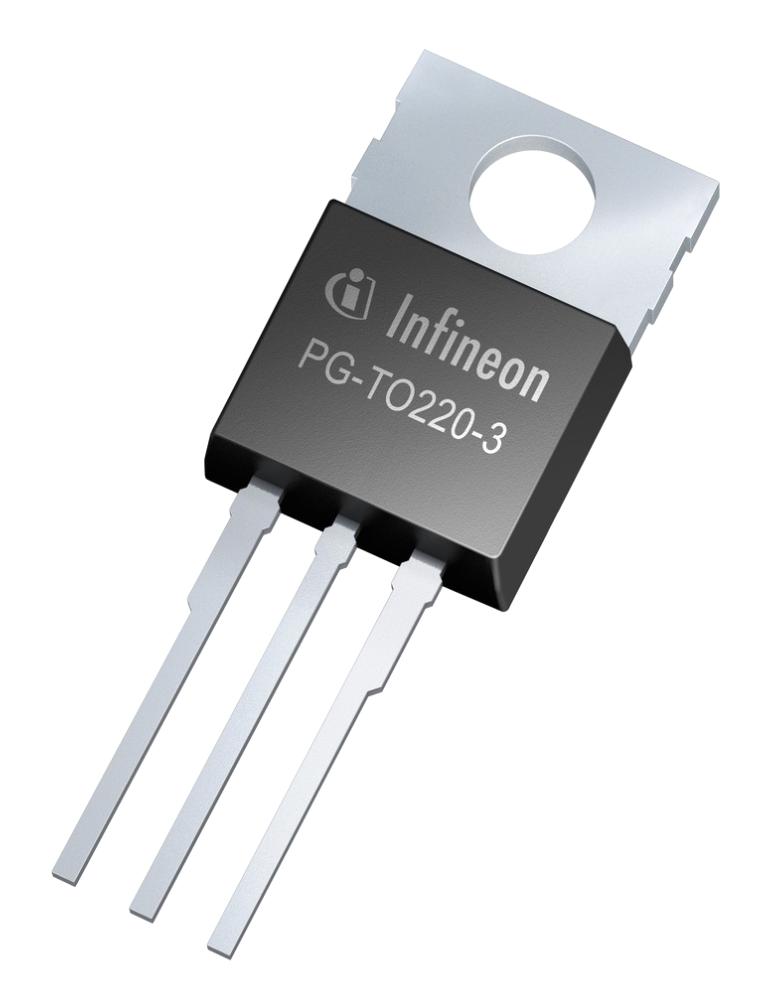

INFINEON TLE4274V50AKSA2 Voltage Regulator Module
The TLE 4274 is a low drop voltage regulator designed for automotive and industrial applications. It efficiently converts input voltages up to 40 V to stable output voltages of 5 V, 8.5 V, or 10 V with a maximum current of 400 mA. The device is RoHS compliant, short-circuit proof, and includes features such as reverse polarity protection and temperature regulation to ensure reliability in harsh environments. Available in various packages, it offers low power consumption, high stability, and is ideal for automotive electronics, sensors, and control systems.
INFINEON TLE4274V50AKSA2 Voltage Regulator Module Specifications:
- Output voltage 5 V, 8.5 V or 10 V
- Output voltage tolerance < +4%
- Current capability 400 mA
- Input voltage up to 40 V
- Package: TO220, TO252, TO263
- RoHS compliant
- Short-circuit proof
- Reverse polarity proof
- Temperature protection disables IC at overtemperature
- Input capacitor recommended for stability
- Output capacitor > 22 uF for stability with ESR < 3 Ω
- Drop voltage typically 250 mV at 250 mA
- Operational temperature range: -40°C to 150°C
- Thermal resistance varies by package (e.g., 65 KW for T0220)
Buy the Infineon TLE 4274 – Reliable Voltage Regulator for Industrial Applications
Upgrade your electronic designs with the TLE 4274 low drop voltage regulator from Infineon. It delivers stable output voltages of 5 V, 8.5 V, or 10 V with a maximum current of 400 mA. Designed for automotive and industrial use, it features RoHS compliance, short-circuit and reverse polarity protection, and temperature regulation for enhanced safety and durability. Its compact packages and low power consumption make it ideal for sensors, control systems, and automotive electronics. Purchase online today for reliable performance.
Buy Infineon TLE 4274 now and experience unmatched reliability and performance in automotive and industrial electronic systems.
Frequently Asked Questions
Where can I buy INFINEON TLE4274V50AKSA2?
You can click on the BUY or RFQ button to purchase TLE4274V50AKSA2 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE4274V50AKSA2?
You can download the TLE4274V50AKSA2 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE4274V50AKSA2?
INFINEON
