INFINEON IGCM06F60GAXKMA1 Three-Phase Inverter Module
The Product is a high-performance three-phase inverter module designed for motor control and industrial automation. It features reverse conducting IGBTs with integrated external gate drivers, overload protection, under-voltage lockout, and temperature monitoring. The module supports a maximum blocking voltage of 600V and continuous collector current of 6A, making it suitable for applications such as dish washers, refrigerators, and low power motor drives. Its rugged design ensures high reliability, thermal efficiency, and electrical isolation in compact packaging for precise control of AC and PM motors.
INFINEON IGCM06F60GAXKMA1 Three-Phase Inverter Module Specifications:
- Maximum blocking voltage: 600V
- Peak collector current: 6A
- Continuous collector current: 6A
- Switching frequency: up to 20 kHz
- Gate driver technology: SOI
- Isolation voltage: 2000V RMS
- Operating case temperature: -40°C to 100°C
- Storage temperature: -40°C to 125°C
- Power dissipation per IGBT: 23.6 W
- Junction temperature range: -40°C to 150°C
- Module size: Compact dual-in-line package
- RoHS compliant lead-free terminals
- Overcurrent shutdown and temperature monitoring included
- Over-voltage lockout at all channels
- Reverse conducting IGBTs with monolithic body diode

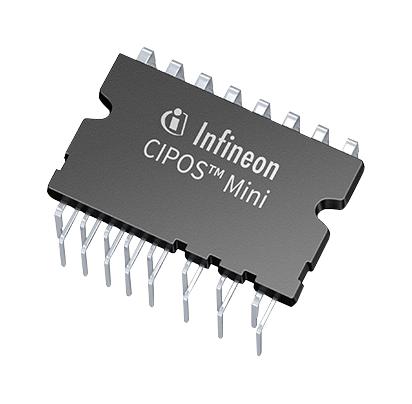

Buy the Buy Infineon CIPOS™ Part Number IGCM06F60GA Online
Enhance your power control systems with this high-performance three-phase inverter module featuring reverse conducting IGBTs, 600V voltage capacity, and integrated safety features. Designed for motor drives, automation, and appliance control, it offers excellent thermal management, electrical isolation, and protection mechanisms such as overload shutdown, over-voltage lockout, and temperature monitoring. Its rugged construction enables durable, reliable operation across diverse industrial and consumer applications, simplifying system integration while optimizing cost and performance.
Buy Infineon CIPOS™ IGCM06F60GA now and experience unmatched reliability and high-efficiency motor control in your automation systems.
Frequently Asked Questions
Where can I buy INFINEON IGCM06F60GAXKMA1?
You can click on the BUY or RFQ button to purchase IGCM06F60GAXKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IGCM06F60GAXKMA1?
You can download the IGCM06F60GAXKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IGCM06F60GAXKMA1?
INFINEON
