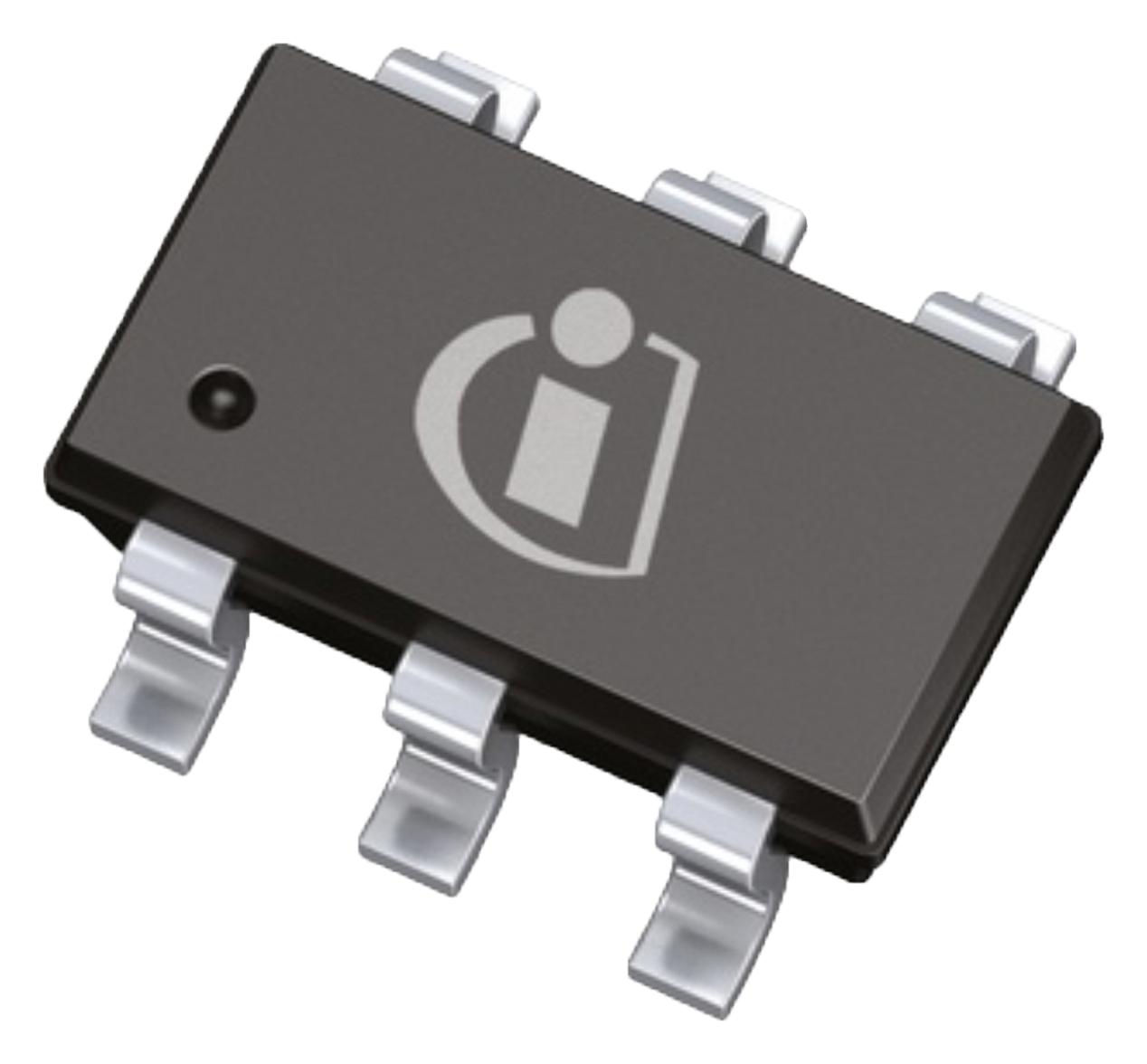

INFINEON TLI4966GHTSA1 Magnetic Sensor
The TLI4966G is a high-precision Hall-effect switch with direction detection, designed for magnetic sensing applications. It features low supply current, fast response times, and robust magnetic threshold detection, making it suitable for rotation sensors, position sensing, and motor control. The device offers accurate magnetic field measurement, integrated hysteresis, and reliable operation over a wide temperature range. Its compact package ensures easy integration into various electronic systems, supporting precise, real-time magnetic field sensing for industrial automation and consumer electronics.
INFINEON TLI4966GHTSA1 Magnetic Sensor Specifications:
- Supply Voltage: 2.7V to 18V
- Supply Current: 4 to 7 mA
- Output Voltage Saturation: 0.3 to 0.6 V (at 10 mA load)
- Output Leakage Current: 10 pA (at 18V reverse voltage)
- Switching Frequency: up to 320 kHz
- Delay Time: 50 to 200 ns
- Output Jitter: typical 4 ns at 1 kHz square wave
- Temperature Range: -40°C to +125°C
- Magnetic Operating Point: +40 to -40 mT
- Hysteresis: 10 to 20 mT
- Package Type: PG-TSOP6-6-9
- Distance between chip and package surface: approximately 0.56 mm
- Thermal Resistance: 100 K/W
- Magnetic Offset: ±2.0 mT
- Magnetic Thresholds: ±2.0 mT
- Timing and magnetic characteristics ensure reliable detection for motor control and position sensing.
Buy the Buy Infineon TLI4966G High-Precision Magnetic Sensor Part Number TLI4966GHTSA1 Online
Secure your Infineon TLI4966GHTSA1 magnetic sensor now through our online store. This high-precision Hall-effect switch provides accurate magnetic field detection, fast response times, and reliable operation across wide temperature ranges, making it ideal for rotation sensing, position detection, and motor control. Its compact design ensures easy integration into various electronic systems, improving performance in industrial automation, consumer electronics, and automotive applications. Purchase today to benefit from quick delivery and technical support, ensuring your project’s success.
Order your Infineon TLI4966GHTSA1 high-precision Hall-effect sensor today and enhance your magnetic sensing applications with reliable, fast-response technology.
Frequently Asked Questions
Where can I buy INFINEON TLI4966GHTSA1?
You can click on the BUY or RFQ button to purchase TLI4966GHTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLI4966GHTSA1?
You can download the TLI4966GHTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLI4966GHTSA1?
INFINEON
