INFINEON FP35R12W2T4B11BOMA1 Power Module
This high-performance IGBT module is designed for inverter and motor drive applications, featuring trench and fieldstop technology for enhanced efficiency. It offers a collector-emitter voltage of up to 1200 V, continuous collector current of 54 A at 25°C, and a total power dissipation of 215 W at 25°C. The module includes a high peak current capacity, optimized switching characteristics, and robust thermal management. Ideal for industrial automation, renewable energy, and motor control, it ensures reliable operation under demanding conditions with excellent thermal and electrical performance.
INFINEON FP35R12W2T4B11BOMA1 Power Module Specifications:
- Collector-Emitter Voltage: 1200 V
- Continuous Collector Current: 54 A at 25°C
- Total Power Dissipation: 215 W at 25°C
- Gate-Emitter Peak Voltage: +120 V
- Collector-Emitter Saturation Voltage: 1.85 - 2.25 V at 35 A
- Gate Threshold Voltage: 52 - 64 V at 1.20 A
- Gate Charge: 0.27 μC
- Internal Gate Resistor: 9.0 Ω at 25°C
- Input Capacitance: 2.00 nF at 1 MHz
- Reverse Capacitance: 0.07 nF at 1 MHz
- Collector-Emitter Rest Current: 1.0 mA at 1200 V
- Thermal Resistance junction to case: 0.60 - 0.70 K/W
- Operating Temperature: -40°C to 150°C
- Isolation Test Voltage RMS: 25 kV
- Module Stray Inductance: 30 nH
- Weight: 39.9 g

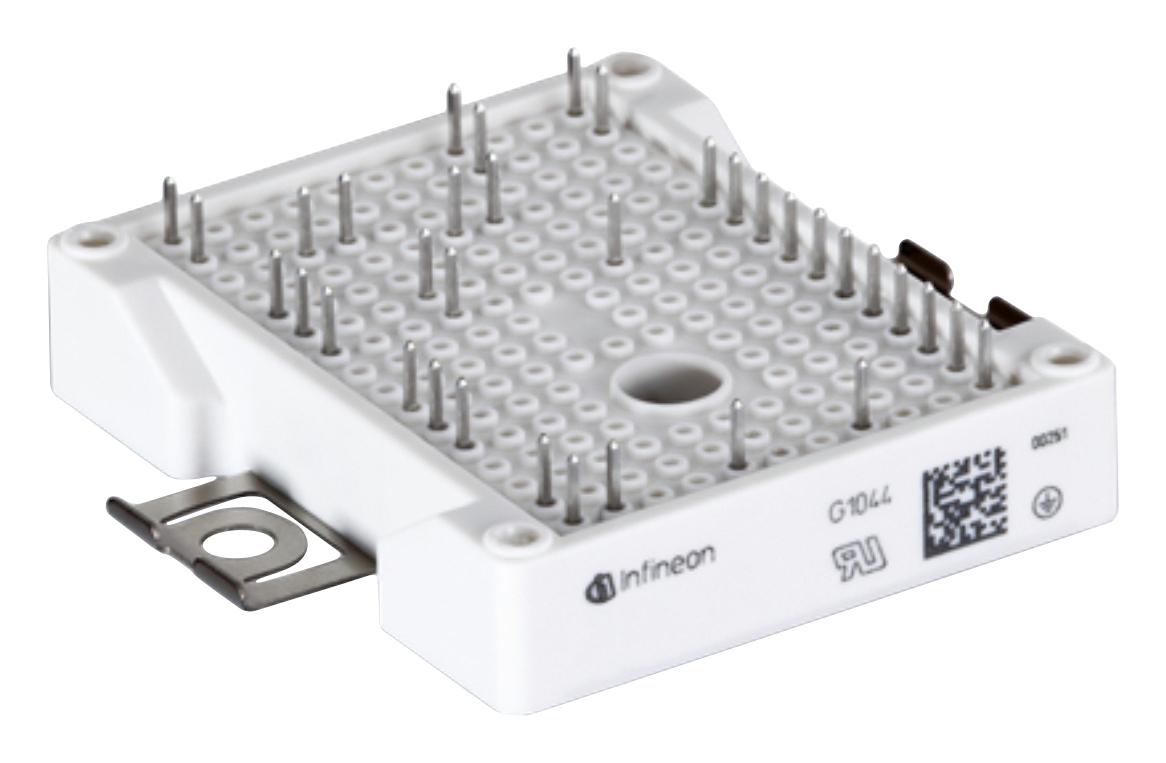

Buy the Infineon Series EasyPIM 2B IGBT Module: FP35R12W2T4
Experience reliable performance with the Infineon FP35R12W2T4 power module, engineered for efficient switching and thermal stability. Designed for inverter and motor drive systems, it delivers up to 1200 V and 54 A continuous current. Its advanced trench technology ensures high efficiency and minimal switching losses, making it ideal for industrial automation, renewable energy, and heavy machinery. Easy to install with excellent thermal management, this module provides durable and consistent operation in demanding environments. Order online today and enhance your application performance with genuine Infineon quality.
Get Infineon FP35R12W2T4 today—built for precision and long-lasting durability in high-power inverter applications.
Frequently Asked Questions
Where can I buy INFINEON FP35R12W2T4B11BOMA1?
You can click on the BUY or RFQ button to purchase FP35R12W2T4B11BOMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part FP35R12W2T4B11BOMA1?
You can download the FP35R12W2T4B11BOMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of FP35R12W2T4B11BOMA1?
INFINEON
