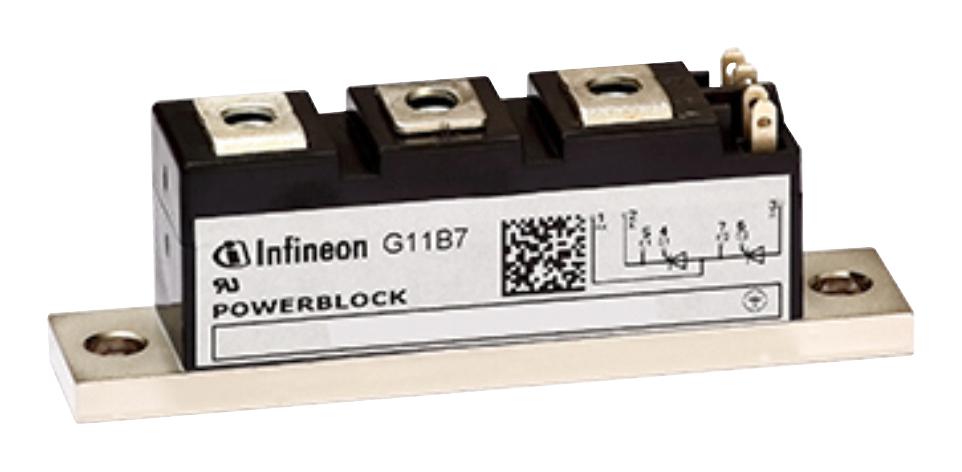

INFINEON TT61N16KOFHPSA1 Power Thyristor Module
This phase control thyristor module is designed for power electronics applications, providing high voltage and current handling capabilities. It features a maximum repetitive peak forward off-state voltage of 1000 V and a maximum repetitive peak reverse voltage of 1000 V, ensuring reliable performance in industrial control systems. The module has a maximum RMS on-state current of 60 A at 40°C, with thermal resistance values tailored for natural or forced cooling configurations. Its robust construction includes a Si-pellet with pressure contact and UL listing, suitable for demanding power switching applications.
INFINEON TT61N16KOFHPSA1 Power Thyristor Module Specifications:
- Maximum repetitive peak forward off-state voltage: 1000 V
- Maximum repetitive peak reverse voltage: 1000 V
- Maximum RMS on-state current: 60 A at 40°C
- Maximum junction temperature: 125°C
- Operating temperature: -40°C to +125°C
- Storage temperature: -40°C to +130°C
- Thermal resistance junction to case: varies between 0.0218°C/W and 0.1886°C/W depending on cooling
- Isolation test voltage RMS at 50 Hz: (value not specified, typically 2.5 kV)
- Controlling terminal: DIN 46 244 A28x08
- Internal insulation: Yes
- Mounting torque for electrical connections: tolerance +10%
- Weight: approximately 160 g
- Vibration resistance: 50 Hz
- UL listed: E 83336
- Case type: see annex page 3, Si-element with pressure contact
- Maximum case temperature: 125°C
- Cooling: natural or forced (air cooling, heatsink type KM14)
- Peak gate trigger current: 6 V, trigger voltage: approximately 6 V
- Recovery charge: specific for each conduction angle, detailed in datasheet
- Transient thermal impedance varies with cooling method
Buy the Buy Power Electronics Phase Control Thyristor Part Number TT61N16KOFHPSA1 Online
Get your Power Thyristor Module online now and benefit from high voltage and current capabilities vital for industrial power control. Designed for reliable operation at 1000 V and up to 60 A RMS on-state current, it features UL certification and excellent thermal management options for natural or forced cooling. Its compact, robust construction with pressure contact Si-pellet ensures durability in demanding environments. Perfect for power switching, control systems, and industrial automation, order today for fast delivery and dependable performance.
Order your Power Electronics Phase Control Thyristor TT61N16KOFHPSA1 today and ensure reliable power switching with robust electrical and thermal performance.
