INFINEON TLS208D1LDVXUMA1 Voltage Regulator
The TLS208D1 is a compact monolithic linear post regulator designed for automotive and industrial applications. It provides an adjustable output voltage from 0.8 V to 5.25 V with a high precision of ±2%. Features include a low dropout voltage of typical 400mV at 400mA load, high power supply ripple rejection of 62dB at 10kHz, enable functionality, undervoltage reset with adjustable threshold, overload, short circuit, and overtemperature protection. The device operates over a wide temperature range from -40°C to 150°C, ensuring reliability in harsh environments. Packaged in small PG-DSO-8 or PG-TSON10 packages, it is RoHS compliant and suitable for automotive electronics as a post regulator and other stabilizing applications.
INFINEON TLS208D1LDVXUMA1 Voltage Regulator Specifications:
- Output Voltage Range: 0.8 V to 5.25 V, fixed variants at 3.3 V
- Output Voltage Accuracy: ±2%
- Output Current: Static up to 800 mA
- Dropout Voltage: Typical 400 mV at 400 mA
- Input Voltage Range: 2.7 V to 18 V
- Enable Functionality: Enabled/disabled via EN pin (low disabled, high enabled)
- Reset Threshold: Adjustable via external resistor divider or fixed, select variants
- Ripple Rejection: Typ. 62 dB at 10 kHz
- Operating Temperature Range: -40°C to 150°C
- Package Types: PG-DSO-8 (Exposed Pad), PG-TSON10
- Thermal Resistance (Junction to Ambient): Approx. 42 K/W (PG-DSO-8)
- Protection Features: Overcurrent limit, short circuit, overtemperature shutdown, undervoltage reset
- RoHS Compliant, suitable for automotive applications
- Input Capacitor: Minimum 220 nF ceramic recommended for line stability
- Output Capacitor: Specified ESR range for stability, typical 1 µF ceramic or similar
- Pin configuration includes input, ground, enable, feedback/reset, and output pins

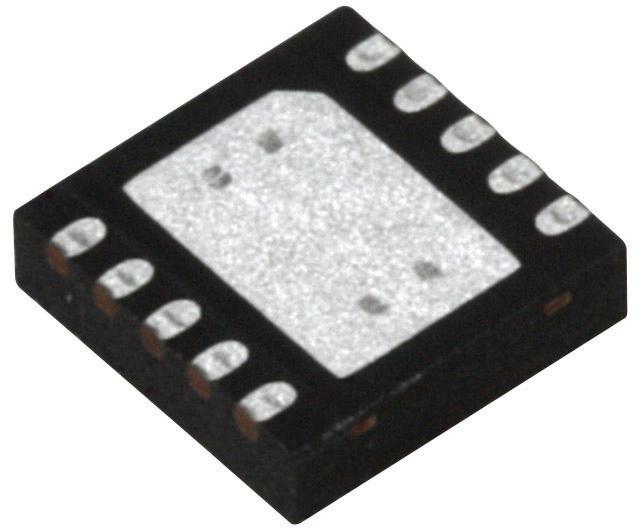

Buy the Infineon Series TLS208D1 Voltage Regulator: TLS208D1LDV
Purchase the Infineon Series TLS208D1LDV voltage regulator online today and ensure your electronic designs are stabilized with high precision. Its adjustable output from 0.8 V to 5.25 V, combined with low dropout voltage and high ripple rejection, makes it ideal for automotive and industrial applications. The device offers overcurrent, short circuit, and overtemperature protection, operating reliably over a wide temperature range from -40°C to 150°C. Compact in small packages like PG-DSO-8 and PG-TSON10, it guarantees dependable power management for demanding environments.
Order your Infineon Series TLS208D1LDV today and secure your automotive and electronic projects with reliable, high-performance voltage regulation.
Frequently Asked Questions
Where can I buy INFINEON TLS208D1LDVXUMA1?
You can click on the BUY or RFQ button to purchase TLS208D1LDVXUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLS208D1LDVXUMA1?
You can download the TLS208D1LDVXUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLS208D1LDVXUMA1?
INFINEON
