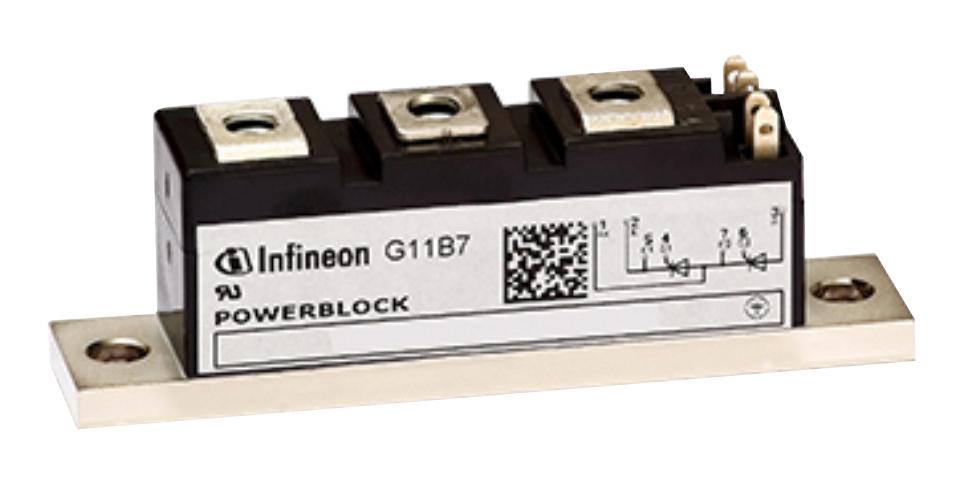

INFINEON TT104N14KOFHPSA1 Thyristor Module
The phase control thyristor module TT104N is designed for industrial power electronics applications, offering reliable switching and control capabilities. It supports high current loads with a maximum RMS on-state current of 75A and a maximum peak reverse voltage of 40V. The module features internal and external thermal resistance suited for forced and natural cooling configurations, and it operates within a temperature range of -40°C to 140°C. Built with pressure contact silicon elements, it ensures robust insulation and mechanical stability for demanding industrial environments.
INFINEON TT104N14KOFHPSA1 Thyristor Module Specifications:
- Maximum RMS on-state current: 75 A
- Peak reverse voltage: 40 V
- Maximum junction temperature: 140°C
- Operating temperature range: -40°C to +140°C
- Thermal resistance junction-to-case: varies with cooling method
- Control terminals: DIN 46 244 A28x08
- Weight: approximately 160 g
- Peak gate trigger current: 25°C, 6V
- Gate trigger voltage: 25°C, 6V
- Holding current: at 25°C, vo = 6V
- Latching current: at 25°C, vo = 6V
- Mechanical mounting torque: +/- 15%
- Control and terminal connection torque: +/- 10%
- Vibration resistance: 50 Hz according to Al E 83336
- Case with pressure contact silicon element for robustness
Buy the EUPEC TT104N – Reliable Thyristor Module for Industrial Applications
Purchase the EUPEC Thyristor Module TT104N online today and experience dependable power control for your industrial applications. Designed for high current loads with a maximum RMS on-state current of 75A, it ensures robust operation in demanding environments. Its thermal management options support both natural and forced cooling strategies, operating efficiently within -40°C to 140°C temperature ranges. With pressure contact silicon elements, it guarantees durability and stability. Secure your supply of high-quality semiconductor components quickly and easily through our online store to meet your project deadlines with confidence.
Order your EUPEC TT104N thyristor module today and ensure reliable power switching in your industrial projects with our high-performance semiconductor solutions.
Frequently Asked Questions
Where can I buy INFINEON TT104N14KOFHPSA1?
You can click on the BUY or RFQ button to purchase TT104N14KOFHPSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TT104N14KOFHPSA1?
You can download the TT104N14KOFHPSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TT104N14KOFHPSA1?
INFINEON
