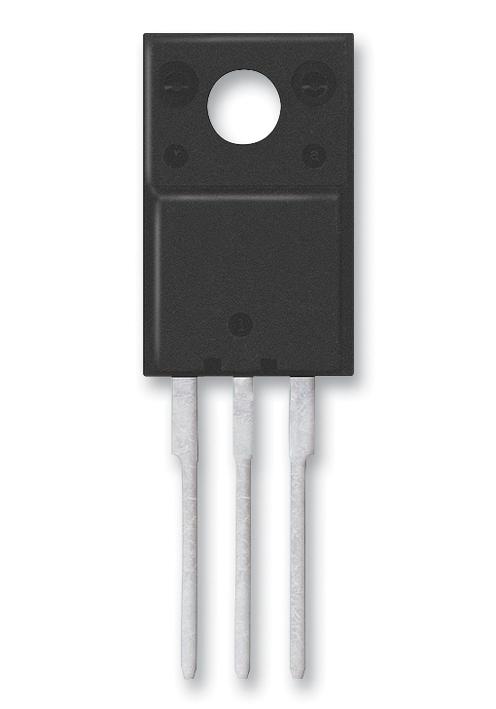

INFINEON IPA80R750P7XKSA1 High-Voltage Power Transistor
The 800V CoolMOS P7 Power Transistor is a high-performance super junction MOSFET designed for industrial applications, LED lighting, power supplies, and solar inverters. It features best-in-class FOM Rosjon, reduced Qg, Ciss, Coss, integrated Zener diode ESD protection, and high reliability conforming to JEDEC standards. The transistor enables higher power density designs, lower BOM costs, and easier paralleling, making it ideal for hard and soft switching topologies in LED lighting, chargers, adapters, HVAC, and PFC stages, ensuring efficient energy management and system robustness.
INFINEON IPA80R750P7XKSA1 High-Voltage Power Transistor Specifications:
- Drain-source breakdown voltage Vds: 800 V
- Gate threshold voltage Vgs: 3 V to 3.5 V
- Continuous drain current Io: 16 A
- Pulsed drain current Ip,pulse: 17 A
- Avalanche energy Ens: 16 mJ
- Power dissipation Ptot: 27 W
- Maximum operating temperature Tj: -55°C to 150°C
- Thermal resistance junction-case Rθjc: 47 °C/W
- Thermal resistance junction-ambient Rθja: 80 °C/W
- Gate charge Qg: 17 nc
- Drain-source on-state resistance Rds(on): 1.66 Ω
- Reverse diode forward voltage Vsd: 0.9 V
- Reverse recovery time trr: 630 ns
- Insulation withstand voltage Vds insulation: 2500 V
- Gate resistance Re: 1 Ω
- Vesith: 3 V (typical)
- Test conditions include Tj = 25°C, Vgs = 10 V, Id = 2.7 A, Vos = 500 V, and various pulsed and static states.
- Package: PG-TO 220 FullPAK
Buy the Infineon IPA80R750P7 – Reliable High-Voltage Power MOSFET for Industrial Applications
Get the Infineon IPA80R750P7 Power MOSFET online today to optimize your industrial and solar applications. This 800V super junction transistor offers superior efficiency, high reliability, integrated ESD protection, and easy paralleling, making it ideal for LED lighting, chargers, PFC stages, and renewable energy systems. Designed for easy driveability and high power density, it helps reduce BOM costs and simplifies system design while ensuring robust operation in demanding environments. Purchase now and enhance your project’s performance with trusted semiconductor quality.
Order your Infineon series IPA80R750P7 high-voltage power transistor today and enhance your industrial power projects with dependable efficiency and robust design.
Frequently Asked Questions
Where can I buy INFINEON IPA80R750P7XKSA1?
You can click on the BUY or RFQ button to purchase IPA80R750P7XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPA80R750P7XKSA1?
You can download the IPA80R750P7XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPA80R750P7XKSA1?
INFINEON
