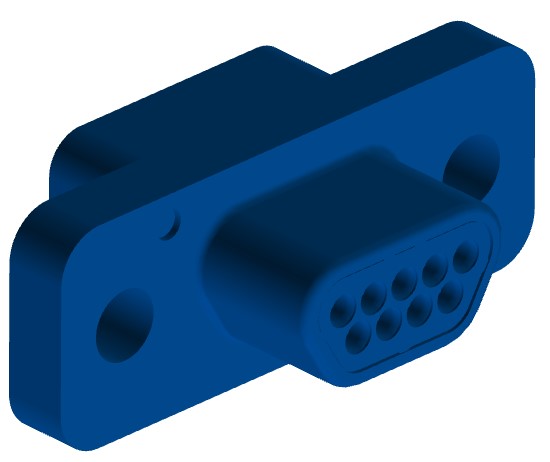

ITT CANNON 0965100040 9 Contact Micro D Connector
The ITT CANNON 096510-0040 Micro D subconnector is a robust, metal-shelled connector designed for reliable signal transmission in demanding environments. It features a 9-contact arrangement with gold-plated copper alloy contacts and a friction coupling mechanism. The aluminum shell provides durability, while the yellow chromate/cadmium over nickel finish offers corrosion resistance. Suitable for applications requiring a compact and durable connector solution.
ITT CANNON 0965100040 9 Contact Micro D Connector Specifications:
- Series: Micro "D" Metal Shell
- Arrangement: 9 Contact
- Gender: Pin
- Contact Material: gold plated copper alloy
- Contact Type: crimp
- Contact Resistance: 8 milliohms max.
- Termination Type: 18" Min, M16874/4 #26AWG, Colored Code
- Shell Material: Aluminum
- Shell Finish: Yellow Chromate/Cadmium over Nickel
- Insulator Material: liquid crystalline polymer (contact size 9 to100), Diallyl phthalate (contact arrangements 7C2 or 24C4)
- Hardware: HARDWARE=B .092 dia mtg holes
- Coupling: Friction Coupling
- Current Rating: 3 A max.
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,00' altitude
- Insulator Resistance: 5000 megohms min.
- Thermal Shock: -55°/+125°
- Physical Shock: 50 G's, 3 axes, 6 millisecond duration sawtooth pulse
- Vibration: 20G's, 10-2000 Hz. 12 hours
- Durability: 500 cycles of mating and unmating, 500 CPH max.
- Moisture Resistance: Insulator resistance > 100 megohms
- Salt Spray: 48 hours
Buy the 096510-0040 ITT CANNON 9 Contact Micro D Connector | myMectronic
Purchase the ITT CANNON 096510-0040 Micro D Subconnector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ITT CANNON 0965100040?
You can click on the BUY or RFQ button to purchase 0965100040 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 0965100040?
You can download the 0965100040 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 0965100040?
ITT CANNON
