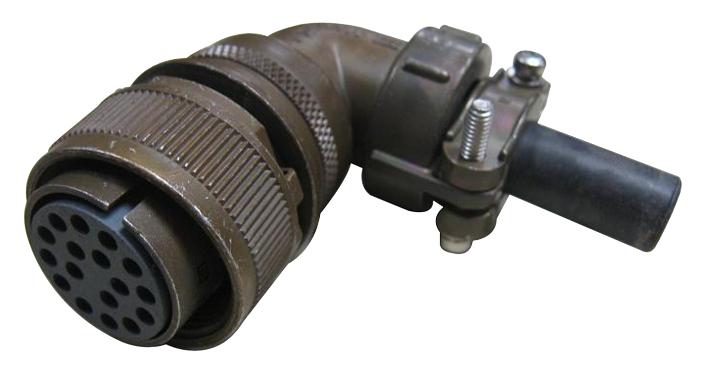

ITT CANNON CA3108E2029SF137 Sealed Circular Connector
The product is a high-performance, IP69K-rated sealed circular connector with universal endbell, designed for harsh industrial environments. It features bayonet coupling for quick mating and provides reliable water and dust resistance up to 69K ratings, suitable for water jet cleaning and demanding applications. Made from aluminum alloy with olive drab chromate or optional zinc cobalt plating, the connector has polychloroprene and FKM insulators for temperature resilience from -30°C to +200°C. It supports a wide range of contact configurations, crimp and solder terminations, and is optimized for safety, durability, and ease of installation in demanding sectors like military, aerospace, and industrial equipment.
ITT CANNON CA3108E2029SF137 Sealed Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate or zinc cobalt plating
- Temperature Range: -30°C to +200°C (FKM insulator) / -55°C to +125°C (standard insulator)
- Sealing Degree: IP69K (water jet resistant), also IP67/IP68 compatible with universal endbell and O-ring
- Coupling Mechanism: Bayonet, quick snap-in with audible and visual confirmation
- Electrical Ratings: Max operating voltage of 85 V DC, 60 V AC; Current ratings up to 245 A depending on contact size
- Contacts: Available in crimp or solder, made of copper alloy with silver or gold finish, compatible with MIL standards
- Environmental Resistance: Vibration tested to 200 m/s², salt spray tested with different platings (A240, A232, etc.), corrosion-resistant coating
- Insulation & Grommets: High temperature FKM, polychloroprene, and customized sealing options
- Physical: Shell sizes from 10SL to 36, Contact configurations up to 65 circuits, quick disconnect design
- Installation: Suitable for panel mounting, with threaded or through-hole flange options, easy to connect/disconnect even under harsh conditions
Buy the ITT IP69K – Reliable Sealed Circular Connector for Industrial Applications
Order the ITT IP69K sealed circular connector today through our online store. Designed for rugged industrial and military use, this connector features quick bayonet coupling, high temperature resistance, IP69K water jet sealing, and corrosion protection. Its aluminum shell with durable plating ensures long-lasting performance. Compatible with a variety of contact types and configurations, it's ideal for demanding machinery, automation systems, and off-road vehicles. Ensure your application’s reliability—purchase now and benefit from fast delivery, expert support, and industry-leading quality standards.
Buy ITT IP69K Sealed Circular Connector now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy ITT CANNON CA3108E2029SF137?
You can click on the BUY or RFQ button to purchase CA3108E2029SF137 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA3108E2029SF137?
You can download the CA3108E2029SF137 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA3108E2029SF137?
ITT CANNON
