ITT CANNON DAMM15PE D-Sub Connector
The D*M Series high-reliability D-Sub connectors are designed with 15 gold-over-nickel copper alloy contacts suitable for wire gauge ranges from AWG 20 to 28. They support 500 mating cycles and have a dielectric withstand voltage of 1000 VAC at sea level. Constructed with steel shells finished with yellow chromate over zinc and insulated with flame-retardant thermoplastic UL 94V-0 in black, these connectors operate within -55°C to +150°C. Ideal for robust electronics and communication systems, they ensure secure connections and durability under harsh conditions.
ITT CANNON DAMM15PE D-Sub Connector Specifications:
- Contact Arrangement: 15 contacts size 20
- Wire Gauge Range: AWG 20-28
- Mating Cycles: 500
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 7.5 A max
- Contact Resistance: 7.5 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Type: Straight PCB
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120-inch (3.05mm) through hole

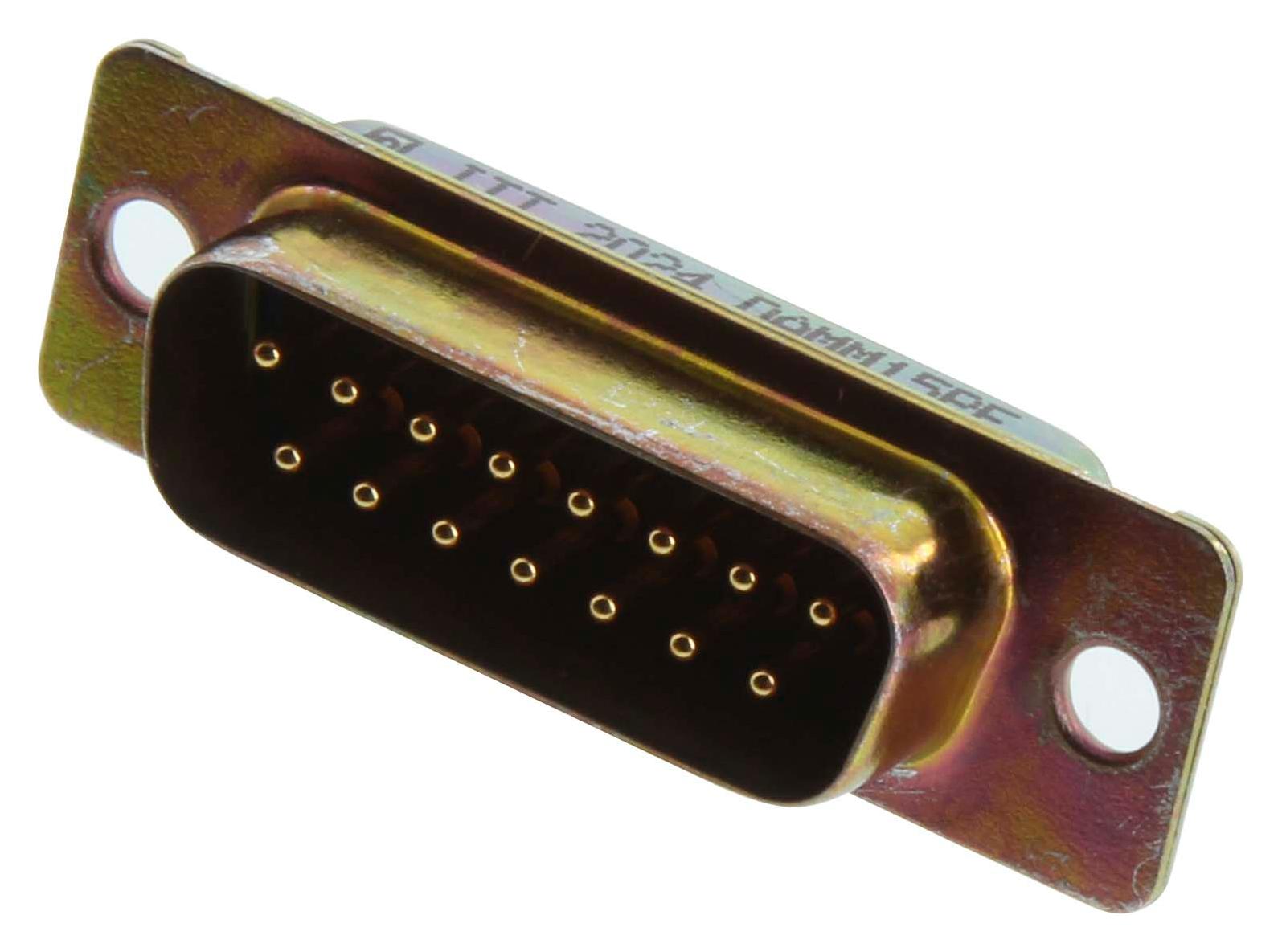

Buy the Buy Cannon D-Sub Part Number DAMM15PE Online
Purchase the Cannon D-Sub connector DAMM15PE online today for a robust, high-quality electrical connection solution. Designed with 15 gold-over-nickel copper contacts, this connector supports 500 mating cycles and handles voltages up to 1000 VAC. Its steel shell with yellow chromate finish provides excellent durability, while thermoplastic insulation ensures safety and performance in harsh environments. Ideal for industrial, communications, and aerospace applications, this connector guarantees secure wiring and long-lasting reliability, making it a smart choice for your projects.
Buy Cannon DAMM15PE now and ensure high durability with gold-plated contacts and steel shell for reliable electronic connections.
Frequently Asked Questions
Where can I buy ITT CANNON DAMM15PE?
You can click on the BUY or RFQ button to purchase DAMM15PE from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAMM15PE?
You can download the DAMM15PE datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAMM15PE?
ITT CANNON
