ITT CANNON KPSE06F2255S Miniature Circular Connector
The KPSE series miniature circular connectors from ITT Cannon are MIL-DTL-26482 Series I equivalent straight plugs with 55 contacts. These connectors feature a positive three-point quick disconnect bayonet coupling, five keyway polarization, and a high contact density arrangement suitable for harsh environments. Designed for durability, they withstand extreme shock, vibration, and exposure, making them ideal for industrial and commercial applications. The high-performance crimp connectors are quick to assemble, utilizing clip-in contacts and insulators, and are fully intermateable, intermountable, and interchangeable with all MIL-DTL-26482 connectors. They are environmentally sealed (IP68 rated), operate from -55°C to +125°C, and support up to 500 mating cycles. Construction includes an aluminum alloy body with olive drab chromate plating, copper alloy contacts with gold plating, and resilient neoprene insulators, ensuring reliable performance in demanding conditions.
ITT CANNON KPSE06F2255S Miniature Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate plating
- Contact Material: Copper alloy with gold plating for sizes 12 & 16, tin for size 20
- Number of Contacts: 55 with size 20, 22-55 arrangement
- Contact Type: Crimp contacts
- Operating Temperature: -55°C to +125°C
- Water Tightness: IP67/IP68 according to DIN 40 050, 0.2 bar pressure over 48 hours
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Mating Cycles: Minimum 500
- Insulator Material: Polychloroprene
- Test Voltage: 1500 Vrms
- Operating Voltage: According to DIN VDE 410, IEC 60364-4-41 for voltages >50V
- Resistance: Insulator resistance 5000 MOhm
- Sealing: IP67 according to DIN 40 050

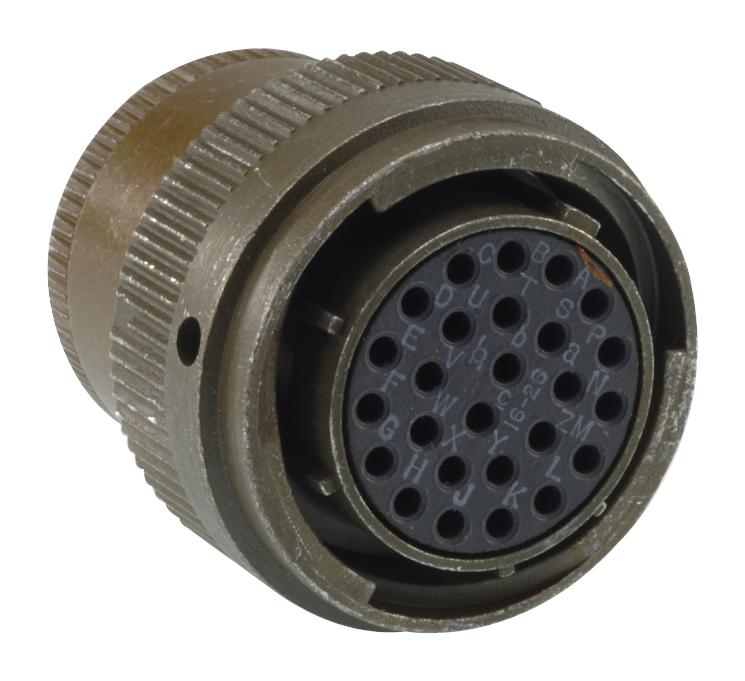

Buy the Cannon Series 26482 MIL Connector: KPSE06F2255S
Purchase the Cannon miniature circular connector KPSE series with 55 contacts online today. Designed for demanding industrial applications, this IP68 sealed connector withstands extreme temperatures from -55°C to +125°C. Its robust aluminum body with olive drab chromate plating, gold-plated copper contacts, and neoprene insulators provide exceptional durability, vibration resistance, and environmental sealing. Support up to 500 mating cycles, making it ideal for harsh conditions. Easy to assemble with clip-in contacts, fully interchangeable, and compatible with MIL-DTL-26482 standards, offering reliable performance for critical projects.
Order your Cannon Series 26482 MIL connector KPSE06F2255S today and ensure reliable, high-performance connection in harsh environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPSE06F2255S?
You can click on the BUY or RFQ button to purchase KPSE06F2255S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPSE06F2255S?
You can download the KPSE06F2255S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPSE06F2255S?
ITT CANNON
