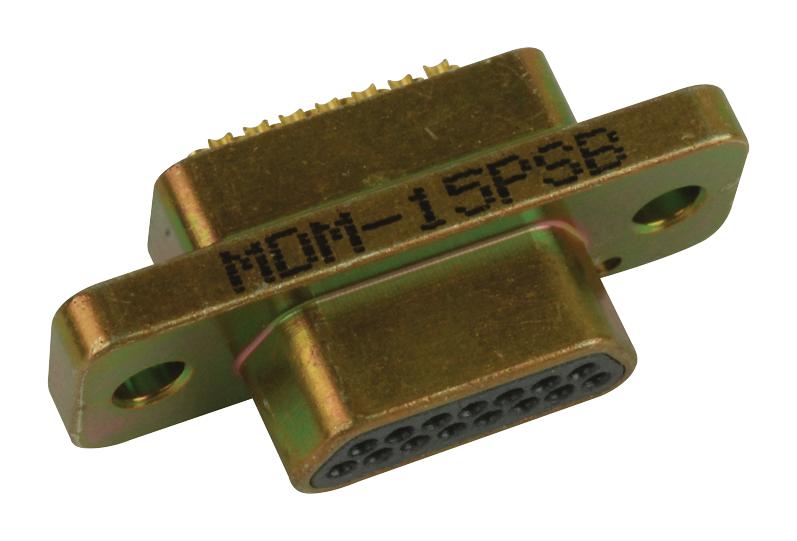

ITT CANNON MDM15PSBA174 Micro Connector
The MICRO series MDM-15PSB-A174 is a high-quality micro connector featuring a metal shell and a 15-contact arrangement, ideal for precise electronic applications. Constructed with a gold-plated copper alloy contact, it provides low contact resistance of 8 milliohms, and is designed with a solder pot termination for easy wiring with #26AWG harness. The Aluminum shell with electroless nickel finish offers durability, while insulation materials like liquid crystalline polymer and diallyl phthalate ensure excellent electrical insulation and thermal stability. It supports a maximum current of 3A and withstands voltages up to 600 VAC at sea level and 150 VAC at high altitudes, making it reliable for demanding environments.
ITT CANNON MDM15PSBA174 Micro Connector Specifications:
- Contact Material: Gold-plated copper alloy
- Contact Resistance: 8 milliohms max
- Termination Type: Solder pot for #26AWG wire
- Shell Material: Aluminum
- Shell Finish: Electroless Nickel
- Insulator Material: Liquid crystalline polymer (contact size 9 to 100), Diallyl phthalate (contacts 7C2 or 24C4)
- Hardware: B .092 inch diameter mounting holes
- Coupling: Friction coupling
- Current Rating: 3A max
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 feet altitude
- Insulator Resistance: 5000 megohms minimum
- Thermal Shock: -55°C to +125°C
- Physical Shock: 50 G’s for 6 milliseconds
- Vibration: 20G’s from 10-2000 Hz for 12 hours
- Durability: 500 mating cycles
- Moisture Resistance: Insulator resistance > 100 megohms, salt spray for 48 hours
Buy the Cannon Series MICRO Micro Connector: MDM-15PSB-A174
Order the Cannon MDM-15PSB-A174 micro connector online today to benefit from superior build quality, durable aluminum shell, and gold-plated contacts ensuring reliable electrical performance. Designed for precise electronic assemblies, it features solder pot terminations for easy wiring with #26AWG wire, supporting 3A current capacity and high voltage withstandability. Ideal for high-altitude, thermal shock, vibration, and moisture resistance, this connector guarantees robust operation in critical industrial, aerospace, and electronic applications. Shop now to elevate your device reliability and assembly efficiency.
Buy Cannon MDM-15PSB-A174 micro connector now and experience unmatched reliability and high-performance electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM15PSBA174?
You can click on the BUY or RFQ button to purchase MDM15PSBA174 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM15PSBA174?
You can download the MDM15PSBA174 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM15PSBA174?
ITT CANNON
