ITT CANNON MS3108E16S5P circular connector
The circular connector with threaded coupling, designed for industrial and military applications, features a shell size of 16S and a contact arrangement of 168-5, with 3 solder cup contacts plated in hard silver. Made of aluminum alloy with olive drab chromate over cadmium plating, it offers IP65 protection, salt spray resistance for 500 hours, and operating temperature ranges from -55°C to +125°C. The connector is rated for 1600 Vrms test voltage, has a minimum air and creepage path of 1.4mm, and supports up to 500 mating cycles, ensuring durability and stability in demanding environments.
ITT CANNON MS3108E16S5P circular connector Specifications:
- Shell Size: 16S
- Contact Arrangement: 168-5
- Number of contacts: 3 contacts
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Insulator Resistance: > 1000 MO
- Test Voltage: 1600 Vrms
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 times
- Coupling Torque: Closing maximum 5.5 Nm, opening minimum 0.46 Nm
- Wire Stripping Length: 6.2 mm
- Air and Creepage Paths: Minimum 1.4mm

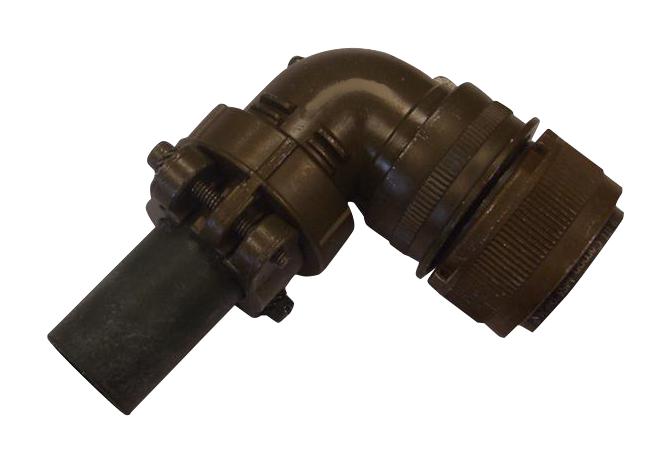

Buy the Cannon MS3108E16S – Reliable Circular Connector for Industrial Applications
Enhance your projects with this durable circular connector designed for harsh environments. With IP65 protection, salt spray resistance, and a robust aluminum shell, it ensures secure connections and long-lasting performance. Suitable for industrial, military, and automation applications, this connector supports 500 mating cycles and features solder cup contacts plated in hard silver for reliable electrical connection. Its operating temperature range from -55°C to +125°C makes it ideal for challenging conditions. Order online today and upgrade your connection solutions effortlessly.
Buy Cannon MS3108E16S now and experience unmatched reliability and performance for demanding industrial and military environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3108E16S5P?
You can click on the BUY or RFQ button to purchase MS3108E16S5P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3108E16S5P?
You can download the MS3108E16S5P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3108E16S5P?
ITT CANNON
