ITT CANNON TR1208RFS1NB industrial connector
The Cannon Trident Series TR1208RFS1NB is a durable, IP65-sealed receptacle connector designed for industrial applications. Crafted from black nylon with nickel-plated copper alloy coupling rings and stainless steel bayonet pins, it offers reliable electrical connections with a contact current of up to 13A. Rated for operating voltages up to 250 V ac rms and capable of withstanding temperatures between -55°C and +105°C, it supports up to 500 mating cycles. Its rugged construction ensures long-lasting performance in harsh environments, making it ideal for automation, machinery, and industrial wiring systems.
ITT CANNON TR1208RFS1NB industrial connector Specifications:
- Shell Size: 12
- Number of Contacts: 08
- Contact Type: Female contacts accepted
- Material: Black Nylon body, Nickel-plated Copper alloy coupling ring, Stainless steel bayonet pins
- Operating Voltage: Up to 250 V ac rms, up to 380 V ac rms (Size 1807 only)
- Contact Current Rating: Up to 13A
- Temperature Range: -55°C to +105°C
- Insulation Resistance: 5000 Megaohms at 500 V dc
- Durability: Up to 500 mating cycles
- Sealing: Up to IP65
- Flammability Rating: UL94-VO
- Mounting: Standard
- Color: Black

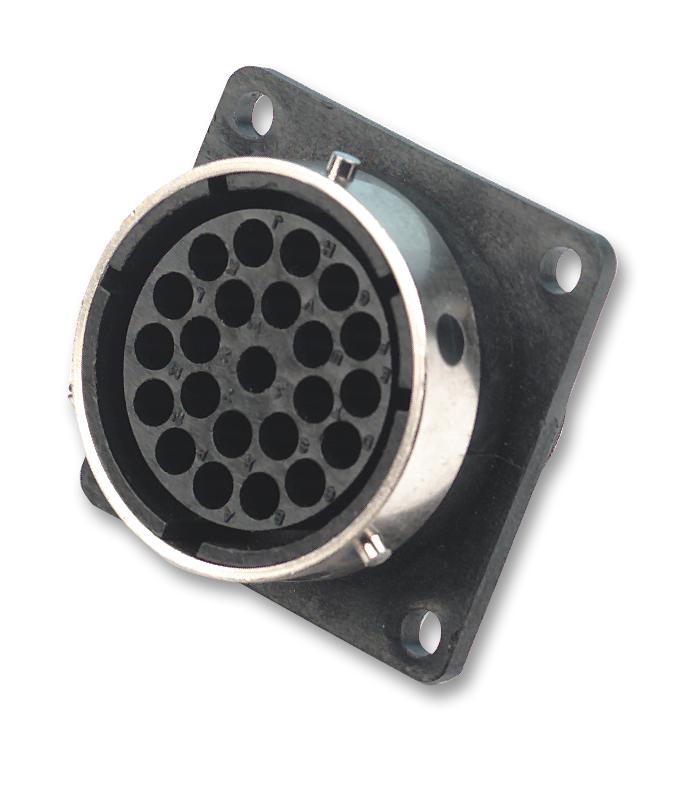

Buy the Cannon Series Trident IP65 Receptacle: TR1208RFS1NB
Discover the Cannon Trident Series TR1208RFS1NB industrial connector, engineered for rugged environments. With IP65 sealing, stainless steel pins, and a durable nylon body, this receptacle provides reliable power connections up to 250 volts and 13 amps. Rated for -55°C to +105°C temperatures, it ensures long-lasting performance through 500 mating cycles. Ideal for automation, manufacturing, and industrial wiring systems, this connector combines strength, safety, and versatility to meet the demands of demanding industrial applications.
Get Cannon TR1208RFS1NB today—built for industrial durability and reliable power connections in harsh environments.
